| Ambient Air Temperature For Operation | -25-70 ?C |
| Ambient Air Temperature For Storage | -40-85 ?C |
| Analog/Digital Conversion | sigma delta 16 bits |
| Analogue Input Number | 8 |
| Analogue Input Resolution | 15 bits + sign |
| Analogue Input Type | voltage +/- 1.28 V || voltage +/- 160 mV || voltage +/- 320 mV || voltage +/- 40 mV || voltage +/- 640 mV || voltage +/- 80 mV || resistor 400 Ohm 2 wires || resistor 400 Ohm 3 wires || resistor 400 Ohm 4 wires || resistor 4000 Ohm 2 wires || resistor 4000 Ohm 3 wires || resistor 4000 Ohm 4 wires || temperature probe -100...+260 ?C Cu 10 || temperature probe -100...+450 ?C Pt 100 UL/JIS || temperature probe -100...+450 ?C Pt 1000 UL/JIS || temperature probe -200...+850 ?C Pt 100 IEC || temperature probe -200...+850 ?C Pt 1000 IEC || temperature probe -60...+180 ?C Ni 100 || temperature probe -60...+180 ?C Ni 1000 || thermocouple +130...+1820 ?C thermocouple B || thermocouple +270...+1300 ?C thermocouple N || thermocouple -200...+600 ?C thermocouple U || thermocouple -200...+760 ?C thermocouple J || thermocouple -200...+900 ?C thermocouple L || thermocouple -270...+1000 ?C thermocouple E || thermocouple -270...+1370 ?C thermocouple K || thermocouple -270...+400 ?C thermocouple T || thermocouple -50...+1769 ?C thermocouple R || thermocouple -50...+1769 ?C thermocouple S |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI0702004EN |
| Cold Junction Compensation | external by Pt100 probe |
| Common Mode Rejection | 120 dB 50/60 Hz |
| Current Consumption | 150 mA 3.3 V DC |
| Detection Type | open circuit Cu 10 || open circuit Ni 100 || open circuit Ni 1000 || open circuit Pt 100 || open circuit Pt 1000 || open circuit thermocouple B || open circuit thermocouple E || open circuit thermocouple J || open circuit thermocouple K || open circuit thermocouple L || open circuit thermocouple N || open circuit thermocouple R || open circuit thermocouple S || open circuit thermocouple T || open circuit thermocouple U |
| Differential Mode Rejection | 60 dB 50/60 Hz |
| Directives | 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility |
| Electrical Connection | 40 ways 2 connectors |
| Environmental Characteristic | gas resistant class Gx || gas resistant class 3C4 || dust resistant class 3S4 || sand resistant class 3S4 || salt resistant level 2 || mold growth resistant class 3B2 || fungal spore resistant class 3B2 || hazardous location class I division 2 |
| Environmental Disclosure | ENVPEP070204EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Input Level | low level |
| Input Output Isolation | isolated |
| Ip Degree Of Protection | IP20 |
| Maximum Wiring Resistance | 20 Ohm 2 wires Cu 10 || 20 Ohm 2 wires Ni 100 || 20 Ohm 2 wires Pt 100 || 20 Ohm 3 wires Cu 10 || 20 Ohm 3 wires Ni 100 || 20 Ohm 3 wires Pt 100 || 200 Ohm 2 wires Ni 1000 || 200 Ohm 2 wires Pt 1000 || 200 Ohm 3 wires Ni 1000 || 200 Ohm 3 wires Pt 1000 || 50 Ohm 4 wires Cu 10 || 50 Ohm 4 wires Ni 100 || 50 Ohm 4 wires Pt 100 || 500 Ohm 4 wires Ni 1000 || 500 Ohm 4 wires Pt 1000 |
| Measurement Resolution | 0.1 ?C Cu 10 || 0.1 ?C Ni 100 || 0.1 ?C Ni 1000 || 0.1 ?C Pt 100 || 0.1 ?C Pt 1000 || 0.1 ?C thermocouple B || 0.1 ?C thermocouple E || 0.1 ?C thermocouple J || 0.1 ?C thermocouple K || 0.1 ?C thermocouple L || 0.1 ?C thermocouple N || 0.1 ?C thermocouple R || 0.1 ?C thermocouple S || 0.1 ?C thermocouple T || 0.1 ?C thermocouple U || 1280/2exp14 mV +/- 1.28 V || 160/2exp14 mV +/- 160 mV || 320/2exp14 mV +/- 320 mV || 40/2exp14 mV +/- 40 mV || 12.5 mOhm 400 Ohm || 125 mOhm 4000 Ohm || 640/2exp14 mV +/- 640 mV || 80/2exp14 mV +/- 80 mV |
| Mercury Free | Yes |
| Net Weight | 0.165 kg |
| Nominal Read Cycle Time | 400 ms with temperature probe || 200 ms with thermocouple |
| Operating Altitude | 0...6561.68 ft (0...2000 m) || 2000...5000 m with derating factor |
| Permitted Overload On Inputs | +/- 7.5 V +/- 1.28 V || +/- 7.5 V +/- 160 mV || +/- 7.5 V +/- 320 mV || +/- 7.5 V +/- 40 mV || +/- 7.5 V +/- 640 mV || +/- 7.5 V +/- 80 mV |
| Product Certifications | CSA || UL || IEC-Ex || CE || Merchant Navy || RCM || ATEX || EAC |

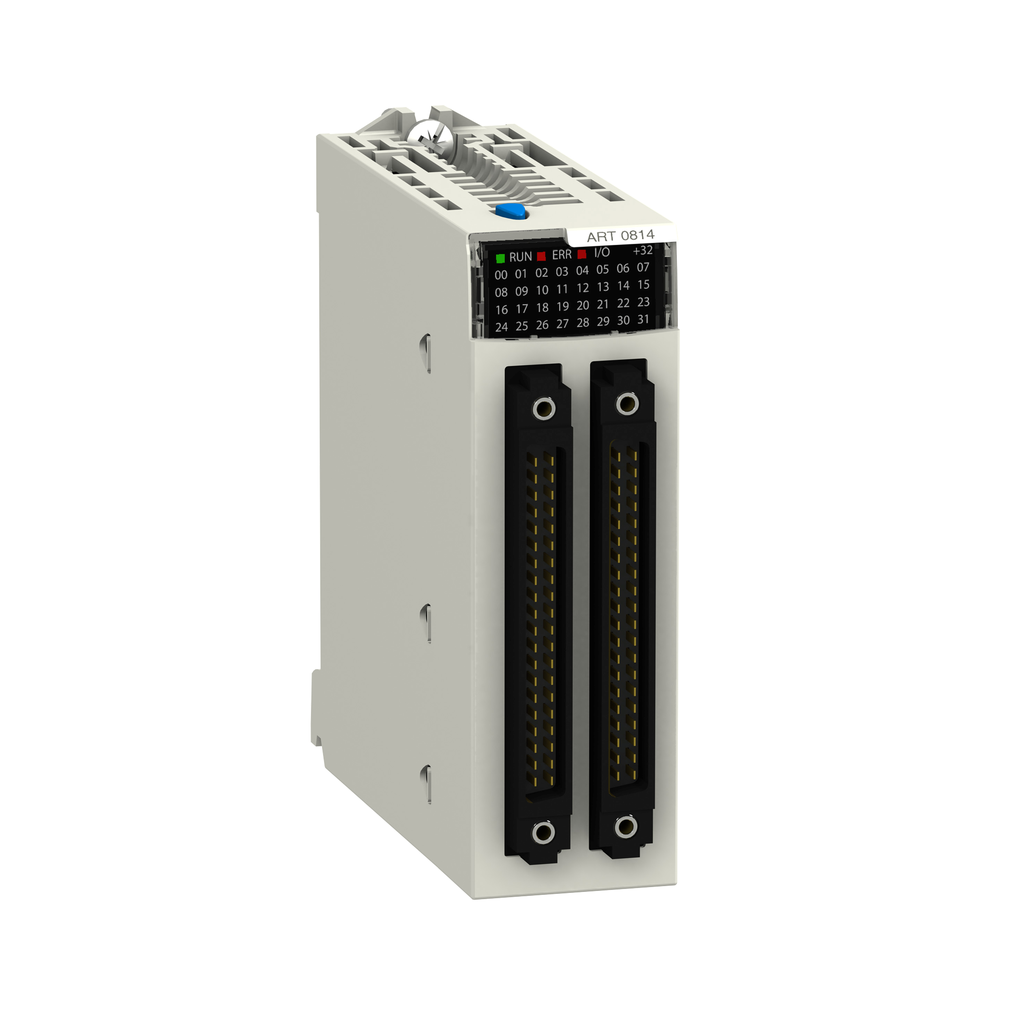

| Product Or Component Type | analog input module |
| Product Specific Application | for severe environments |
| Protective Treatment | conformal coating |
| Range Of Product | Modicon X80 |
| Reach Free Of Svhc | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Recalibration | internal |
| Relative Humidity | 5-95 % 55-55 ?C without condensation |
| Rohs Exemption Information | Yes |
| Shock Resistance | 30 gn |
| Standards | EN 61131-2 || EN 61000-6-4 || EN 61000-6-2 || EN 61010-2-201 |
| Status Led | 1 LED (Green) RUN || 1 LED per channel (Green) channel diagnostic || 1 LED (Red) ERR || 1 LED (Red) I/O |
| Sustainable Offer Status | Green Premium product |
| Type Of Filter | first order digital filtering |
| Vibration Resistance | 3 gn |
| Warranty | 18 months |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
