| Ambient Air Temperature For Operation | -0-60 ?C |
| Ambient Air Temperature For Storage | -40-85 ?C |
| Bus Type | bus X across the remote backplane |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI0702004EN |
| Communication Network Type | IPv4 (internet protocol) |
| Communication Port Protocol | EtherNet/IP |
| Communication Service | Ethernet/IP adapter || RSTP (Ring topology support) || Ethernet RIO network || Quality of Service (QoS) || CIP Explicit messaging (server) || Modbus TCP server for module diagnostics || DHCP client || TFTP client || FTP client || FDR client || SNTP client || SNMP agent |
| Connector Type | 3 RJ45 |
| Current Consumption | 1200 mA |
| Cybersecurity | enable/disable communication ports || Syslog protocol support |
| Data Recording | 10 ms time stamps |
| Depth | 87.5 mm |

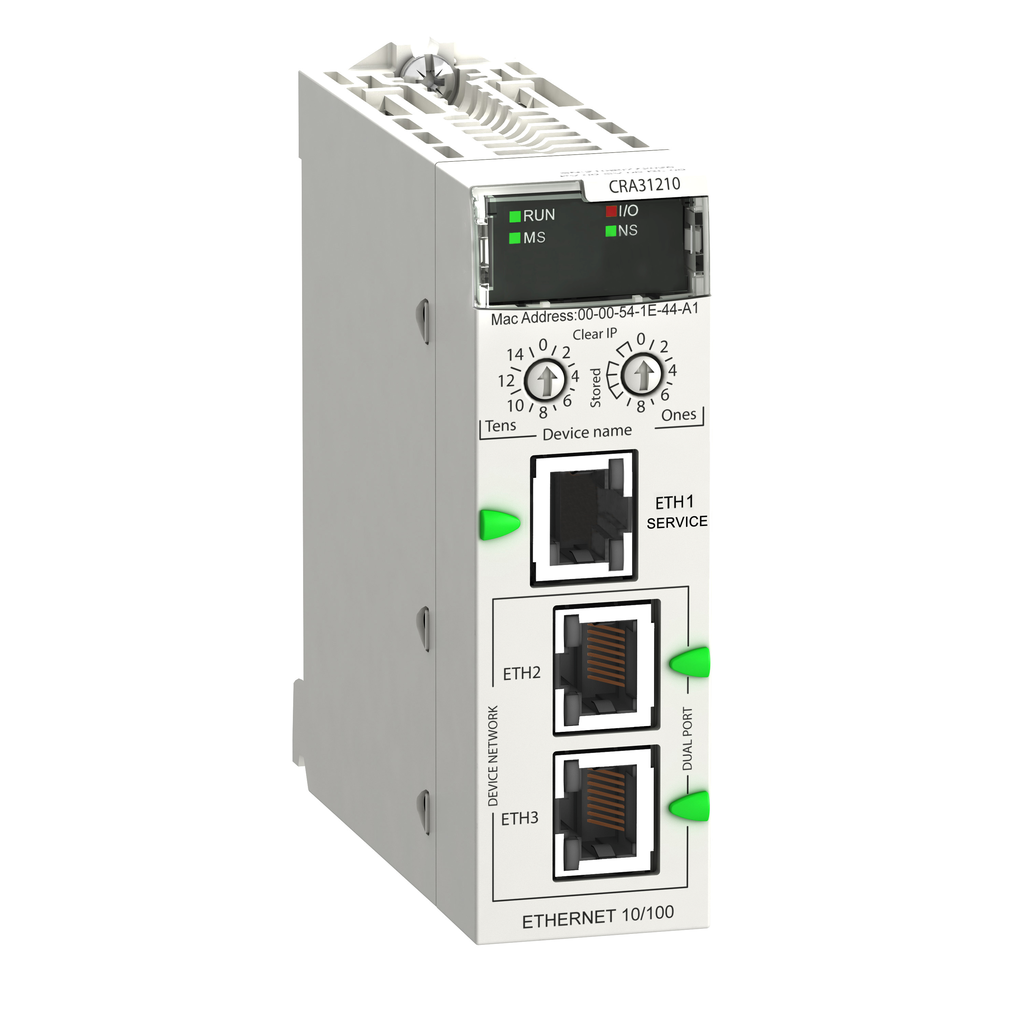

| Device Application | X80 Ethernet RIO drop adaptor |
| Directives | 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility |
| Environmental Characteristic | standard environment |
| Environmental Disclosure | ENVPEP070204EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Exchange Mode | half duplex, full duplex, autonegotiation, auto MDIX |
| Fixing Mode | by screws |
| Function Available | CCOTF (configuration change on the fly) || input data is collected and published to the remote I/O head adaptor || output modules are updated with the data received from remote I/O head adaptor || diagnostics for remote I/O devices (Device DDT) || port mirroring || system time stamping || non-interfering type 1 || I/O extension rack |
| Height | 100 mm |
| Input Voltage | 3.3 V DC |
| Integrated Connection Type | 1 port service or distributed equipment || 2 port Ethernet RIO Network (RSTP) |
| Ip Degree Of Protection | IP20 |
| Local Signalling | for module active (RUN) 1 LED (green) || for module error (ERR) 1 LED (red) || for module status (Mod Status) 1 LED (green/red) || for network communication status (Net Status) 1 LED (green/red) || for Ethernet link diagnostics (STS) 1 LED (green) |
| Maximum Altitude Transport | 3000 m |
| Mercury Free, Reach Free Of Svhc, Rohs Exemption Information | Yes |
| Module Format | standard |
| Mounting Mode | rack-mounted |
| Net Weight | 0.225 kg |
| Number Of Port | 3 |
| Port Ethernet | 10/100BASE-TX |
| Product Certifications | CE || UL || CSA || RCM || EAC || Merchant Navy |
| Product Compatibility | 0-1024 discrete channel || 0-256 analog channel || counter module || time-stamping module || SSI encoder interface module || motion control module || frequency input module || AS-Interface module || Serial Line module || fiber converter modules |
| Product Or Component Type | I/O expansion module |
| Product Specific Application | for remote I/O modules |
| Range Compatibility | Modicon M580 || Modicon Quantum |
| Range Of Product | Modicon X80 |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Relative Humidity | 95-95 % without condensation |
| Standards | EN/IEC 61131-2 || EN/IEC 61010-2-201 || UL 61010-2-201 || CSA C22.2 No 61010-2-201 || IACS E10 || EN/IEC 61000-6-5 || EN/IEC 61850-3 |
| Sustainable Offer Status | Green Premium product |
| Topology | ring |
| Transmission Rate | 10/100 Mbit/s |
| Warranty | 18 months |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Width | 32 mm |
