| ARRA Compliant, Buy American Compliant | Y |
| Body Material | ABS |
| Color | Black |

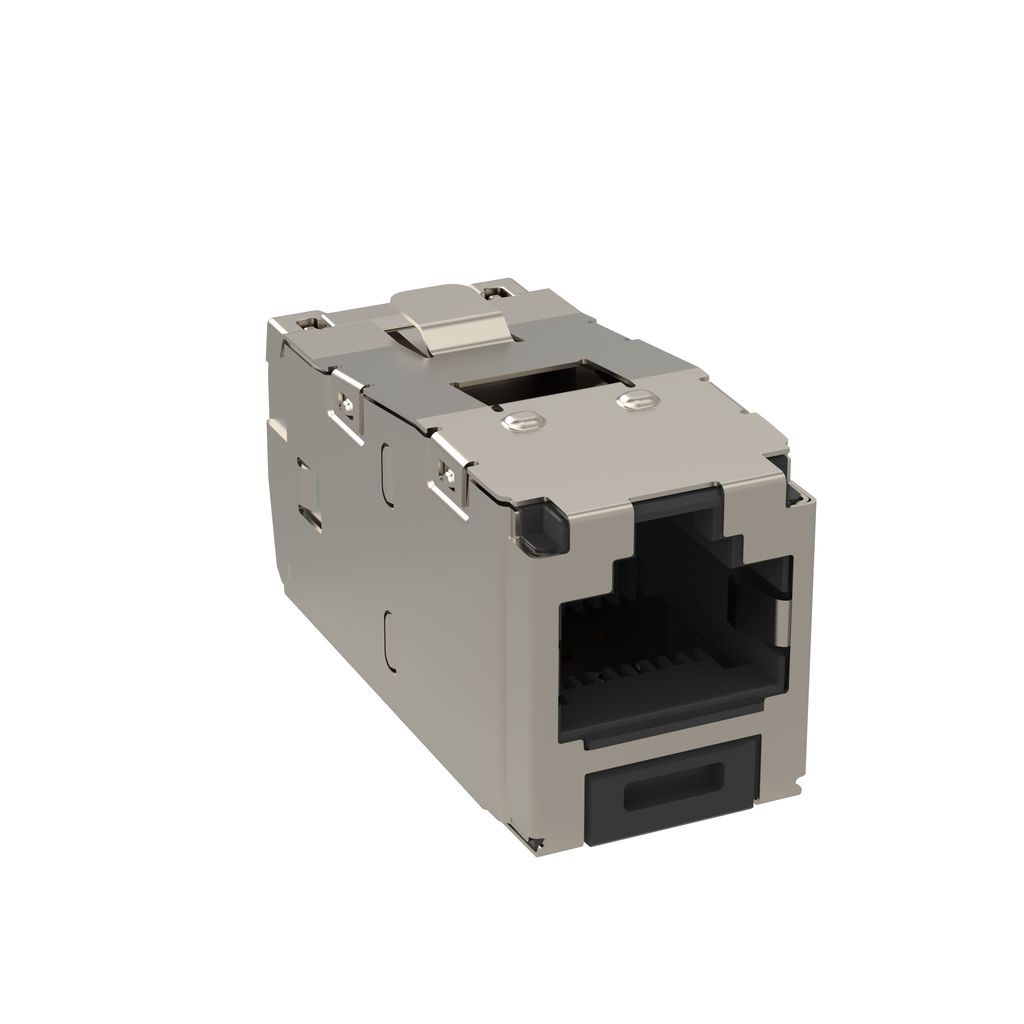

| Connector Type, Product Type | Jack Module |
| Contact Material | Plated Phosphor Bronze |
| Country of Origin 2Digit | CR |
| EAN, GTIN Package | 00074983035632 |
| GTIN Carton | 50074983035637 |
| Hazardous Material Flag | N |
| Maximum Operating Temperature (?C) | 65 |
| Maximum Operating Temperature (?F) | 149 |
| Maximum Storage Temperature (?C) | 70 |
| Maximum Storage Temperature (?F) | 158 |
| Mercury Content Indicator | No |
| Min Order Qty, Std Ctn Qty | 50 |
| Min. Order UOM, Std. Pkg. UOM | Piece |
| Minimum Operating Temperature (?C) | -10 |
| Minimum Operating Temperature (?F) | 14 |
| Minimum Storage Temperature (?C), Minimum Storage Temperature (?F) | -40 |
| Module Type | Mini-Com? |
| Note | CJS688TGY replaces CJS688TG |
| Overall Depth (In.), Overall Length (In.) | 1.5 |
| Overall Depth (mm), Overall Length (mm) | 38.1 |
| Overall Height (In.) | 0.74 |
| Overall Height (mm) | 18.8 |
| Overall Width (In.) | 0.62 |
| Overall Width (mm) | 15.7 |
| Pallet Quantity | 16,800 |
| Pallet Volume | 53.912136 |
| Pallet Weight | 740.8800 |
| Performance Level | Category 6 |
| Product Segment | EDI-ENT |
| REACH Status | False |
| Resistance Properties | Heat-Resistant |
| RoHS Compliant | Compliant |
| Shield Type | Shielded (STP) |
| Standard Carton Volume Ft3 | 0.1605 |
| Standard Carton Weight Pounds | 2.2050 |
| Standard Package Volume Ft3 | 0.0032 |
| Standard Package Weight Pounds | 0.0441 |
| Standards Met | Exceeds ANSI/TIA-568-C.2 Category 6 and ISO 11801 Class E Channel and Component Requirements at Swept Frequencies up to 250 MHz, Complies with ANSI/TIA-1096A, Meets IEC 60603-7 and IEC 60512-99-001, Rated for 2500 Cycles with IEEE 802.3af / 802.3at and Proposed 802.3bt Type 3 and Type 4 for up to 100W, UL 1863, UL 1863, UL 2043 and RoHS Compliant |
| Std Carton Height In, Std Package Length In | 3.6 |
| Std Carton Height MM, Std Package Length MM | 91.44 |
| Std Carton Length In | 10.55 |
| Std Carton Length MM | 267.97 |
| Std Carton Width In | 7.4 |
| Std Carton Width MM | 187.96 |
| Std Package Height In | .85 |
| Std Package Height MM | 21.59 |
| Std Package Width In | 2.3 |
| Std Package Width MM | 58.42 |
| Std. Pkg. Qty. | 1 |
| Sub Brand | Pan-Net? |
| Termination Style | TG Style |
| UOM EA PK | EA |
| UPC | 07498303563 |
| Wiring Scheme | T568A/T568B |
