| ARRA Compliant, Buy American Compliant | Y |
| Barrel Length (In.) | 0.38 |
| Barrel Length (mm) | 9.6 |
| Barrel Type | Funnel |
| Base Material | Copper |
| Color Code | Blue |
| Country of Origin 2Digit | MX |
| EAN, GTIN Package | 00074983281893 |
| Finish/Coating | Tin-Plated |
| Flammability Rating | UL587-H |
| For Use With | CT-100A, CT-200, CT-600A (CT-570CH), CT-1570, CT-2500 (CT-2570CH), CT-160, CT-255 |
| GTIN Carton | 50074983281898 |
| Hazardous Material Flag | N |
| Insulation Diameter (In.), Maximum Wire Insulation Diameter (In.) | 0.17 |
| Insulation Diameter (mm), Maximum Wire Insulation Diameter (mm) | 4.3 |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG SOL), Maximum Copper Conductor Size (AWG STR), Maximum Copper Conductor Size (AWG), Maximum Wire Size (AWG) | #14 |
| Maximum Metric Conductor Size (mm?) | 2.5 |
| Maximum Operating Temperature (?C), Minimum Operating Temperature (?C) | 105 |
| Maximum Operating Temperature (?F), Minimum Operating Temperature (?F) | 221 |
| Maximum Voltage (kV) | 0.6 |
| Maximum Voltage (V) | 600 |
| Mercury Content Indicator | No |
| Min Order Qty, Std Ctn Qty | 500 |
| Min. Order UOM, Std. Pkg. UOM | Piece |
| Minimum Copper Conductor Size (AWG SOL), Minimum Copper Conductor Size (AWG STR), Minimum Copper Conductor Size (AWG), Minimum Wire Size (AWG) | #16 |
| Minimum Metric Conductor Size (mm?) | 1.5 |
| Minimum Wire Insulation Diameter (In.) | 0.15 |
| Minimum Wire Insulation Diameter (mm) | 3.8 |
| Outer Diameter (In.), Overall Width (In.), Tongue Width (In.), Wire Strip Length (In.) | 0.31 |
| Outer Diameter (mm), Overall Width (mm), Stud Hole Size (mm), Tongue Width (mm), Wire Strip Length (mm) | 7.9 |
| Overall Length (In.) | 0.92 |
| Overall Length (mm) | 23.4 |
| Packaging Type | Bag |
| Pallet Quantity | 0 |
| Pallet Volume | 0.000000 |
| Pallet Weight | 0.0000 |
| Product Segment | IEI |

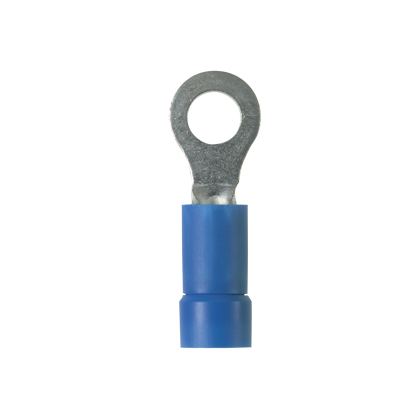

| Product Type | Ring Terminal |
| REACH Status | False |
| RoHS Compliant | Compliant |
| Seam Type | Butted |
| Standard Carton Volume Ft3 | 0.1031 |
| Standard Carton Weight Pounds | 1.0000 |
| Standard Package Volume Ft3 | 0.0103 |
| Standard Package Weight Pounds | 0.1000 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Std Carton Height In, Std Carton Width In | 4.4 |
| Std Carton Height MM, Std Carton Width MM | 111.76 |
| Std Carton Length In | 9.2 |
| Std Carton Length MM | 233.68 |
| Std Package Height In | .05 |
| Std Package Height MM | 1.27 |
| Std Package Length In | 6.75 |
| Std Package Length MM | 171.45 |
| Std Package Width In | 4.5 |
| Std Package Width MM | 114.3 |
| Std. Pkg. Qty. | 50 |
| Stud Hole Size (In.) | 0.312 |
| Stud Size | #6 |
| Sub Brand | StrongHold? |
| Tongue Length (In.) | 0.46 |
| Tongue Length (mm) | 11.7 |
| Tongue Thickness (In.) | 0.03 |
| Tongue Thickness (mm) | 0.8 |
| UOM EA PK | PK |
| UPC | 07498328189 |
