| [Ipk] Rated Peak Withstand Current | 5.78 kA |
| [Uimp] Rated Impulse Withstand Voltage | 10 kV |
| Ambient Air Temperature For Operation | 40-40 ?C |
| Average Ambient Air Temperature For Operation | 30 ?C |
| Box Number | 22M |
| Continuous Thermal Current Rating Factor | 1334 16.6 % || 1662 25 % || 3433 50 % || 6384 75 % || 10516 100 % |
| Degree Of Protection | UL type 2 || UL type 3R, with 7400WS22M |
| Depth | 827 mm |
| Device Application | low voltage electrical distribution |
| Device Short Name | DOE 2016 |
| Efficiency | 98.89 % at 35 % load factor , 75.0 ?C |
| Electrical Connection | 4 Hole Nema Pad secondary 11.1 mm || 6 Hole Nema Pad sec - HO 11.1 mm || 2 Hole Nema Pad primary 11.1 mm |
| Height | 1031 mm |
| Inrush Current | 4717 A |
| Material | aluminium |
| Mounting Support | floor || floor, with 7400FMB || ceiling, with 7400CMB22M |
| Net Weight | 462.66 kg |
| Network Frequency | 60 Hz |
| Noise Level | 47 dB || 3 dB NEMA ST-20 |
| Number Of Mounting Holes | 13 mm |
| Percentage Impedance Voltage | 3.12 % |
| Percentage Reactance | 2.67 % |
| Phase | 3 phase |
| Primary Operational Current | 360.84-360.84 A 180.42 A 150 kVA |
| Primary Voltage | 208 V delta |

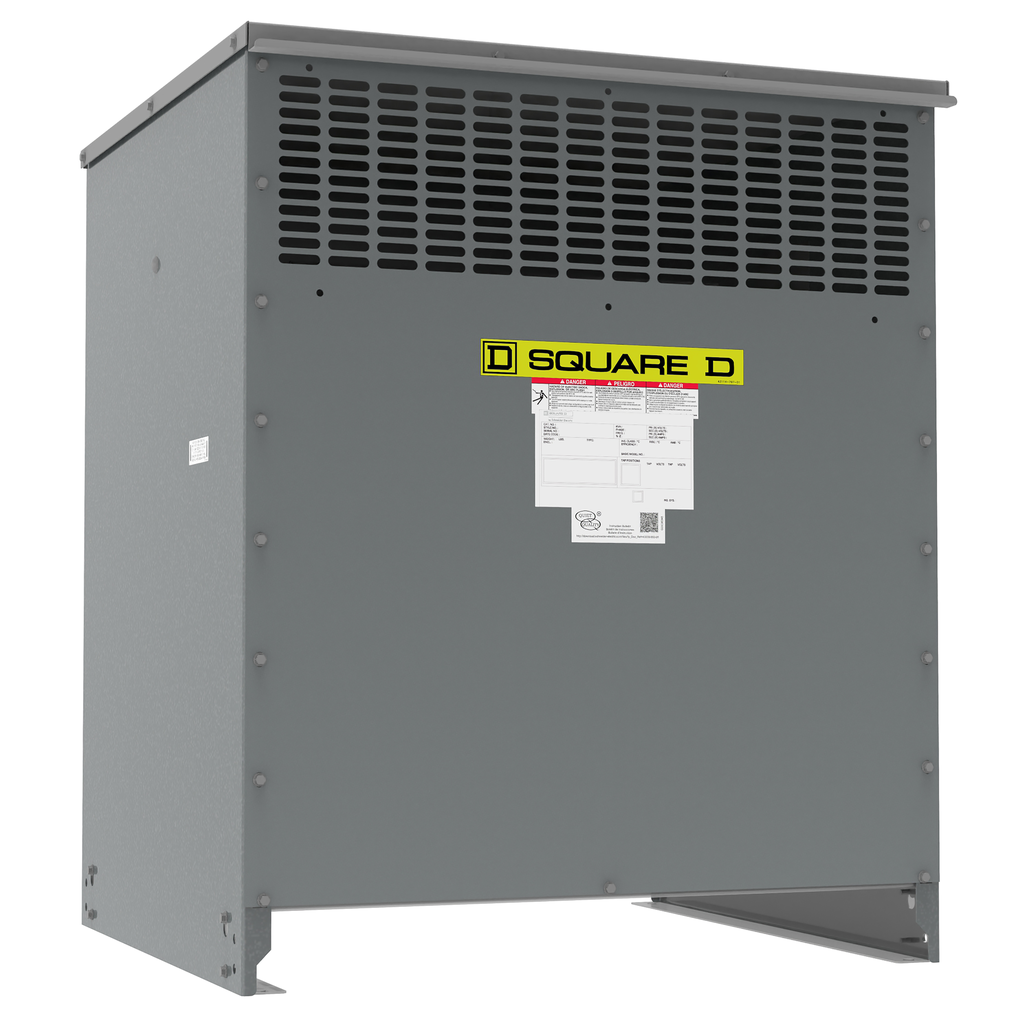

| Product Or Component Type | DOE 2016 energy efficient transformer |
| Range Of Product | Square D |
| Rated Operational Power In Va | 150 kVA |
| Secondary Voltage | 480Y/277 V |
| Standards | UL 1561 || CSA C22.2 No 47 || NEMA ST-20 |
| Tap Loss | 314 no load (core loss) || 2768 load loss (coil loss) |
| Temperature Rise | 150 ?C || 220 ?C insulated |
| Transformer Type | energy efficient |
| Type Of Cooling | natural convection |
| Width | 855 mm |
| X/R Ratio | 1.90 |
