Attributes
| Key ^ | Value |
|---|---|
| [Ics] Rated Service Breaking Capacity | 25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2 |
| [Ue] Rated Operational Voltage | 600 V AC 50/60 Hz IEC 60947-3 |
| [Ui] Rated Insulation Voltage | 750 V IEC 60947-2 |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV IEC 60947-2 |
| Ambient Air Temperature For Operation | -2-70 ?C |
| Ambient Air Temperature For Storage | -50-85 ?C |
| Awg Gauge | AWG 3/0...350 kcmil aluminium/copper terminals |
| Breaking Capacity | 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC |
| Breaking Capacity Code | D |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1311008 |
| Communication Interface | Modbus || Ethernet |
| Continuous Current Rating | 80 % |
| Control Type | toggle |
| Depth | 86 mm |
| Device Application | distribution |
| Electrical Connection | lugs line || lugs load |
| Environmental Disclosure | ENVPEP1311008EN |
| Eu Rohs Directive | Compliant |
| Height | 191 mm |
| Ip Degree Of Protection | front cover IP40 |
| Line Rated Current | 225-225 A |
| Local Signalling | switched off (OFF) 1 trip indicator green) |
| Long Time Pick-Up Adjustment Range | 0.25...1 x In |
| Magnetic Hold Current | 1125 A |
| Magnetic Tripping Current | 2250-2250 A |
| Mercury Free, Pvc Free, Rohs Exemption Information | Yes |
| Mounting Height | 4.5 in |
| Mounting Mode | unit mount lug) |
| Mounting Support | lug |
| Net Weight | 2.4 kg |
| Network Frequency | 50/60 Hz |
| Number Of Slots | 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in) |
| Phase Connection | ABC |
| Poles Description | 3P |
| Pollution Degree | 3 IEC 60947-1 |
| Product Certifications | UL || CSA || NOM |

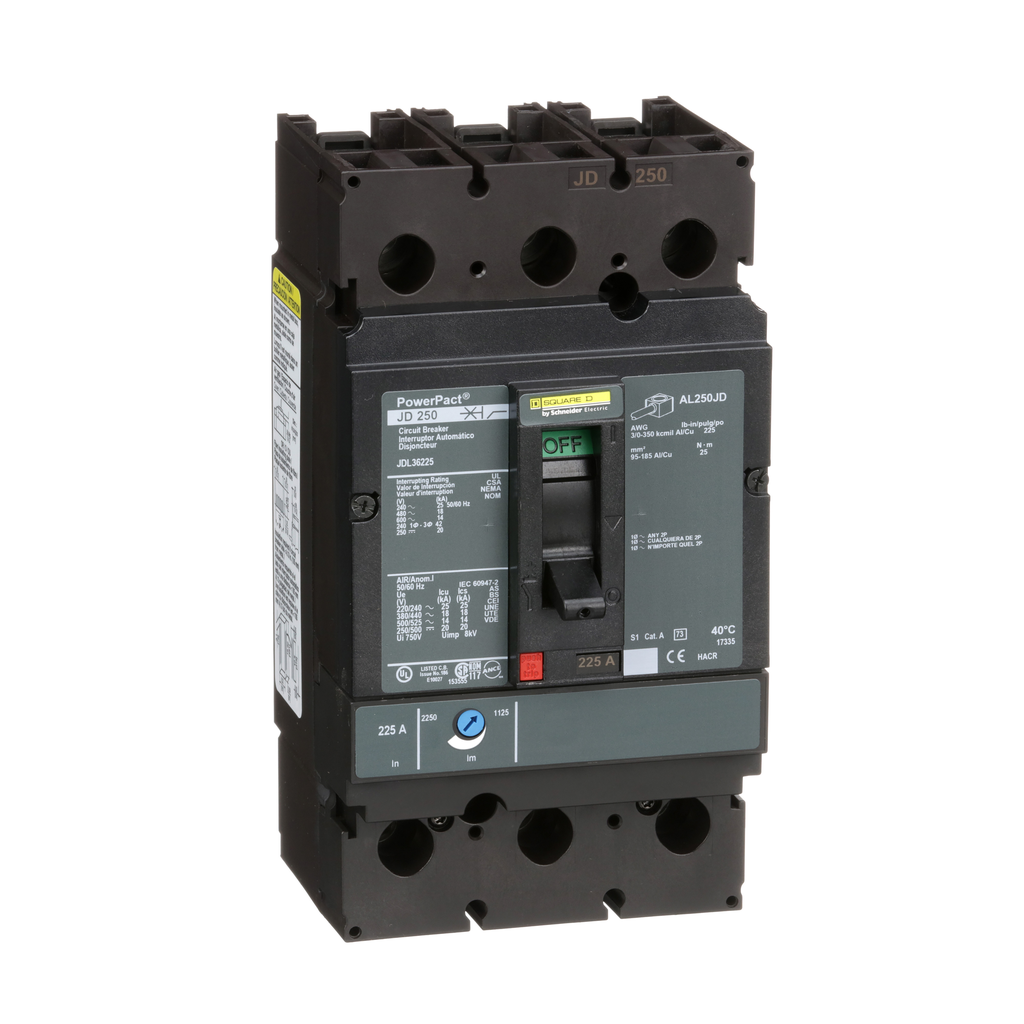

| Product Name | PowerPact J |
| Protection Type | overload protection || short-circuit protection |
| Quality Labels | CE |
| Range | PowerPact |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Standards | UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2 |
| Suitability For Isolation | yes IEC 60947-2 |
| Sustainable Offer Status | Green Premium product |
| Terminal Identifier | AL250JD |
| Tightening Torque | 25-25 N.m 95-185 mm? (AWG 3/0...350 kcmil) |
| Trip Unit Technology | thermal-magnetic |
| Utilisation Category | category A |
| Warranty | 18 months |
| Width | 104 mm |
| Wire Stripping Length | 25 mm |
