| [Icw] Rated Short-Time Withstand Current | 105 A 40 ?C - 10 s power circuit || 210 A 40 ?C - 1 s power circuit || 30 A 40 ?C - 10 min power circuit || 61 A 40 ?C - 1 min power circuit || 100 A - 1 s signalling circuit || 120 A - 500 ms signalling circuit || 140 A - 100 ms signalling circuit |
| [Ith] Conventional Free Air Thermal Current | 25 A 60 ?C power circuit || 10 A 60 ?C signalling circuit |
| [Uc] Control Circuit Voltage | 110 V AC 50/60 Hz |
| [Ui] Rated Insulation Voltage | power circuit 690 V IEC 60947-4-1 || power circuit 600 V CSA || power circuit 600 V UL || signalling circuit 690 V IEC 60947-1 || signalling circuit 600 V CSA || signalling circuit 600 V UL |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947 |
| Ambient Air Temperature For Operation | -40-60 ?C || 60-70 ?C with derating |
| Ambient Air Temperature For Storage | -60-80 ?C |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Auxiliary Contacts Type | mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1 |
| Average Impedance | 2.5 mOhm - Ith 25 A 50 Hz power circuit |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | ENVEOLI1501004 |
| Climatic Withstand | IACS E10 || IEC 60947-1 Annex Q category D |
| Coil Technology | without built-in suppressor module |
| Connections - Terminals | control circuit Faston terminals 1 || power circuit plug-in connector |
| Contactor Application | resistive load || motor control |
| Control Circuit Type | AC 50/60 Hz |
| Control Circuit Voltage Limits | 0.3...0.6 Uc -40-70 ?C drop-out AC 50/60 Hz || 0.8...1.1 Uc -40-60 ?C operational AC 50 Hz || 0.85...1.1 Uc -40-60 ?C operational AC 60 Hz || 1...1.1 Uc 60-70 ?C operational AC 50/60 Hz |
| Depth | 86 mm |

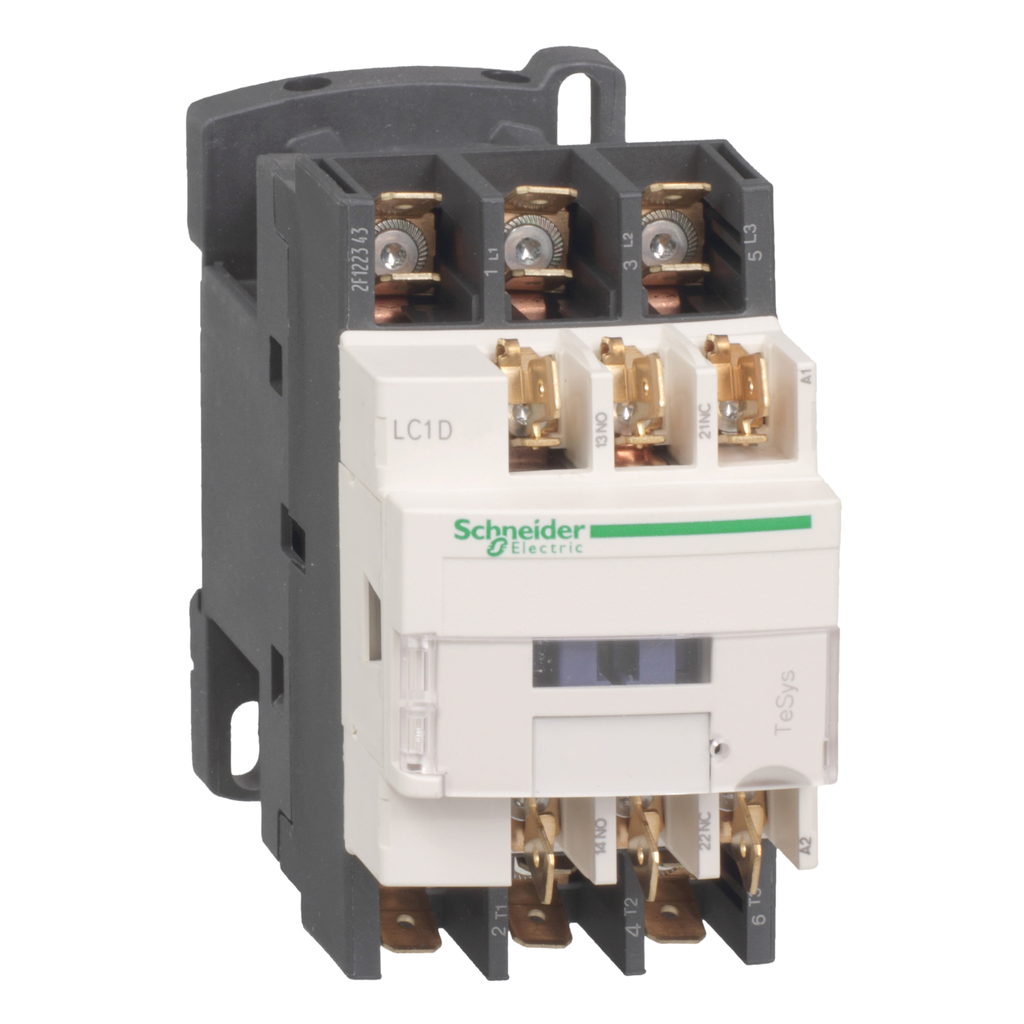

| Device Short Name | LC1D |
| Environmental Disclosure | ENVPEP1501004 |
| Eu Rohs Directive | Compliant |
| Fire Resistance | 850 ?C IEC 60695-2-1 |
| Heat Dissipation | 2-3 W 50/60 Hz |
| Height | 80 mm |
| Hold-In Power Consumption In Va | 7.5-7.5 VA 60 Hz 0.3 20 ?C) || 7-7 VA 50 Hz 0.3 20 ?C) |
| Inrush Power In Va | 70-70 VA 60 Hz 0.75 20 ?C) || 70-70 VA 50 Hz 0.75 20 ?C) |
| Insulation Resistance | > 10 MOhm signalling circuit |
| Ip Degree Of Protection | IP20 front face IEC 60529 |
| Irms Rated Making Capacity | 250 A 440 V power circuit IEC 60947 || 140 A AC signalling circuit IEC 60947-5-1 || 250 A DC signalling circuit IEC 60947-5-1 |
| Maximum Horse Power Rating | 1 hp 230/240 V at AC 50/60 Hz for 1 phase || 2 hp 200/208 V at AC 50/60 Hz for 3 phase || 2 hp 230/240 V at AC 50/60 Hz for 3 phase || 5 hp 460/480 V at AC 50/60 Hz for 3 phase || 7.5 hp 575/600 V at AC 50/60 Hz for 3 phase || 0.33 hp 115 V at AC 50/60 Hz for 1 phase |
| Maximum Operating Rate | 3600 cyc/h 60 ?C |
| Mechanical Durability | 15 Mcycles |
| Mechanical Robustness | vibrations contactor open2 Gn, 5...300 Hz || vibrations contactor closed4 Gn, 5...300 Hz || shocks contactor open10 Gn for 11 ms || shocks contactor closed15 Gn for 11 ms |
| Mercury Free, Pvc Free, Reach Free Of Svhc, Rohs Exemption Information, Toxic Heavy Metal Free | Yes |
| Minimum Switching Current | 5 mA signalling circuit |
| Minimum Switching Voltage | 17 V signalling circuit |
| Motor Power Kw | 2.2 kW 220...230 V AC 50/60 Hz AC-3) || 4 kW 380...400 V AC 50/60 Hz AC-3) || 4 kW 415...440 V AC 50/60 Hz AC-3) || 5.5 kW 500 V AC 50/60 Hz AC-3) || 5.5 kW 660...690 V AC 50/60 Hz AC-3) || 2.2 kW 400 V AC 50/60 Hz AC-4) || 2.2 kW 220...230 V AC 50/60 Hz AC-3e) || 4 kW 380...400 V AC 50/60 Hz AC-3e) || 4 kW 415...440 V AC 50/60 Hz AC-3e) || 5.5 kW 500 V AC 50/60 Hz AC-3e) || 5.5 kW 660...690 V AC 50/60 Hz AC-3e) |
| Mounting Support | rail || plate |
| Net Weight | 0.32 kg |
| Non-Overlap Time | 1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact |
| Operating Altitude | 0...9842.52 ft (0...3000 m) |
| Operating Time | 12...22 ms closing || 4...19 ms opening |
| Overvoltage Category | III |
| Pole Contact Composition | 3 NO |
| Poles Description | 3P |
| Pollution Degree | 3 |
| Power Dissipation Per Pole | 1.56 W AC-1 || 0.2 W AC-3 || 0.2 W AC-3e |
| Product Certifications | RINA || BV || GOST || UL || CSA || LROS (Lloyds register of shipping) || DNV || GL || CCC || UKCA |
| Product Name | TeSys D || TeSys Deca |
| Product Or Component Type | contactor |
| Protective Cover | with |
| Protective Treatment | TH IEC 60068-2-30 |
| Range | TeSys |
| Rated Breaking Capacity | 250 A 440 V power circuit IEC 60947 |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Safety Reliability Level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Signalling Circuit Frequency | 25...400 Hz |
| Standards | CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508 |
| Sustainable Offer Status | Green Premium product |
| Utilisation Category | AC-1 || AC-4 || AC-3 || AC-3e |
| Warranty | 18 months |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Width | 45 mm |
