| 9 Mm Pitches | 2 |
| [Uc] Control Circuit Voltage | 120 V AC 50/60 Hz || 24 V DC |
| Ambient Air Temperature For Operation | -25-50 ?C |
| Ambient Air Temperature For Storage | -40-85 ?C |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1305023 |
| Comb Busbar And Distribution Block Compatibility | top YES |
| Connections - Terminals | clamp terminal bottom) - 1 2.5-2.5 mm? AWG 14) - rigid || clamp terminal bottom) - 2 1.5-1.5 mm? AWG 16) - rigid |
| Control Type | standard |
| Depth | 68 mm |
| Device Short Name | MN |
| Environmental Disclosure | ENVPEP1305023 |
| Eu Rohs Directive | Compliant |
| Height | 82.5 mm |
| Local Signalling | action indicator |
| Mercury Free, Rohs Exemption Information | Yes |
| Mounting Mode | fixed |
| Mounting Support | DIN rail |
| Net Weight | 0.066 kg |
| Pollution Degree | 3 |
| Product Certifications | UR || CSA || PCT || UL |

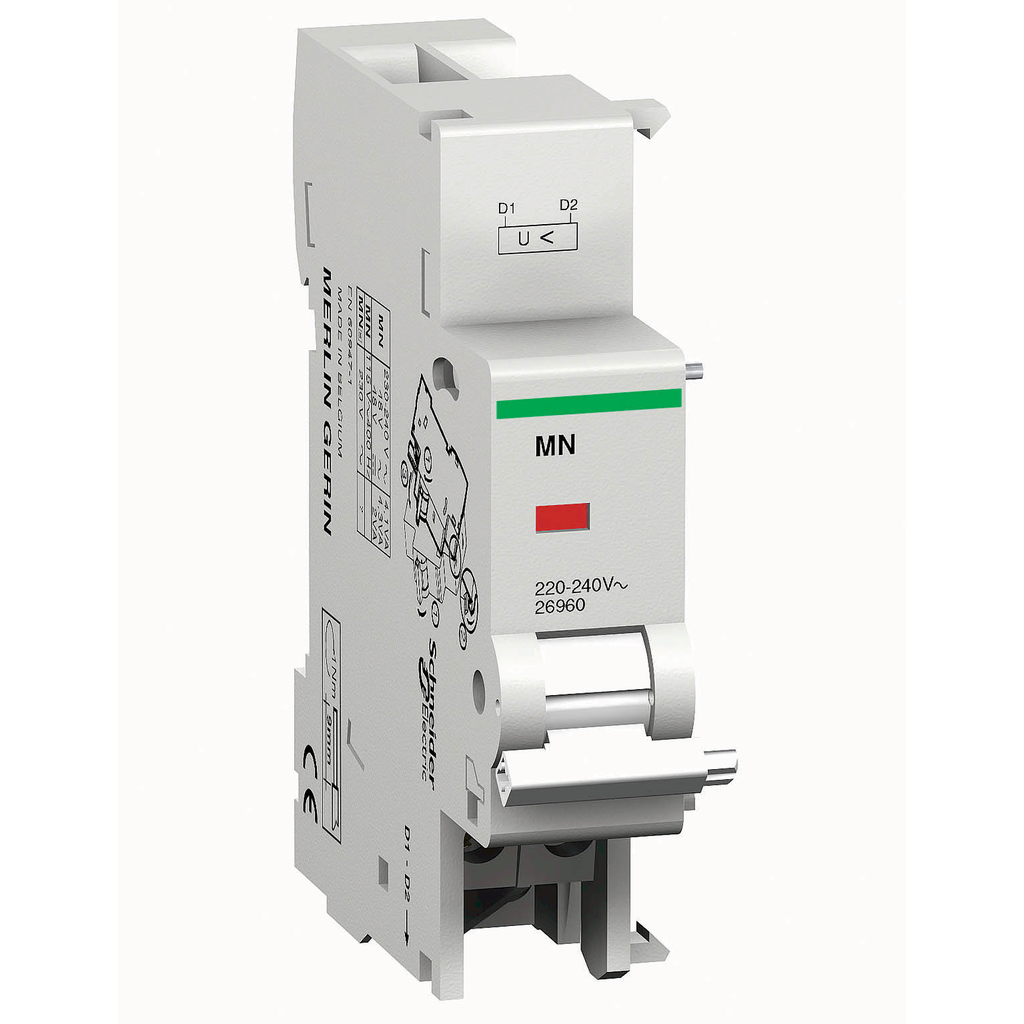

| Product Or Component Type | undervoltage release |
| Range | Multi 9 |
| Range Compatibility | Multi 9 C60 C60BP || Multi 9 C60 C60BPR || Multi 9 C60 C60SP || Multi 9 GFP GFP || Multi 9 C60H-DC C60H-DC |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Standards | EN 60947-2 || EN/IEC 60947-1 |
| Sustainable Offer Status | Green Premium product |
| Tightening Torque | 1-1 N.m bottom |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Width | 18 mm |
| Wire Stripping Length | 9 mm bottom |
