| Accessibility For Operation | front |
| Ambient Air Temperature For Operation | -40-80 ?C |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Color | Gray RAL 7035) |
| Device Application | multi-purpose |
| Device Composition | 1 body || 1 door || 1 lock |
| Device Short Name | PLM |
| Door Type | Solid |
| Electrical Insulation Class | class II |
| Enclosure Mounting | wall mounted |
| Enclosure Nominal Depth | 350 mm |
| Enclosure Nominal Height | 1056 mm |
| Enclosure Nominal Width | 852 mm |
| Environmental Disclosure | ENVPEP110118EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Fire Resistance | 960 ?C IEC 62208 |
| Ik Degree Of Protection | IK10 IEC 62262 |
| Ip Degree Of Protection | IP66 IEC 60529 |
| Lock Type | 4 points lock, handle with 5 mm double bar insert |
| Material | polyester reinforced with fibreglass |
| Mercury Free, Reach Free Of Svhc, Rohs Exemption Information | Yes |
| Mounting Plate Description | without mounting plate |
| Number Of Locks | 1 |
| Product Certifications | UL |

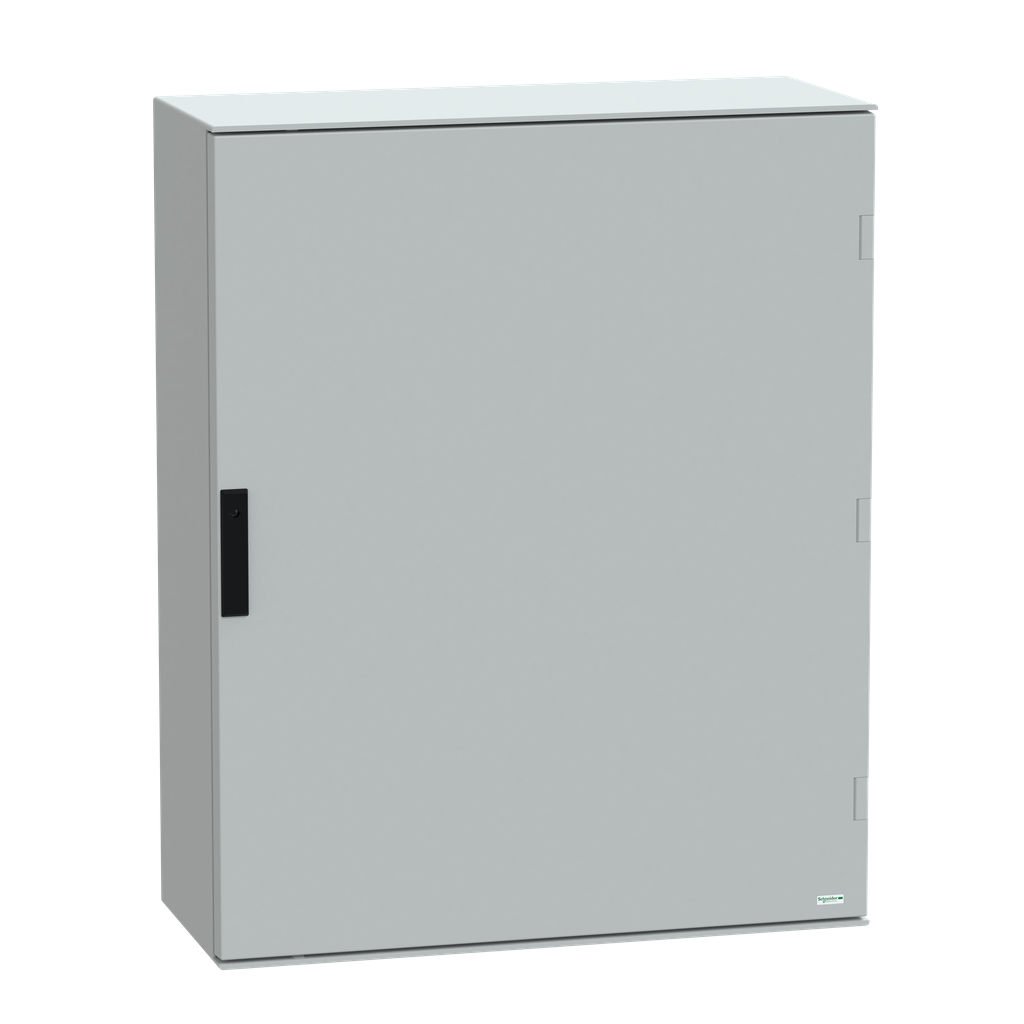

| Product Name | Thalassa PLM |
| Product Or Component Type | compact enclosure |
| Range | Thalassa |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Removable Parts | door by hinges |
| Standards | NEMA classification 13 || IEC 62208 || NEMA classification 4X |
| Sustainable Offer Status | Green Premium product |
