| [Ue] Rated Operational Voltage | 120/240 V AC || 240 V AC || 120 V AC || 48 V DC |
| Accessory / Separate Part Type | shunt trip 120/208/240 V AC |
| Ambient Air Temperature For Operation | 40 ?C |
| Awg Gauge | AWG 8...AWG 2 copper or aluminium |
| Breaking Capacity | 10 kA 120/240 V AC 50/60 Hz || 10 kA 240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz || 5 kA 48 V DC |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circuit Breaker Application | HACR rated |
| Circuit Breaker Type | standard |
| Depth | 74 mm |
| Electrical Connection | box lugs |
| Eu Rohs Directive | Compliant |
| Halogen Content Performance | Halogen free product |
| Height | 79 mm |
| Line Rated Current | 50 A |
| Mercury Free, Rohs Exemption Information | Yes |
| Mounting Mode | plug-in |
| Net Weight | 0.531 kg |
| Number Of Spaces Required | 4 |
| Poles Description | 3P |
| Product Certifications | UL Listed || CSA |

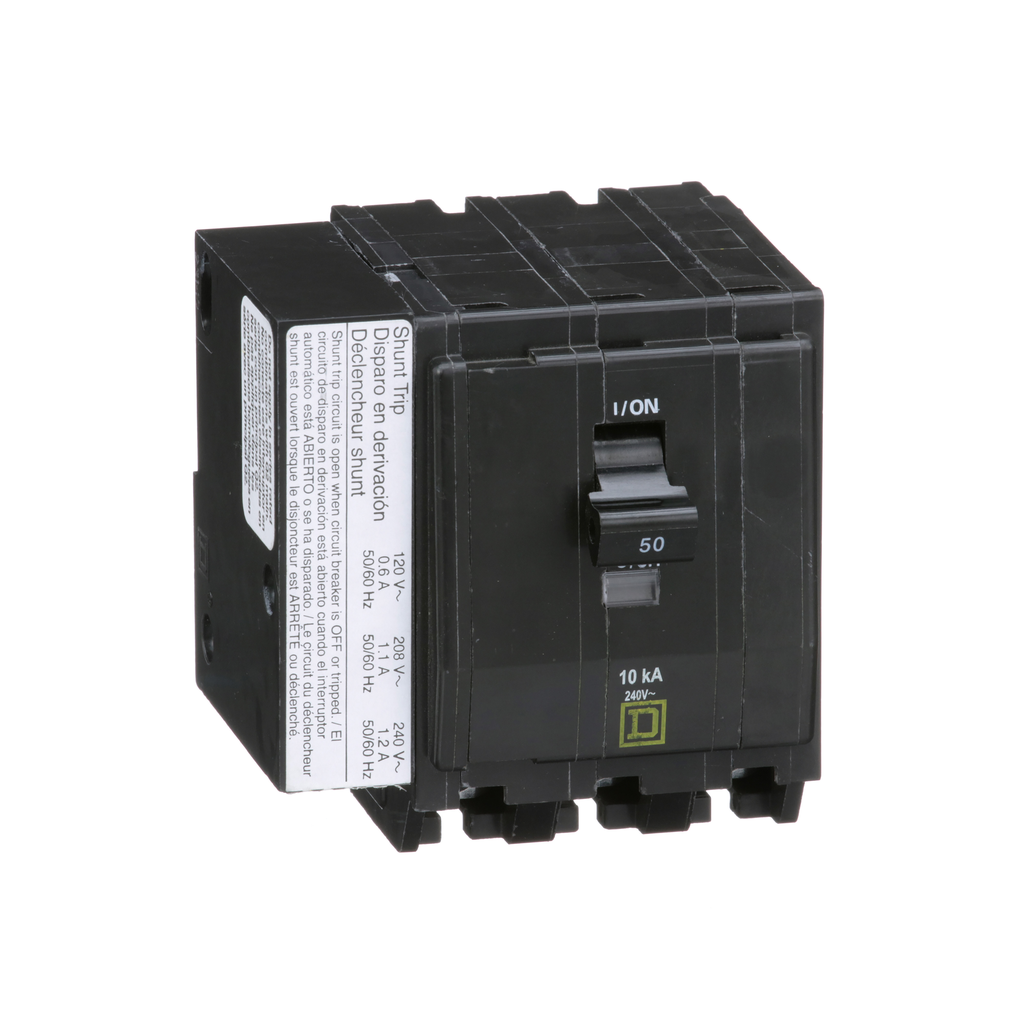

| Product Or Component Type | miniature circuit-breaker |
| Range Of Product | QO |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Sustainable Offer Status | Green Premium product |
| Tightening Torque | 5-5 N.m 10-25 mm? (AWG 8...AWG 2) |
| Warranty | 18 months |
| Width | 76 mm |
