| [Ui] Rated Insulation Voltage | 600 V 3)EN/IEC 60947-1 |
| [Us] Rated Supply Voltage | 24 V AC/DC 50/60 Hz |
| Ambient Air Temperature For Operation | -40-55 ?C |
| Ambient Air Temperature For Storage | -40-70 ?C |
| Bezel Material | chromium plated metal |
| Bulb Base | integral LED |
| Cad Overall Depth | 53.6 mm |
| Cad Overall Height, Cad Overall Width | 36.6 mm |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Cap/Operator Or Lens Colour | white |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1808008EN |
| Current Consumption | 18 mA |
| Device Mounting | fixing hole 30.75 mm +/- 0.25 mm |
| Device Presentation | complete product |
| Device Short Name | XB4F |
| Electrical Shock Protection Class | class I IEC 60536 |
| Electromagnetic Emission | class B IEC 55011 |
| Environmental Disclosure | ENVPEP1808008EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Fixing Collar Material | zamak |
| Fixing Mode | by screw |
| Head Type | built-in-flush |
| Ik Degree Of Protection | IK06 IEC 50102 |
| Ip Degree Of Protection | IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E |
| Light Source | protected LED |
| Mercury Free, Reach Free Of Svhc, Rohs Exemption Information | Yes |
| Mounting Diameter | 30.5 mm |
| Net Weight | 0.112 kg |
| Operator Additional Information | with plain lens |
| Product Certifications | UL Listed || CSA || CCC || EAC |

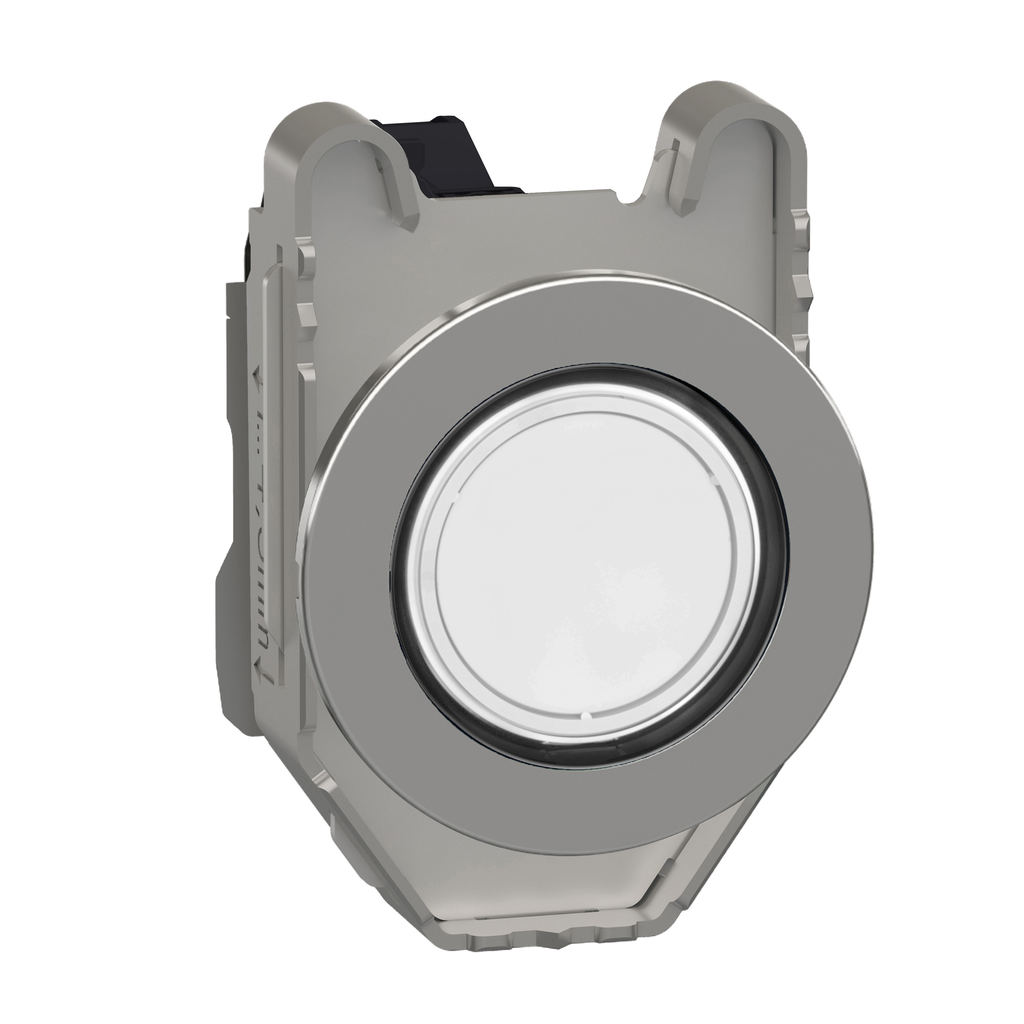

| Product Or Component Type | pilot light |
| Protective Treatment | TH |
| Range Of Product | Harmony XB4 |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Resistance To Electromagnetic Fields | 10 V/m IEC 61000-4-3 |
| Resistance To Electrostatic Discharge | 6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2 |
| Resistance To Fast Transients | 2 kV IEC 61000-4-4 |
| Resistance To High Pressure Washer | 7000000 Pa 55 ?C 0.1 m |
| Sale Per Indivisible Quantity | 1 |
| Service Life | 100000 h at rated voltage and 25 ?C |
| Shape Of Screw Head | cross Philips no 1 || cross pozidriv No 1 || slotted flat ? 4 mm || slotted flat ? 5.5 mm |
| Shape Of Signaling Unit Head | round |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27 |
| Signalling Type | steady |
| Standards | CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1 |
| Supply Voltage Limits | 19.2-30 V DC || 21.6-26.4 V AC |
| Surge Withstand | 1 kV IEC 61000-4-5 |
| Sustainable Offer Status | Green Premium product |
| Tightening Torque | 0.8-1.2 N.m EN 60947-1 |
| Vibration Resistance | 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6 |
| Warranty | 18 months |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
