| [Uc] Maximum Continuous Operating Voltage | 150 V |
| [Ue] Rated Operational Voltage | 208Y/120 V AC |
| Ambient Air Temperature For Operation | 65-65 ?C |
| Cable Length | 33.6 in |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Connections - Terminals | wire phase and neutral AWG 10 copper || wire ground AWG 10 copper || wire dry contacts AWG 22 copper |
| Depth | 79 mm |
| Device Mounting | surface || flush fixing kit |
| Device Short Name | HWA |
| Enclosure Material | Black Plastic |
| Eu Rohs Directive | Compliant |
| Height | 122 mm |
| Local Signalling | status LED green per phase normal operation || status LED red per phase fault || alarm fault |
| Mercury Free | Yes |
| Mounting Location | bottom of enclosure |
| Nema Degree Of Protection | NEMA 4X |
| Nominal Discharge Current | 20 kA |
| Number Of Poles | 2 |
| Phase | 3 phase |

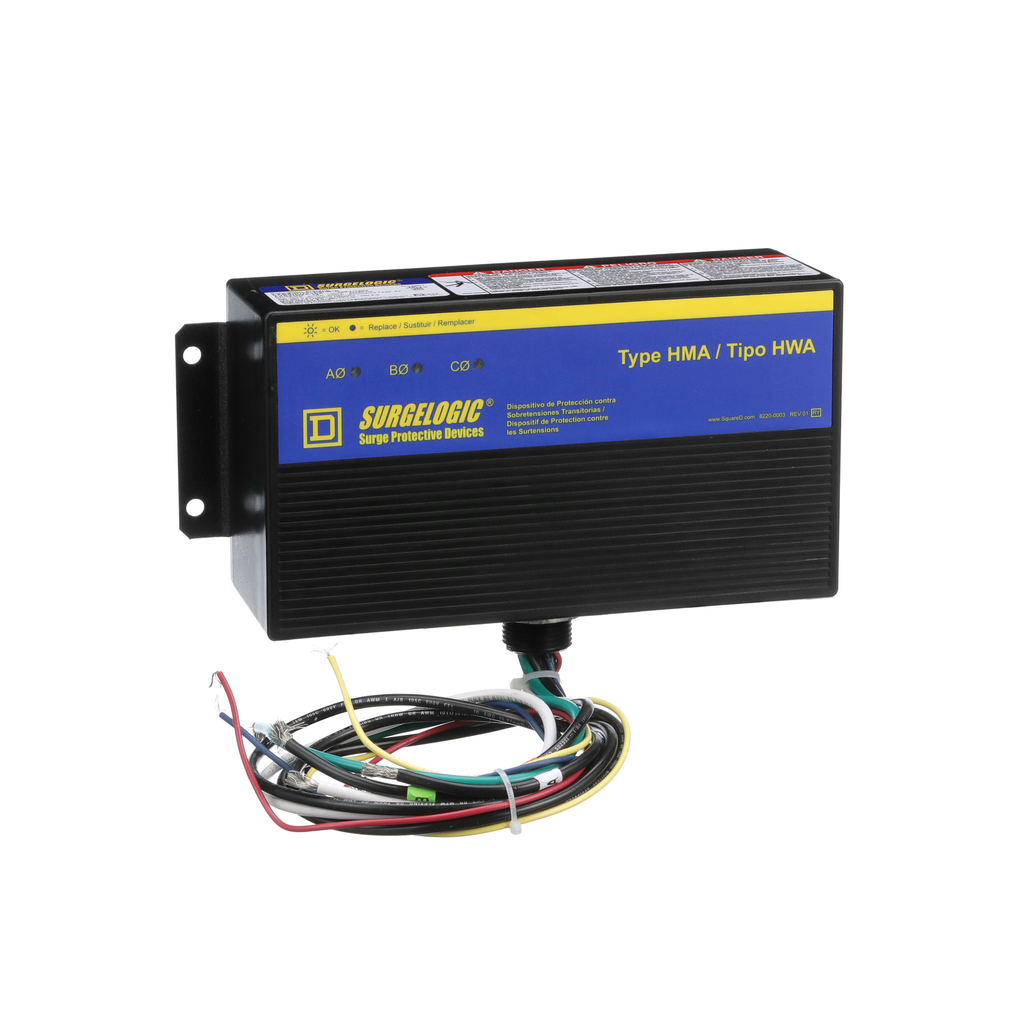

| Product Or Component Type | surge protection device |
| Range Of Product | Surgelogic |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Rohs Exemption Information | Yes |
| Short-Circuit Protection | 200 kA |
| Standards : UL 1449:ed. 4 || UL 1283:ed. 5 || CSA C22.2 No 8 | 1986 |
| Surge Current | 100 kA per phase |
| Warranty | 10 years |
| Width | 219 mm |
| Wiring Configuration | 4-wire |
