MEAN WELL NFM-15-5

B00FRBQY5C

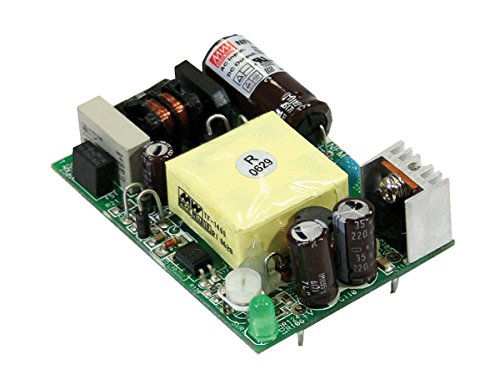

Open-Frame Ultra-Miniature Medical AC-to-DC Switching Power Supply 5 Volts @ 3 Amps, 15W

Open-Frame Ultra-Miniature Medical AC-to-DC Switching Power Supply 5 Volts @ 3 Amps, 15Wzoom

Attributes

Key Value
AC Current (Typ.)0.35A / 115VAC------0.2.
Alternate Part No.709-NFM15-5
ApprovalsES60601-1, EN60601-1
BrandMean Well
ConfigurationOpen Frame
Dimension70 x 48 x 22mm (LxWxH)
Dimensions2.75 L x 1.88 W x 0.86 .
Efficiency (Typ.)73%
Height22 mm
Hold up Time100ms/230VAC - - -24ms/.
Industry Aliasesnew
Input Voltage120 VAC ; 127 VAC ; 190.
Input Voltage Range115-264 VAC
Isolation ResistanceI/P - O/P: 100M Ohms / .
Leakage CurrentTouch current<80 A / 26.
Length70 mm
Line Regulation?1.0%
Load Regulation?1.0%
ManufacturerMean Well
Manufacturer Part No.NFM-15-5
Mounting StyleChassis
Mounting TypePanel Mount
MTBF499.7Khrs min. MIL-HDBK.
Number of Outputs1, 1 Output
Open Frame/EnclosedOpen Frame
OperationSwitching
Output Current3 A
Output Current-Channel 13 A
Output Power15 W
Output Power Rating15 W
Output Voltage5 VDC, 5V
Output Voltage-Channel 15 VDC
Over Voltage3.8 ~ 4.95V
Packing0.065Kg; 120pcs / 8.8Kg.
Primary TypeAC-DC
ProductSwitching Supplies
Product CategorySwitching Power Supplies
SeriesNFM-15, NFM Series
Special Features3 Year Warranty ; 100% .
Storage Temp., Humidity-40 ~ +85?C, 10 ~ 95% RH
Temp. Coefficient?0.03%/?C (0 ~ 50?C)
TypeMedical
Voltage Range85~264VAC 120~370VDC
Voltage Tolerance?2.0%
Wattage15
Width48 mm
Working Humidity20 ~ 90% RH non-condens.
Working Temp.-20 ~ +70?C (Refer to ".

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comNFM-15-510.61In StockMEAN WELL10.6 @ 1
thumbzoomDigi-Key1866-3544-ND16.081In StockMEAN WELL USA Inc.16.08 @ 1
Future Electronics701466516.812120In StockMEAN WELL16.812 @ 120
thumbzoompowersupplymall.comNFM-15-520.1814Mean Well20.18 @ 1
thumbzoompeaktopeakpower.comNFM-15-521.641In StockMean Well21.64 @ 1
us.rs-online.com7038799623.291In StockMEAN WELL23.29 @ 1
thumbzoomswatee.comNFM-15-525.26129Mean Well25.26 @ 1
AmazonTPB07MPDN29727.951In Stock2Mean Well USA27.95 @ 1
