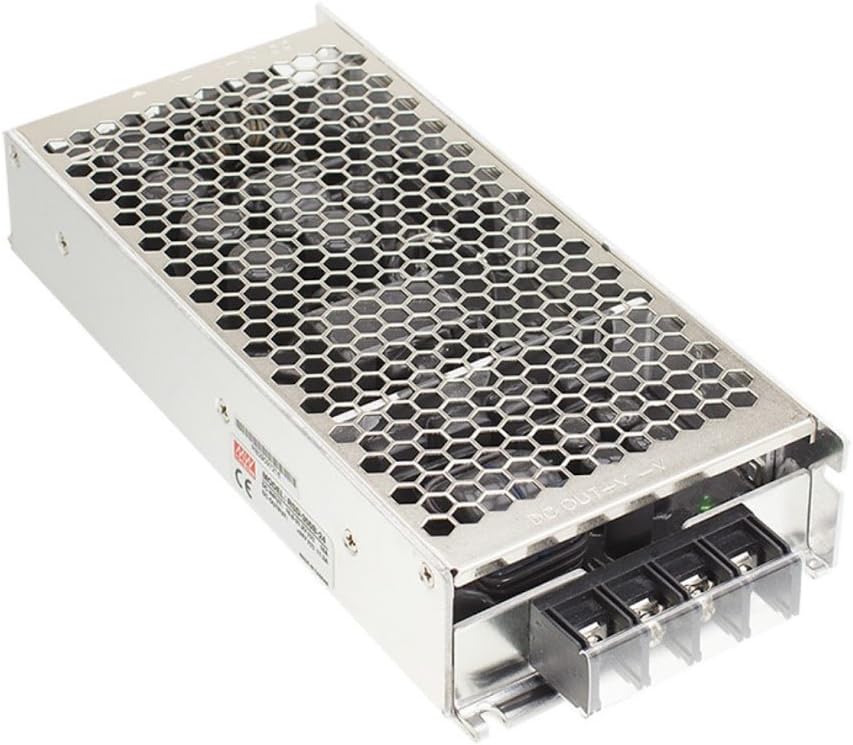

MEAN WELL RSD-300C-12 300W 25A 12V Railway Single Output DC-DC Converter

mpnRSD-300C-12
brandname: MEAN WELL
manufacturername: MEAN WELL

MEAN WELL RSD-300C-12 300W 25A 12V Railway Single Output DC-DC Converter

MEAN WELL RSD-300C-12 300W 25A 12V Railway Single Output DC-DC Converter

zoom

PackageQuantity: 12
Manufacturer: MEAN WELL
Label: MEAN WELL

Attributes

Key	Value
ASIN	B077PZ64L4
Configuration	Enclosed
DC Current (Typ.)	9.7A / 24V
Dimension	216 x 97 x 40mm (LxWxH)
Dimensions	216 x 97 x 40mm (L x W .
Efficiency (Typ.)	89%
EMC Emission	Compliance to EN55022 (.
EMC Immunity	Compliance to EN61000-4.
Hold up Time	B/C- type complies with.
Industry Aliases	new
Input Voltage	33.6 to 62.4
Inrush Current (Typ.)	45A / 24VDC
Isolation Resistance	I/P - O/P, I/P-FG, O/P-.
Item model number	RSD-300C-12
Line Regulation	?0.5%
Load Regulation	?1.0%
Manufacturer	Meanwell
Mounting Type	Panel Mount
MTBF	130.7Khrs min. MIL-HDBK.
Number of Outputs	1
Operation	Switching
Output	12VDC@25A
Output Power	300 W
Output Voltage	12 VDC, 12V
Over Temperature	B/C - type : 110?C ?5?C.
Over Voltage	5.75 ~ 7V
Overload	105 ~ 135%
Packing	1.19Kg; 12pcs / 15.3Kg .
Primary Type	DC-DC
Railway Standard	Meet EN50155 / IEC60571.
Safety Standards	Meet IEC60950-1 (LVD)
Series	RSD-300 Series
Setup, Rise Time	800ms, 50ms at full load
Storage Temp., Humidity	-40 ~ +85?C, 5 ~ 95% RH
Temp. Coefficient	?0.03%/?C (0 ~ 50?C)
Type	Railway
Vibration	10 ~ 500Hz, 5G 10min. /.
Voltage Range 1 sec.	14.4 ~ 33.6 VDC
Voltage Range Continuous	16.8 ~ 31.2 VDC
Voltage Tolerance	?2.0%
Wattage	300
Withstand Voltage	I/P - O/P : 4KVAC I/P-F.
Working Humidity	5 ~ 95% RH non-condensi.
Working Temp.	-40 ~ +55?C (no deratin.

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Onlinecomponents.com	RSD-300C-12	95.64	1	12		MEAN WELL		95.64 @ 12
	peaktopeakpower.com	RSD-300C-12	103.0	1	12		Mean Well		103.0 @ 12
	powersupplymall.com	RSD-300C-12	128.5	1	12		Mean Well		128.5 @ 12
	Newark	44AC7357	142.85	1	12		MEAN WELL		142.85 @ 12
	electricautomationnetwork.com	RSD-300C-12	147.59	1	12		MEANWELL		147.59 @ 12
	us.rs-online.com	70272997	165.08	1	12		MEAN WELL		165.08 @ 12
	AmazonTP	B071NRCYC7	166.45	1	12	5	MEAN WELL		166.45 @ 12
	RS Delivers	770-4083	209.004	1	12		Mean Well		209.004 @ 12
	AmazonSC	B077PZ64L4	266.25	1	12		MEAN WELL		266.25 @ 12
