mpn:
brand:
manufacturer:
MPN:
Description:

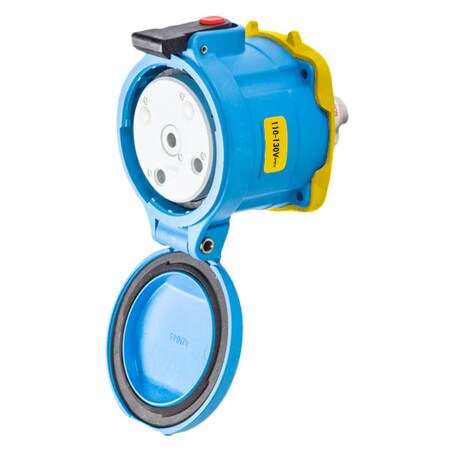

60A Rcp
Weight:
10.0
Weight:
10.0 LB
Preferred Price:
805.33
Price:
805.33
Min Simple Price:
454.99
Absolute Min Price:
646.08
Min Price:
646.08
Dimensions:
[10.0, 10.0, 10.0]
qty:
21
simpleSku:
MzQxOQ:::33-64109-NC
sku:
MzQxOQ::RC:33-64109-NC@y0
condition:
11
seller:
Zoro
amzMan:
meltric
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Amps - Plugs and Receptacles, Current Rating | 60 A |
| Approvals | cCSAus, UL |
| Body Material - Pin and Sleeve | Polyester |
| Case Material | Non-Metallic |
| Color - Plugs and Receptacles | Blue |
| Color Code, Voltage Color Code | Yellow |
| Contact Configuration | 2P+G |
| Family Series | Meltric Plugs & Receptacles, DSDC6 Series |
| Gross Weight, Net Weight | 0 lbs |
| Impact Rating | IK08 |
| IP Rating | IP55 |
| Item Number, Manufacturer Part Number | 33-64109-NC |
| Keying Position | 10 |
| Load Break Amp Rating_Abnormal Overload | 90A |
| Manufacturer | Meltric |
| NEMA Rating | 3R |
| Number of Notch Positions | 24 |
| Operating Temp. Range | -40C to 60C |
| Package Quantity | 1 |
| Product Series | DSDC6 |
| Standards | cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 1682 |
| Temperature Range (F) | -40-140 ?F |
| Terminal Type | Screw, Screw terminal |
| Tightening Torque | Phase: 48 IN-LBS / 5.4 N-M |
| Use With | Mating Box MB6 |
| Use With Installation Accessory Size | 4 |
| Voltage | 130V DC, 130 V |
| Wire Size | 10 AWG, 2 AWG, 10 AWG to 2 AWG |
| Wire Size Range | 2-10 AWG |
| Wire Strip Length | Phase: 15/16 in (24 mm) |
| Wire Temperature Rating | 60 Degrees C |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Zoro | G001758983 | 454.99 | 454.99 | 1 | In Stock | Meltric | 454.99 @ Qty: 1+ | ||
 | Galco | 33-64109-NC-MELC | 455.74 | 455.74 | 1 | In Stock | Meltric | 455.74 @ Qty: 1+ | ||
| gordonelectricsupply.com | 33-64109-NC | 465.0 | 465.0 | 1 | In Stock | 80 | MELTRIC | 465.0 @ Qty: 1+ | ||
| Platt.com | 1924642 | 469.89 | 469.89 | 1 | In Stock | Meltric | 469.89 @ Qty: 1+ | |||
 | Walker Industrial | 33-64109-NC | 510.75 | 510.75 | 1 | In Stock | 17 | Meltric | 510.75 @ Qty: 1+ | |
| us.rs-online.com | 74259081 | 663.98 | 663.98 | 1 | In Stock | Meltric | 663.98 @ Qty: 1+ |
