Description:

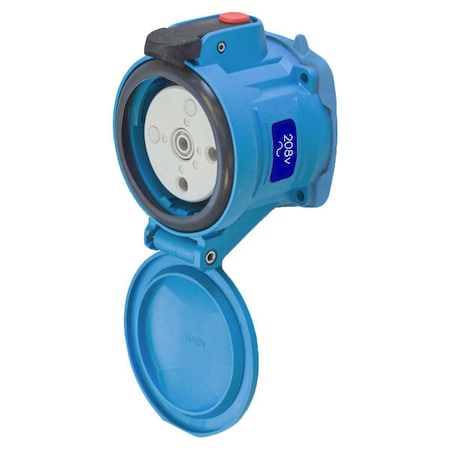

DSN60 RECEPTACLE POLY BLUE SIZE 3 TYPE 4X IP 69 2P+G 60A 208 VAC 60 Hz NO AUX MUSHROOM PAWL PADLOCK PAWL NORMALLY CLOSED LID
Attributes
| Key ^ | Value |
|---|---|
| Amps - Plugs and Receptacles | 60 A |
| Body Material - Pin and Sleeve | Polyester |
| Color - Plugs and Receptacles, Color Code | Blue |
| Contact Configuration | 2P+G |
| HP, Use With Installation Accessory Size | 3 |
| Hz | 60 Hz |
| IP Rating | Primary IP66/67; Secondary IP69 |
| Keying Position | 16 |
| Load Break Amp Rating | 60A |
| NEMA Rating | 4X |
| Number of Aux. Outputs | NO AUX |
| Number of Notch Positions | 24 |
| Operating Temp. Range | -40C to 60C |
| Short Circuit Current Rating | 100 KA - MAKE & WITHSTAND |
| Standards | cCSAus, 155873, C22.2 No. 182.1-13, ULC, E79796, UL 1682, UL 2682 |
| Terminal Type | Screw terminal |
| Tightening Torque | Phase: 15 IN-LBS / 1.7 N-M |
| Use With | Mating Box MB3 |
| Voltage | 208V AC |
| Wire Size | 14 AWG to 4 AWG |
| Wire Strip Length | Phase: 3/4 in (19 mm) |
| Wire Temperature Rating | 60 Degrees C |
