| (hidden) accessory builder | PBLT2-20-60 |
| Accuracy, Accuracy - Submersible Transmitter | +/-0.25% Full Scale |
| Cable Coating, Cable Material | ETFE |
| Cable Length | 60 ft. |
| Cable Length - Submersible Transmitter | 60 ft |
| Country of Origin (subject to change) | United States |
| Electrical Connections | Cable & Wire Leads |
| Electrical Protection | Yes |
| Housing Material | 316 Stainless Steel |
| Includes | Instructions |

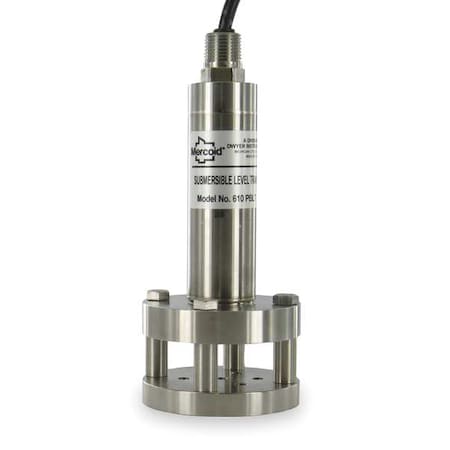

| Item | Submersible Level Transmitter |
| Manufacturers Warranty Length | 1 yr |
| Maximum Loop Resistance | 900 Ohm |
| Maximum Operating Temperature | 200 Degrees F |
| Maximum Pressure | 20 psi |
| Measuring Depth, Measuring Depth - Submersible Transmitter | 0 to 46.2 ft |
| Minimum Operating Temperature | 0 Degrees F |
| Minimum Pressure | 0 psi |
| Operating Temp. Range - Submersible Transmitter, Temp. Range | 0 Degrees to 200 Degrees F |
| Output | 4 to 20 mA DC |
| Output - Submersible Transmitter | 4 to 20mA DC |
| Overall Diameter | 3.437 in |
| Overall Height | 7.843 in |
| Power Required | 13 to 30VDC |
| Power Required - Submersible Transmitter | 13 to 30V DC |
| Pressure Range | 0 to 20 psi |
| Pressure Range - Submersible Transmitter | 0 to 20.0 psi |
| Process Connection Size | 1/2 in |
| Process Connection Type | NPT |
| Response Time | 50 msec |
| Seal Material | Fluoroelastomer |
| Sensor Length | 7.80" |
| Sensor Length - Submersible Transmitter | 7.8 in |
| Series | PBLT2 |
| Standards | CE |
| Thermal Error | +/-0.02% |
| Tip Design | Bird Cage |
| Type | Bird Cage Design |
| Weight | 4.3 lb |
| Wetted Materials, Wetted Materials - Submersible Transmitter | 316 Stainless Steel, 316L Stainless Steel, Buna-N |
