mpn:
brand:
manufacturer:
MPN:
Description:

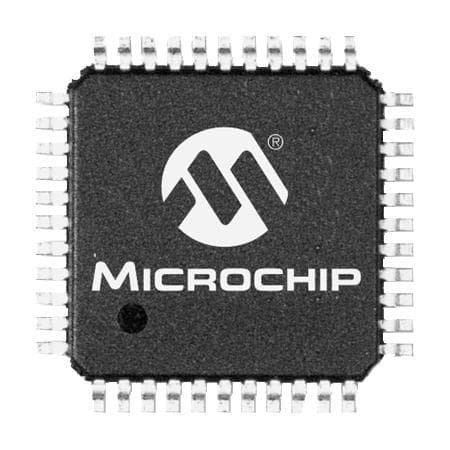

PIC18F4520IPT SemiConductor - CASE: Standard MAKE: MICROCHIP
Weight:
0.044
Weight:
0.044 LB
Preferred Price:
289.39
Price:
289.39
Min Simple Price:
3.27
Absolute Min Price:
232.17
Min Price:
232.17
Dimensions:
[1.0, 1.0, 1.0]
qty:
1
simpleSku:
NDM1NQ:::PIC18F4520IPT
sku:
NDM1NQ::UM:PIC18F4520IPT@x50
condition:
11
seller:
Component Electronics
amzMan:
microchip technology
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| ADC Resolution | 10 bit |
| Architecture | C Compiler ; Harvard |
| Case | Standard |
| Comparator Type | 2 |
| CPU Speed, Data Rate | 10 MIPS |
| Dimensions | 10.00 x 10.00 x 1.05 mm |
| EEPROM Memory | 256 B |
| Family Name | PIC18 |
| Frequency | 40 |
| Height | 0.041" (1.05mm) |
| Input Output, Number of IO Ports | 36 |
| Interface | I2C/SPI/USART |
| Length | 0.393 in |
| Manufacturer | Microchip Technology |
| Maximum Number of I2C Channels, Maximum Number of LIN Channels, Maximum Number of SPI Channels, Maximum Number of UART Channels, Number of PWM Units | 1 |
| Maximum Operating Temperature | +85 ?C |
| Memory Type | Flash |
| Minimum Operating Temperature | -40 ?C |
| Mounting Type | Surface Mount |
| Number of ADCs | 13 x 10 bit |
| Number of Bits | 8 |
| Number of Pins | 44 |
| Number of Timers | 4 |
| Operating Voltage | 4.2 to 5.5 V |
| Package Type | TQFP |
| Program Memory Size | 32 kB |
| Programmable Memory | 32K Bytes |
| PWM Channels | 1 (CCP), 1 (ECCP) |
| RAM Size | 1.5 kB |
| Series | PIC 18F Series |
| SKU | 486150 |
| Speed | 40 MHz |
| Temperature Operating Range | -40 to +85 ?C |
| Timer Resolution | 8, 16 bit |
| Timers | 1 x 8 bit, 3 x 16 bit |
| Type | SemiConductor, PIC |
| USB Channels | 1 x Device |
| Voltage Range | 2-5.5 V |
| Width | 0 in |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Component Electronics | 18F4520-I/PT-MICROCH | 3.85 | 24.64 | 1 | 10 | Microchip Technology | 3.85 @ Qty: 10+ | ||
| Hotenda | H2308197 | 4.07 | 26.048 | 1 | 3287 | Microchip Technology | 4.07 @ Qty: 10+ | |||
| Onlinecomponents.com | PIC18F4520-I/PT | 6.89 | 44.096 | 1 | 447 | MICROCHIP TECH. | 6.89 @ Qty: 10+ | |||
 | TME | PIC18F4520-I/PT | 7.19 | 46.016 | 1 | 110 | MICROCHIP TECHNOLOGY | 7.19 @ Qty: 10+ | ||
 | Newark | 24M5937 | 7.93 | 50.752 | 1 | 3273 | MICROCHIP | 7.93 @ Qty: 10+ | ||
| RS Delivers | 698-8909 | 10.572 | 67.6608 | 1 | 10 | Microchip | 10.572 @ Qty: 10+ | |||
| us.rs-online.com | 70045693 | 11.97 | 76.608 | 1 | 10 | Microchip Technology Inc. | 11.97 @ Qty: 10+ | |||
| AmazonTP | B078SLNBH1 | 52.98 | 339.072 | 1 | 10 | 1 | Microchip Technology | 52.98 @ Qty: 10+ |
