brand:
manufacturer:
Description:

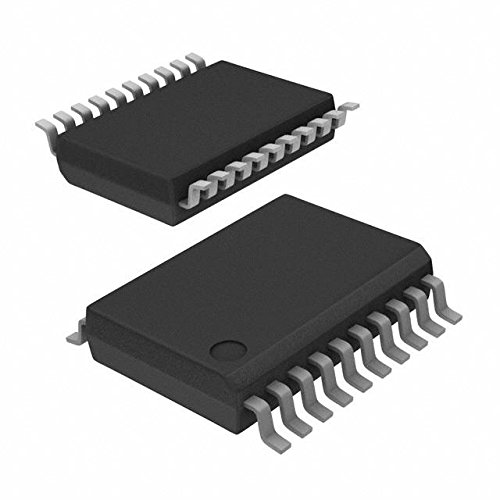

PIC series Microcontroller IC 8-Bit 32MHz 14KB (8K x 14) FLASH 20-SSOP
Preferred Price:
2.68
Price:
2.68
Min Simple Price:
0.738
Absolute Min Price:
2.23
Min Price:
2.23
qty:
97
simpleSku:
NDM1NQ:::PIC16LF15345-I/SS
sku:
NDM1NQ::KN:PIC16LF15345-I/SS@y0
condition:
11
seller:
iodParts
amzMan:
microchip technology
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Base Part Number, Base Product Number | PIC16LF15345 |
| Case | SSOP20 |
| Category | Integrated Circuits (ICs) |
| Clock frequency, Speed | 32MHz |
| Connectivity | I, I?C, LINbus, SPI, UART/USART |
| Core Processor, Series | PIC |
| Core Size | 8-Bit |
| Data Converters | A/D 17x10b; D/A 1x5b |
| EEPROM Size | 224 x 8 |
| Family | PIC16 |
| Flash memory capacity | 14000B |
| Kind of architecture | Harvard 8bit |
| Kind of package, Package, Packaging | Tube |
| Lead Free Status / RoHS Status | RoHS Compliant |
| Manufacturer Part Number | PIC16LF15345-I/SS |
| Manufacturer Standard Lead Time | 10 Weeks |
| Manufacturer, Mfr | Microchip Technology |
| Mounting | SMD |
| Mounting Type | Surface Mount |
| Number of 10bit A/D converters, Number of 16bit timers, Number of comparators, Number of input capture channels, Number of output compare channels | 2 |
| Number of 8bit timers | 1 |
| Number of capacitive channels | 17 |
| Number of I/O, Number of inputs/outputs | 18 |
| Number of PWM channels | 4 |
| Operating frequency | 0...32MHz |
| Operating Temperature | -40, -40?C ~ 85?C (TA) |
| Operating temperature | -40...85?C |
| Oscillator Type | Internal |
| Package / Case | 20-SSOP (0.209", 5.30mm Width) |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Product Status | Active |
| Program memory | 14kB |
| Program Memory Size | 14KB (8K x 14) |
| Program Memory Type | FLASH |
| RAM Size | 1K x 8 |
| Series | PIC? XLP? 16F |
| SRAM memory capacity | 1kB |
| Standard Package | 67 |
| Supplier Device Package | 20-SSOP |
| Terminal pitch | 0.65mm |
| Type of integrated circuit | PIC microcontroller |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| iodParts | PIC16LF15345-I/SS | 0.738 | 138.8916 | 469 | 2881 | Microchip | 0.738 @ Qty: 469+ | |||
 | Newark | 23AC8405 | 1.03 | 276.658 | 670 | 97 | MICROCHIP | 1.03 @ Qty: 670+ | ||
| Digi-Key | 6593078 | 1.35 | 1.35 | 1 | 97 | Microchip Technology | 1.35 @ Qty: 1+ | |||
 | TME | PIC16LF15345-I/SS | 1.45 | 1.45 | 1 | 97 | MICROCHIP TECHNOLOGY | 1.45 @ Qty: 1+ |
