mpn:
manufacturer:
MPN:
Description:

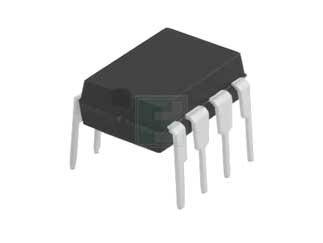

IC EEPROM 1KBIT 400KHZ 8DIP
Weight:
0.002002
Weight:
4.488e-05 LB
Preferred Price:
23.23
Price:
23.23
Min Simple Price:
0.25
Absolute Min Price:
18.11
Min Price:
18.11
Dimensions:
[1.0, 1.0, 1.0]
qty:
1
simpleSku:
NDM1NQ:::24LC01B/P
sku:
NDM1NQ::HY:24LC01B/P@x50
condition:
11
seller:
Digi-Key
amzMan:
microchip technology
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Access Time | 100 ns, 3500 ns |
| Case | Standard |
| Category | Integrated Circuits (ICs) |
| Clock Frequency | 400 kHz |
| Current, Input, Leakage | 1 uA |
| Current, Output, Leakage | ?1 ?A |
| Data Retention | 200 Years |
| Density | 1 kbit |
| Dimensions | 0.400 x 0.280 x 0.195 in |
| ESD Voltage | ?4 kV |
| Fall Time | 300 ns |
| Height | 0.195" (5mm) |
| Input Capacitance, Output Capacitance | 10 pF |
| Interface | 2-Wire |
| Length | 0.4 in |
| Manufacturer, Mfr | Microchip Technology |
| Maximum Operating Temperature | +125 ?C |
| Memory Capacity | 1 KB |
| Memory Format, Technology | EEPROM |
| Memory Interface | I?C |
| Memory Size | 1Kb (128 x 8) |
| Memory Type | Serial EEPROM, Non-Volatile |
| Minimum Operating Temperature | -40 ?C |
| Mounting Type | Through Hole |
| Number of Bits per Word | 8 bit |
| Number of Pins | 8 |
| Operating Current | 0.05 ; 0.1 mA |
| Operating Temperature | -40 to +85 ?C, 0?C ~ 70?C (TA) |
| Operating Voltage Range | 2.5 to 5.5 V |
| Organization | 128 x 8 |
| Package | Tube |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Package Type | PDIP |
| Part Status | Active |
| Product Header | 1K I |
| Programmable Voltage | 2.5 V |
| Rise Time | 300 |
| Series | 24LC01B Series, - |
| SKU | 475363 |
| Supplier Device Package | 8-PDIP |
| Supply Voltage | 2.5-5.5 V |
| Temperature Operating Range | -40 to +125 ?C |
| Type | Integrated Circuit |
| Voltage - Supply | 2.5V ~ 5.5V |
| Voltage, Input, High Level | 1.75 V |
| Voltage, Input, Low Level | 0.75 V |
| Voltage, Output, Low Level | 0.4 V |
| Width | 0 in |
| Write Cycle Time - Word, Page | 5ms |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Freelance Electronics | 24LC01B/P | 0.25257 | 0.25257 | 1 | 541 | MICROCHIP TECH | 0.25257 @ Qty: 1+ | |||
 | Digi-Key | 24LC01B/P-ND | 0.26 | 0.26 | 1 | 384 | Microchip Technology | 0.26 @ Qty: 1+ | ||
 | Component Electronics | 24LC01B/P-MICROCHIP1 | 0.38 | 0.38 | 1 | 4400 | Microchip Technology | 0.38 @ Qty: 1+ | ||
 | Newark | 26M6932 | 0.385 | 0.385 | 1 | 1622 | MICROCHIP | 0.385 @ Qty: 1+ | ||
| Radwell | 24LC01BP | 0.65 | 0.65 | 1 | 153 | MICROCHIP TECHNOLOGY INC | 0.65 @ Qty: 1+ | |||
| us.rs-online.com | 70045221 | 1.09 | 1558.482 | 3573 | 153 | Microchip Technology Inc. | 1.09 @ Qty: 3573+ | |||
| Little Diode | 24LC01BP | 5.9331285 | 5.9331285 | 1 | 24 | Microchip | 5.9331285 @ Qty: 1+ |
