manufacturer:
Description:

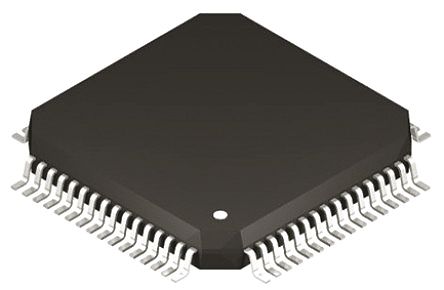

DSP, 16-Bit, 66 KB Flash, 2KB RAM, 52 I/O, TQFP-64
Weight:
0.044
Weight:
0.044 LB
Preferred Price:
67.76
Price:
67.76
Min Simple Price:
6.86
Absolute Min Price:
53.7
Min Price:
53.7
Dimensions:
[158.0, 1.0, 1.0]
qty:
1
simpleSku:
NDM1NQ:::DSPIC30F5015-30I/PT
sku:
NDM1NQ::GA:DSPIC30F5015-30I/PT@x5
condition:
11
seller:
us.rs-online.com
amzMan:
microchip
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| ADC Channels | ADC Channels |
| ADC Resolution | 10bit, 10 bit |
| ADCs | 1 (16 x 10 bit) |
| Architecture | C Compiler ; Modified Harvard ; RISC |
| Base Product Number | DSPIC30F5015 |
| Brand | Brand |
| Case | TQFP64 |
| Category | Integrated Circuits (ICs) |
| Comparator Type | Zero |
| Connectivity | CANbus, I?C, SPI, UART/USART |
| Core Processor, Family | dsPIC |
| Core Size | 16-Bit |
| CPU Speed, Speed | 30 MIPS |
| Data Bus Width, PWM Resolution | 16bit |
| Data Converters | A/D 16x10b |
| Description | IC MCU 16BIT 66KB FLASH 64TQFP |
| Detailed Description | dsPIC dsPIC? 30F Microcontroller IC 16-Bit 30 MIPs 66KB (22K x 24) FLASH 64-TQFP (10x10) |
| Device Core | Device Core |
| Digi-Key Part Number | DSPIC30F501530IPT-ND |
| DigiKey Programmable | Not Verified |
| Dimensions | 10.00 x 10.00 x 1.05 mm, Dimensions |
| EEPROM Memory | 1024 B |
| EEPROM memory capacity | 1kB |
| EEPROM Size | 1K x 8 |
| Family Name | Family Name |
| Height | Height |
| Input Output, IOs, Number of I/O | 52 |
| Instruction Set Architecture | RISC |
| Interface | CAN/I2C/SPI/UART/USART |
| Kind of architecture | Harvard 16bit |
| Length | 0.393 in, Length |
| Manufacturer Product Number | DSPIC30F5015-30I/PT |
| Manufacturer Standard Lead Time | 21 Weeks |
| Manufacturer, Mfr | Microchip Technology |
| Maximum Frequency | Maximum Frequency |
| Maximum Number of Ethernet Channels, Number of PCI Channels | 0 |
| Maximum Operating Temperature | +85 ?C |
| Memory Type, Program Memory Type | Flash |
| Minimum Operating Temperature | Minimum Operating Temperature |
| Mounting | SMD |
| Mounting Type | Surface Mount |
| Number of 16bit timers | 5 |
| Number of 32bit timers | 2 |
| Number of ADC Units, Number of cores, Number of UART Channels | 1 |
| Number of ADCs | 16-Channel, 10-Bit |
| Number of Bits, Number of capacitive channels | 16 |
| Number of CAN Channels | Number of CAN Channels |
| Number of Ethernet Channels | Number of Ethernet Channels |
| Number of I2C Channels | Number of I2C Channels |
| Number of LIN Channels | Number of LIN Channels |
| Number of Pins | 64 |
| Number of PWM Units | Number of PWM Units |
| Number of SPI Channels | Number of SPI Channels |
| Number of Timers | Number of Timers, 7 |
| Number of USART Channels | Number of USART Channels |
| Operating Temperature | -40?C ~ 85?C (TA) |
| Operating Voltage | 2.5 to 5.5 V |
| Oscillator Type | Internal |
| Package | Tray |
| Package / Case | 64-TQFP |
| Package Type | TQFP |
| Peripherals | Brown-out Detect/Reset, Motor Control PWM, QEI, POR, PWM, WDT |
| Pin Count | Pin Count |
| Product Status | Active |
| Program memory | 66kB |
| Program Memory Size | 66KB (22K x 24), Program Memory Size |
| Program Memory Type | Program Memory Type |
| Programmable Memory | 66K Bytes |
| Pulse Width Distortion | 4 x 16 bit (Standard), 8 x 16 bit (Motor Control) |
| Pulse Width Modulation | 4 (8 x 16 bit) |
| PWM Channels | 8 |
| RAM Size | RAM Size, 2K x 8, 2048 B |
| Series | dsPIC 30Fxxx Series, dsPIC? 30F |
| SRAM memory capacity | 2kB |
| Stock | Stock |
| Supplier Device Package | 64-TQFP (10x10) |
| Temperature Operating Range | -40 to +85 ?C |
| Terminal pitch | 0.5mm |
| Timer Resolution | Timer Resolution |
| Timers | 2 x 32 bit, 5 x 16 bit, Timers |
| Type | DSP |
| Type of integrated circuit | dsPIC microcontroller |
| Typical Operating Supply Voltage | Typical Operating Supply Voltage |
| USB Channels | USB Channels |
| Voltage - Supply (Vcc/Vdd) | 2.5V ~ 5.5V |
| Voltage Range | 2.5-5.5 V |
| Width | 10mm |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| us.rs-online.com | 70046071 | 6.86 | 6.86 | 1 | In Stock | Microchip Technology Inc. | 6.86 @ Qty: 1+ | |||
| Hotenda | H2308594 | 7.03 | 7.03 | 1 | 449 | Microchip Technology | 7.03 @ Qty: 1+ | |||
 | RS Delivers | 819-5370 | 8.1396 | 525.81816 | 160 | In Stock | Microchip | 8.1396 @ Qty: 160+ | ||
| Onlinecomponents.com | DSPIC30F5015-30I/PT | 9.86 | 163.676 | 40 | In Stock | Microchip Tech. | 9.86 @ Qty: 40+ | |||
 | Newark | 71J3782 | 10.55 | 10.55 | 1 | 984 | MICROCHIP | 10.55 @ Qty: 1+ | ||
 | Digi-Key | 718211 | 10.65 | 10.65 | 1 | 83 | Microchip Technology | 10.65 @ Qty: 1+ | ||
 | TME | 30F5015-30I/PT | 11.83 | 11.83 | 1 | In Stock | MICROCHIP TECHNOLOGY | 11.83 @ Qty: 1+ | ||
| AmazonTP | B01814MI8S | 17.43 | 17.43 | 1 | In Stock | 2 | MICROCHIP | 17.43 @ Qty: 1+ | ||
| AmazonSC | B07L47MB8Z | 48.2 | 48.2 | 1 | In Stock | MICROCHIP TECHNOLOGY | 48.2 @ Qty: 1+ |
