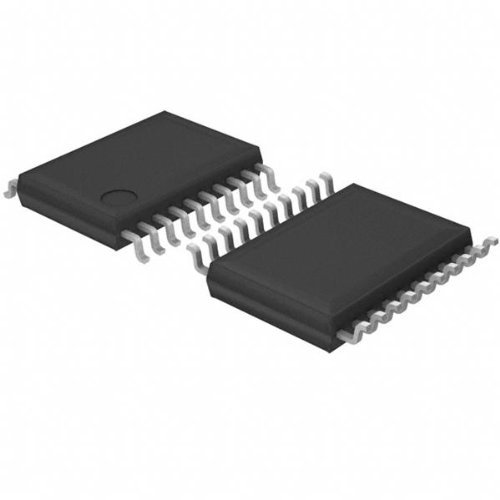

PIC16F1828-E/SS

mpnPIC16F1828-E/SS
brandname: Microchip Technology Inc.
manufacturername: Microchip Technology Inc.

8-bit Microcontrollers - MCU 7 KB Flash 256b RAM 32 MHz Int. Osc (1 piece)

8-bit Microcontrollers - MCU 7 KB Flash 256b RAM 32 MHz Int. Osc (1 piece)

zoom

PartNumber: PIC16F1828-E/SS
PackageQuantity: 1
Manufacturer: Microchip Technology
Label: Microchip Technology

Attributes

Key	Value
ADC Resolution	8 bit
Architecture	RISC
Comparator Type	2
CPU Speed	8 MIPS
Data Rate	8 MIPS
Dimensions	7.50 x 5.60 x 1.85 mm
EEPROM Memory	256 B
Family Name	PIC16
Frequency	32
Height	0.073" (1.85mm)
Input Output	17
Interface	I2C/SPI/UART/USART
Length	0.295 in
Maximum Number of I2C C.	1
Maximum Number of LIN C.	1
Maximum Number of SPI C.	1
Maximum Number of UART .	1
Maximum Operating Tempe.	+125 ?C
Memory Type	Flash
Minimum Operating Tempe.	-40 ?C
Mounting Type	Surface Mount
Number of ADCs	12 x 8 bit
Number of Bits	8
Number of IO Ports	17
Number of Pins	20
Number of PWM Units	1
Number of Timers	5
Operating Voltage	1.8 to 5.5 V
Package Type	SSOP
Program Memory Size	7 kB
Programmable Memory	7K Bytes
PWM Channels	1 (ECCP Full-Bridged), .
RAM Size	256 B
Series	PIC XLP mTouch 16F Seri.
Speed	32 MHz
Temperature Operating R.	-40 to +125 ?C
Temperature Range	-40 to 125 C
Timer Resolution	8, 16 bit
Timers	1 x 16 bit, 4 x 8 bit
Type	PIC
USB Channels	1 x Device
Voltage Range	1.8-5.5 V
Width	0 in

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Newark	73R8381	1.67	402	59		MICROCHIP		1.67 @ 402
	Onlinecomponents.com	PIC16F1828-E/SS	2.12	1	59		Microchip Tech.		2.12 @ 1
	us.rs-online.com	70047826	4.11	1263	59		Microchip Technology Inc.		4.11 @ 1263
