Description:

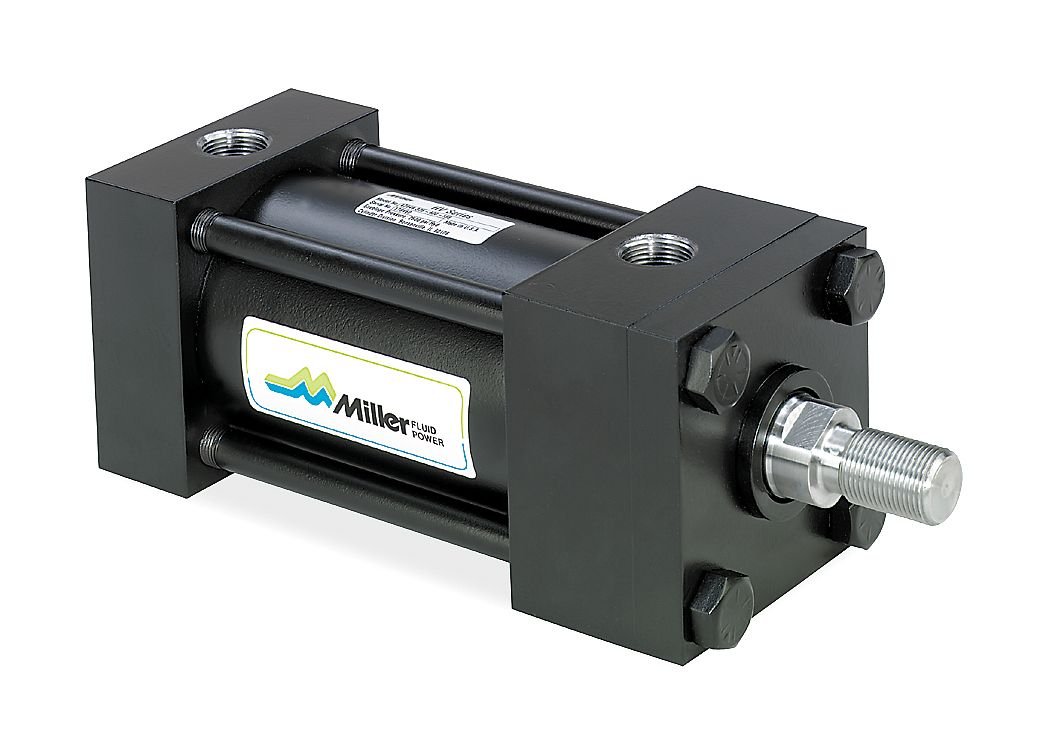

Standard National Fluid Power Association (NFPA) tie-rod hydraulic cylinders are double-acting steel cylinders rated to 2500 psi. Double-acting cylinders provide power in both directions, allowing for more precise positioning than single-acting cylinders. The rod is made of hard chrome-plated case-hardened steel to extend service life and provide smooth movement. An adjustable cushion slows piston speed near the end of the stroke to reduce impact stress and reduce vibration. Seals are replaceable and can be used with most hydraulic fluid. National Fluid Power Association (NFPA) tie-rod hydraulic cylinders have four rods (bolts) that connect the ends of a double-acting hydraulic cylinder to add strength and stability to cylinder and prevent it from coming apart under pressure. They are built to NFPA and Joint Industrial Council (JIC) standards, making them interchangeable with all cylinders that have the same specifications and are built to those standards. Tie-rod cylinders are linear actuators used to support, lift, and press heavy loads in agricultural equipment, industrial machinery, and construction equipment. This listing is for each. Technical Specification Item Hydraulic Cylinder Cylinder Style NFPA Tie-Rod Duty Rating Standard Duty Bore Dia. 2 Stroke Length 4 Max. Pressure 2500 psi Retracted Length 11-1/8 Rod Dia. 1 Port Size 1/2 NPT Single Acting/Double Acting Double Acting Max. Push Capacity 7850 lb. Adjustable Cushion No Adjustable Cushion Switch Ready Not Switch Ready Extended Length 15-1/8 Rod Thread Size 3/4-16 Temp. Range 20 to 160 Piston Material Urethane Ring Material Cast Iron Tie Rods High Strength Rod Seal Type Single, Bi-directional Dynamic Piston Seal Type Pre-loaded Finish Black Standards NFPA and JIC
Weight:
15.0
Weight:
15.0 LB
