Description:

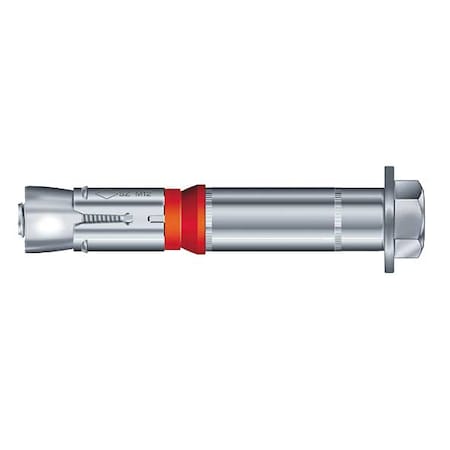

Wedge Anchor Bolt, System of Measurement Metric, Anchor Diameter 10 mm, Thread Size M6, Overall Length 95 mm, Thread Length Not Applicable, Eyelet Hole Size Not Applicable, Material Steel, Material Grade/Class Class 8.8, Finish Zinc Plated, Compatible Material Concrete, Drill Bit Size 10 mm, Minimum Installation Depth 60 mm, Minimum Material Thickness 101 19/32 mm, Ultimate Shear Strength (4,000 psi Concrete) 5,620 lb, Ultimate Tension Strength (4,000 psi Concrete) 3,765 lb, Nut Width 10 mm
Attributes
| Key ^ | Value |
|---|---|
| Allowable Shear in 2500 PSI Cracked Concrete (Lbs.), Allowable Shear in 2500 PSI Uncracked Concrete (Lbs.), Allowable Shear in 6500 PSI Cracked Concrete (Lbs.), Allowable Shear in 6500 PSI Uncracked Concrete (Lbs.) | 1670 |
| Allowable Tension in 2500 PSI Cracked Concrete (Lbs.) | 484 |
| Allowable Tension in 2500 PSI Uncracked Concrete (Lbs.) | 1539 |
| Allowable Tension in 6500 PSI Cracked Concrete (Lbs.) | 778 |
| Allowable Tension in 6500 PSI Uncracked Concrete (Lbs.) | 1927 |
| Anchor Diameter | 10 mm |
| Compatible Material | Concrete |
| Embedment In Concrete, Minimum Installation Depth | 50 mm |
| Finish | Zinc Plated |
| Industry Standards | ACI 355.2/ETA-02-0030 |
| Item | Wedge Anchor |
| Material | Steel |
| Material Grade | Class 8.8 |
| Maximum Material Thickness | 30 mm |
| Overall Length | 95 mm |
| Package Quantity | 50 |
| Seismic Approved | Yes |
| Sub-Brand | SZ-S |
| Thread Size | M6-1.00 |
