- mpn0026603050
- brandname: Molex
- manufacturername: Molex

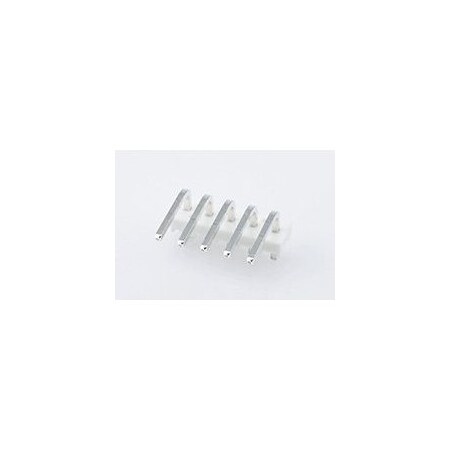

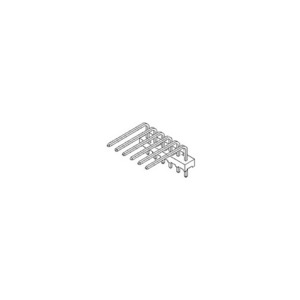

Molex / Waldom 26-60-3050 Connector Headers and PCB Receptacles
- Brand: Molex / Waldom
- PartNumber: 26-60-3050
- PackageQuantity: 1
- Manufacturer: Molex / Waldom
- Label: Molex / Waldom
Attributes
| Key | Value |
|---|
| Alternate Part No. | 538-26-60-3050 |
| Applications | Automotive, General Pur. |
| Base Product Number | 002660 |
| Brand | Molex |
| Category | Connectors, Interconnec. |
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Finish Thicknes. | 60.0, 60.0?in (1.52?m) |
| Contact Finish Thicknes. | 60.0, 60.0?in (1.52?m) |
| Contact Length - Mating | 0.585" (14.86mm) |
| Contact Length - Post | 0.140" (3.56mm) |
| Contact Material | Brass, - |
| Contact Plating | Tin |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 7 A |
| Current Rating (Amps) | - |
| Description | CONN HEADER R/A 5POS 3.. |
| Detailed Description | Connector Header Throug. |
| Digi-Key Part Number | WM20986-ND |
| Fastening Type | Push-Pull |
| Features | - |
| Housing Material | Polyester |
| Ingress Protection | - |
| Insulation Color | Natural |
| Insulation Height | 0.130" (3.30mm) |
| Insulation Material | Polyester, Glass Filled |
| Lead Free Status / RoHS. | RoHS Compliant |
| Manufacturer | Molex |
| Manufacturer Part No. | 26-60-3050 |
| Manufacturer Part Number | 0026603050 |
| Manufacturer Product Nu. | 0026603050 |
| Manufacturer Standard L. | 55 Weeks, 16 Weeks |
| Mated Stacking Heights | - |
| Material Flammability R. | UL94 V-0 |
| Mfr | Molex |
| Mounting Angle | Right |
| Mounting Type | Through Hole, Right Ang. |
| Number of Positions | 5 |
| Number of Positions Loa. | All |
| Number of Rows | 1 |
| Operating Temperature | - |
| Overall Contact Length | - |
| Package | Bulk |
| Packaging | Bulk, Bulk Pack |
| Part # Aliases | 0026603050 41772-0005 |
| Pitch | 3.96 mm |
| Pitch - Mating | 0.156" (3.96mm) |
| Product Category | Headers & Wire Housings |
| Product Status | Active |
| Product Type | Headers |
| Row Spacing - Mating | - |
| Series | 41772, KK396, 41772, KK. |
| Shrouding | Unshrouded |
| Standard Package | 1 |
| Style | Board to Board or Cable |
| Termination | Solder |
| Termination Style | Through Hole |
| Tradename | KK |
| Type | Pin Strip |
| Voltage Rating | 250 V, - |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Verical | 0026603050 | 0.3345 | 500 | 1000 | | Molex | | 0.3345 @ 500 |
| Waldom | MOLEX 26-60-3050 | 0.37 | 150 | 2195 | | MOLEX | | 0.37 @ 150 |
 | jensentools.com | 10159347 | 0.44 | 1 | 2 | | Molex | | 0.44 @ 2 |
| Chip One Stop Global | C1S516501084499 | 0.45 | 500 | 1001 | | Molex | | 0.45 @ 500 |
| Avnet | 26-60-3050 | 0.49787 | 1 | 2 | | Molex | | 0.49787 @ 2 |
| Onlinecomponents.com | 26-60-3050 | 0.5 | 1 | 2 | | MOLEX / WALDOM | | 0.5 @ 2 |
| Newark | 37B1884 | 0.648 | 150 | 1799 | | MOLEX | | 0.648 @ 100 |
 | Digi-Key | 3159594 | 1.03 | 1 | 3061 | | Molex | | 1.03 @ 2 |
 | swatee.com | 26-60-3050 | 1.46 | 1 | 232 | | Molex | | 1.46 @ 2 |
 | Zoro | G2757514 | 111.0 | 1 | 2 | | Molex | | 111.0 @ 2 |
