Molex / Waldom 26-60-3140

mpn0026603140
brandname: Molex
manufacturername: Molex

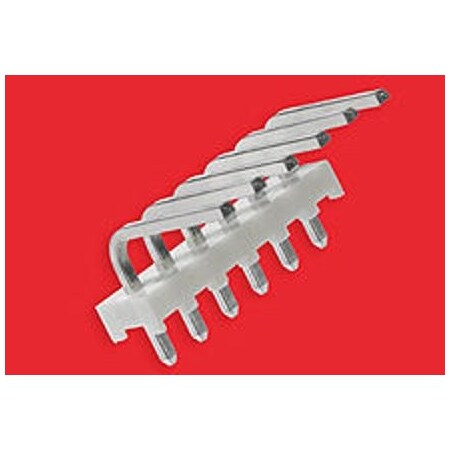

26-60-3140, Conn Unshrouded Header HDR 14 POS 3.96mm Solder RA Thru-Hole KK Bag (25 Items)

26-60-3140, Conn Unshrouded Header HDR 14 POS 3.96mm Solder RA Thru-Hole KK Bag (25 Items)

zoom

Brand: Molex / Waldom
PartNumber: 26-60-3140
Model: 26-60-3140
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Applications	Automotive, General Pur.
Base Product Number	002660
Category	Connectors, Interconnec.
Color	Natural
Connector Type	Header
Contact Finish	Tin Plated
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	60.0?in (1.52?m)
Contact Finish Thicknes.	60.0?in (1.52?m)
Contact Length - Mating	0.585" (14.86mm)
Contact Length - Post	0.140" (3.56mm)
Contact Material	-
Contact Plating Thickne.	5.08 ?m
Contact Shape	Square
Contact Type	Male Pin
Current Rating	7 A
Current Rating (Amps)	-
Description	CONN HEADER R/A 14POS 3.
Detailed Description	Connector Header Throug.
Digi-Key Part Number	0026603140-ND
Fastening Type	Push-Pull
Features	-
Flammability Rating	UL 94V-0
Hole Center to Center	3.96 mm
Ingress Protection	-
Insulation Color	Natural
Insulation Height	0.130" (3.30mm)
Insulation Material	Polyester, Glass Filled
Manufacturer	Molex
Manufacturer Product Nu.	0026603140
Manufacturer Standard L.	11 Weeks
Mated Stacking Heights	-
Material	Polyester
Material Flammability R.	UL94 V-0
Max. Temp.	235?C
Max. Voltage	250V
Mfr	Molex
Mounting Type	Through Hole, Right Ang.
Number of Contacts	14
Number of Positions	14
Number of Positions Loa.	All
Number of Rows	1
Operating Temperature	-
Overall Contact Length	-
Package	Bulk
Pitch - Mating	0.156" (3.96mm)
Product Status	Active
Row Spacing - Mating	-
Series	KK396, 41772
Shrouding	Unshrouded
Standards	CSA Certified; UL E29179
Style	Board to Board or Cable
Terminal Finish	Tin Plated
Terminal Type	Through Hole
Termination	Solder
Voltage Rating	-

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Verical	26-60-3140	1.24	26	321		Molex		1.24 @ 26
	Waldom	MOLEX 26-60-3140	1.56	35	802		MOLEX		1.56 @ 35
	Onlinecomponents.com	26-60-3140	1.82	1	802		MOLEX / WALDOM		1.82 @ 1
	jensentools.com	10159353	2.08	1	802		Molex		2.08 @ 1
	Digi-Key	3159631	2.40539	750	41		Molex		2.40539 @ 750
	Newark	25M2024	2.53	35	802		MOLEX		2.53 @ 25
	Mouser	538-26-60-3140	2.65	1	98		Molex		2.65 @ 1
	Radwell	26-60-3140	6.0	63	41		MOLEX		6.0 @ 63
	AmazonSC	B07QN8G51C	69.86	1	41		Molex / Waldom		69.86 @ 1
	Zoro	G705892846	89.25	1	41		Molex		89.25 @ 1
