Molex / Waldom 26-60-4050

mpn0026604050
brandname: Molex
manufacturername: Molex

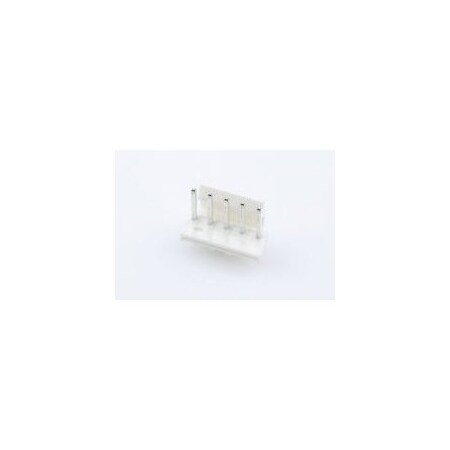

Molex / Waldom 26-60-4050 Connector Headers and PCB Receptacles

Molex / Waldom 26-60-4050 Connector Headers and PCB Receptacles

zoom

Brand: Molex / Waldom
PartNumber: 26-60-4050
PackageQuantity: 1
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Agency Approvals	CSA ; UL
Alternate Mfr Part Numb.	41791-0005
Angle	Straight
Category	Connectors, Interconnec.
Color	Natural
Connector Type	Male Pin
Contact Finish - Mating	60.0?in (1.52?m)
Contact Finish - Post	-
Contact Finish Thicknes.	Tin
Contact Finish Thicknes.	Automotive, General Pur.
Contact Length - Mating	0.140" (3.56mm)
Contact Length - Post	0.720" (18.29mm)
Contact Material	Polyester, Glass Filled.
Contact Plating	Tin
Contact Shape	Tin
Contact Type	0.156" (3.96mm)
Current Rating	7 A
Current Rating (Amps)	-
Family Name	KK 396
Fastening Type	0.450" (11.43mm)
Features	-
Housing Material	Glass Filled Polyester
Ingress Protection	UL94 V-0
Insulation Color	-
Insulation Height	Square
Insulation Material	-
Mated Stacking Heights	60.0?in (1.52?m)
Material Flammability R.	Natural
Mfr	Molex
Mounting Type	Solder
Number of Circuits	5
Number of Contacts	5
Number of Positions	1
Number of Positions Loa.	Board to Board or Cable
Number of Rows	1, -
Operating Temperature	0 to +75 ?C, -
Orientation	Vertical
Overall Contact Length	0.446" (11.33mm)
Overall Length	0.774 "
Package	Active
Package Quantity	1
Part Status	Header
Pin Length	0.45 "
Pin Spacing	0.156 in
Pitch	3.96 mm (0.156")
Pitch - Mating	5
Plating Material	Tin
Primary Type	Board Mount
Product Header	41791 Series Friction L.
Row Spacing - Mating	All
Series	Bulk, 41791 Series
Shrouding	Through Hole
Special Features	Not Low-Halogen
Style	Shrouded - 1 Wall
Termination	Through Hole, Friction .
Type	Vertical Header
Voltage Rating	250 V, -

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Waldom	MOLEX 26-60-4050	0.196	300	30195		MOLEX		0.196 @ 300
	Onlinecomponents.com	26-60-4050	0.226	1	70624		MOLEX / WALDOM		0.226 @ 10
	NEP Electronics	26-60-4050	0.25	300	36225		Molex		0.25 @ 300
	Component Electronics	704A-5J	0.38	1	170		Molex		0.38 @ 10
	Avnet	0026604050	0.401	1	12580		Molex		0.401 @ 10
	Digi-Key	WM4623-ND	0.413	1	10		Molex		0.413 @ 10
	Newark	33P9306	0.531	1	17360		MOLEX		0.531 @ 10
	us.rs-online.com	70190920	0.59598	4	2372		Molex Incorporated		0.59598 @ 10
	RS Delivers	679-5697	0.6252	1	1300		Molex		0.6252 @ 10
	TME	MX-26-60-4050	0.679	2	180		MOLEX		0.679 @ 10
	Zoro	G2759090	93.0	300	10		Molex		93.0 @ 300
