Molex 26-60-4140

mpn0026604140
brandname: Molex
manufacturername: Molex

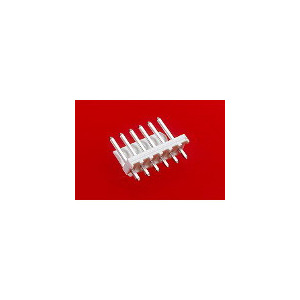

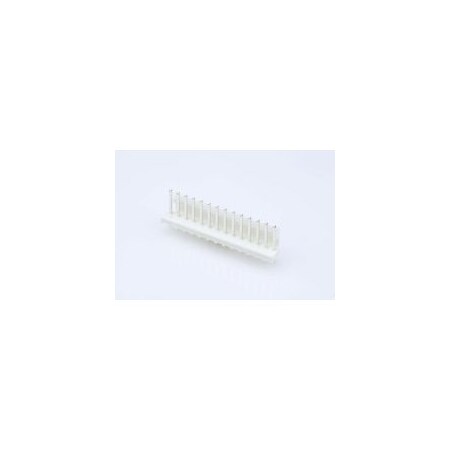

Molex Connector, Header, 14Pos, 1Row, 3.96Mm - 26-60-4140

Molex Connector, Header, 14Pos, 1Row, 3.96Mm - 26-60-4140

zoom

Brand: Molex
PartNumber: 26-60-4140
PackageQuantity: 1
Manufacturer: Molex
Label: Molex

Attributes

Key	Value
Alternate Mfr Part Numb.	41791-0014
Applications	Automotive, General Pur.
Base Product Number	002660
Category	Connectors, Interconnec.
Color	Natural
Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	60.0?in (1.52?m)
Contact Finish Thicknes.	60.0?in (1.52?m)
Contact Length - Mating	0.450" (11.43mm)
Contact Length - Post	0.140" (3.56mm)
Contact Material	-
Contact Shape	Square
Contact Type	Male Pin
Current Rating	7 A
Current Rating (Amps)	-
Description	CONN HEADER VERT 14POS .
Detailed Description	Connector Header Throug.
Digi-Key Part Number	WM24219-ND
Family Name	KK 396
Fastening Type	Friction Lock
Features	-
Ingress Protection	-
Insulation Color	Natural
Insulation Height	0.446" (11.33mm)
Insulation Material	Polyester, Glass Filled
Manufacturer	Molex
Manufacturer Product Nu.	0026604140
Manufacturer Standard L.	21 Weeks
Mated Stacking Heights	-
Material Flammability R.	UL94 V-0
Mfr	Molex
Mounting Type	Through Hole
Number of Circuits	14
Number of Contacts	14
Number of Positions	14
Number of Positions Loa.	All
Number of Rows	1
Operating Temperature	-
Orientation	Vertical
Overall Contact Length	0.720" (18.29mm)
Package	Bulk
Package Quantity	1
Pitch	3.96 mm (0.156")
Pitch - Mating	0.156" (3.96mm)
Plating Material	Tin
Primary Type	Board Mount
Product Status	Active
Row Spacing - Mating	-
Series	41791 Series, KK396, 41.
Shrouding	Shrouded - 1 Wall
Special Features	Not Low-Halogen
Style	Board to Board or Cable
Termination	Solder
Type	Vertical Header
Voltage Rating	-

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Power and Signal Group	0026604140	0.5157	1000	100		Molex		0.5157 @ 1000
	Waldom	MOLEX 26-60-4140	0.77	70	14202		MOLEX		0.77 @ 100
	Onlinecomponents.com	26-60-4140	0.82	1	631		MOLEX / WALDOM		0.82 @ 100
	Component Electronics	704B-14B	0.86	1	350		Molex		0.86 @ 100
	Digi-Key	265718	0.9937	1	11135		Molex		0.9937 @ 100
	jensentools.com	10159361	1.03	1	14202		Molex		1.03 @ 100
	Newark	01E9925	1.14	1	149		MOLEX		1.14 @ 100
	us.rs-online.com	70374388	1.40113	1	100		Molex Incorporated		1.40113 @ 100
	Radwell	26-60-4140	2.75	1	100		MOLEX		2.75 @ 100
	Zoro	G2764191	108.5	70	100		Molex		108.5 @ 100
