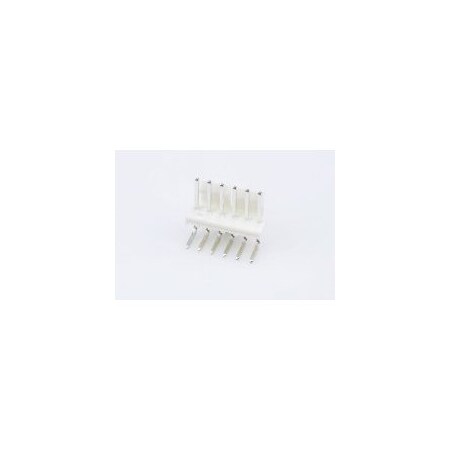

Molex / Waldom 26-60-5060 Connector Headers and PCB Receptacles
- Brand: Molex / Waldom
- PartNumber: 26-60-5060
- PackageQuantity: 1
- Binding: Electronics
- Manufacturer: Molex / Waldom
- Label: Molex / Waldom
Attributes
| Key | Value |
|---|
| Alternate Mfr Part Numb. | 41792-0006 |
| Applications | Automotive, General Pur. |
| ASIN | B00OVF12J8 |
| Base Product Number | 002660 |
| Category | Connectors, Interconnec. |
| Color | Natural |
| connector gender | m |
| Connector Type | Header, Male Pin |
| Contact Finish - Mating | Tin, 60.0?in (1.52?m) |
| Contact Finish - Post | Tin, - |
| Contact Finish Thicknes. | Tin, 60.0?in (1.52?m) |
| Contact Finish Thicknes. | Automotive, General Pur. |
| Contact Length - Mating | 0.156" (3.96mm), 0.450". |
| Contact Length - Post | -, 0.156" (3.96mm) |
| Contact Material | Polyester, Glass Filled. |
| Contact Shape | Tin, Square |
| Contact Type | Male Pin, 0.156" (3.96m. |
| Current Rating | 7 A |
| Current Rating (Amps) | - |
| Description | CONN HEADER R/A 6POS 3.. |
| Detailed Description | Connector Header Throug. |
| Digi-Key Part Number | WM4644-ND |
| Family Name | KK 396 |
| Fastening Type | Friction Lock, 0.450" (. |
| Features | - |
| Ingress Protection | UL94 V-0, - |
| Insulation Color | Natural, - |
| Insulation Height | 0.394" (10.00mm), Square |
| Insulation Material | Polyester, Glass Filled. |
| Item model number | 26-60-5060 |
| item per pack | 1 |
| Manufacturer | Molex |
| Manufacturer Product Nu. | 0026605060 |
| Manufacturer Standard L. | 19 Weeks |
| Mated Stacking Heights | -, 60.0?in (1.52?m) |
| Material Flammability R. | UL94 V-0, Natural |
| Mfr | Molex |
| mounting type | pcb |
| Mounting Type | Solder, Through Hole, R. |
| Number of Circuits | 6 |
| number of contacts | 6 |
| Number of Contacts | 6 |
| Number of Positions | 1, 6 |
| Number of Positions Loa. | All, Board to Board or . |
| Number of Rows | 1, - |
| Operating Temperature | - |
| Orientation | Right Angle |
| Overall Contact Length | 0.394" (10.00mm), - |
| Package | Bulk, - |
| package | Bulk |
| Package Quantity | 1 |
| Part Status | Header |
| Pitch | 3.96 mm (0.156") |
| Pitch - Mating | 0.156" (3.96mm), 6 |
| Plating Material | Tin |
| Primary Type | Board Mount |
| Product Status | Active |
| Row Spacing - Mating | All, - |
| Series | Bulk, 41792 Series, KK3. |
| Shrouding | Shrouded - 1 Wall, Thro. |
| Special Features | Not Low-Halogen |
| Style | Shrouded - 1 Wall, Boar. |
| Termination | Solder, Friction Lock |
| Type | Right Angle Header |
| Voltage Rating | - |
