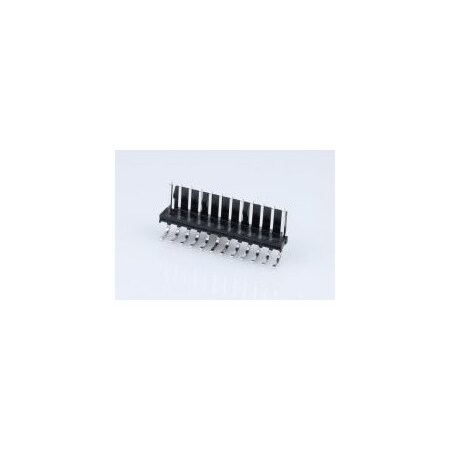

26-60-5120, Conn Wire to Board HDR 12 POS 3.96mm Solder RA Thru-Hole KK Bag (25 Items)

26-60-5120, Conn Wire to Board HDR 12 POS 3.96mm Solder RA Thru-Hole KK Bag (25 Items)zoom

Attributes

Key Value
Alternate Mfr Part Numb.41792-0012
ApplicationsAutomotive, General Pur.
Base Product Number002660
CategoryConnectors, Interconnec.
ColorNatural
Connector TypeHeader
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.60.0?in (1.52?m)
Contact Finish Thicknes.60.0?in (1.52?m)
Contact Length - Mating0.450" (11.43mm)
Contact Length - Post0.156" (3.96mm)
Contact Material-
Contact ShapeSquare
Contact TypeMale Pin
Current Rating7 A
Current Rating (Amps)-
DescriptionCONN HEADER R/A 12POS 3.
Detailed DescriptionConnector Header Throug.
Digi-Key Part Number23-0026605120-ND
Family NameKK 396
Fastening TypeFriction Lock
Features-
Ingress Protection-
Insulation ColorNatural
Insulation Height0.394" (10.00mm)
Insulation MaterialPolyester, Glass Filled
ManufacturerMolex
Manufacturer Product Nu.0026605120
Manufacturer Standard L.35 Weeks
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrMolex
Mounting TypeThrough Hole, Right Ang.
Number of Circuits12
Number of Contacts12
Number of Positions12
Number of Positions Loa.All
Number of Rows1
Operating Temperature-
OrientationRight Angle
Overall Contact Length-
PackageBulk
Package Quantity1
Pitch3.96 mm (0.156")
Pitch - Mating0.156" (3.96mm)
Plating MaterialTin
Primary TypeBoard Mount
Product StatusActive
Row Spacing - Mating-
Series41792 Series, KK396, 41.
ShroudingShrouded - 1 Wall
Special FeaturesNot Low-Halogen
StyleBoard to Board or Cable
TerminationSolder
TypeRight Angle Header
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomMOLEX 26-60-51200.85657236MOLEX0.85 @ 65
Onlinecomponents.com26-60-51201.14123503MOLEX / WALDOM1.14 @ 1
thumbzoomNewark18M80261.736528812MOLEX1.73 @ 50
thumbzoomDigi-Key1906952.18126619Molex2.18 @ 1
RS Delivers670-3073P2.8152142Molex2.8152 @ 1
us.rs-online.com703736272.991033Molex Incorporated2.99 @ 10
thumbzoomRadwell26-60-51204.019MOLEX4.0 @ 1
thumbzoomZoroG276548894.251In StockMolex94.25 @ 1
