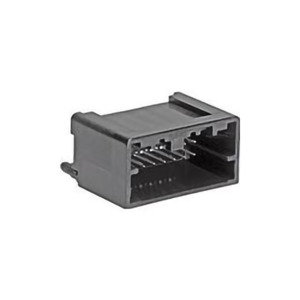

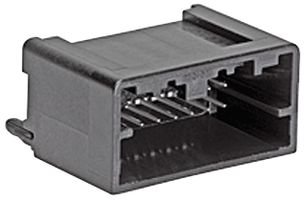

Molex 34825-0124

mpn0348250124
brandname: Molex
manufacturername: Molex

MOLEX 34825-0124

MOLEX 34825-0124

zoom

Brand: Molex
PartNumber: 34825-0124
Model: 34825-0124
PackageQuantity: 1
Manufacturer: MOLEX
Label: MOLEX

Attributes

Key	Value
Applications	Automotive
Base Product Number	034825
Category	Connectors, Interconnec.
Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	-
Contact Finish Thicknes.	-
Contact Length - Mating	0.218" (5.55mm)
Contact Length - Post	0.113" (2.87mm)
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	-
Description	CONN HEADER VERT 12POS .
Detailed Description	Connector Header Throug.
Digi-Key Part Number	WM10326-ND
Fastening Type	Latch Holder
Features	Board Guide, Solder Ret.
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.614" (15.60mm)
Insulation Material	Syndiotactic Polystyren.
Manufacturer	Molex
Manufacturer Product Nu.	0348250124
Manufacturer Standard L.	17 Weeks
Mated Stacking Heights	-
Material Flammability R.	UL94 V-0
Mfr	Molex
Mounting Type	Through Hole
Number of Positions	12
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-
Overall Contact Length	-
Package	Tray
Pitch - Mating	0.079" (2.00mm)
Product Status	Active
Row Spacing - Mating	-
Series	Mini50 34825
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	-

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Waldom	MOLEX 34825-0124	0.82	65	9820		MOLEX		0.82 @ 65
	TTI	34825-0124	0.87	100	2080		Molex		0.87 @ 100
	jensentools.com	10159814	1.09	1	9820		Molex		1.09 @ 1
	Newark	18X9654	1.34	2080	74		MOLEX		1.34 @ 2080
	Hotenda	H1364845	1.57	1	346		Molex		1.57 @ 1
	Mouser	538-34825-0124	1.64	1	1177		Molex		1.64 @ 1
	Digi-Key	4504599	2.328	1	2646		Molex		2.328 @ 1
