Molex / Waldom 39530-0008

B0105J3642

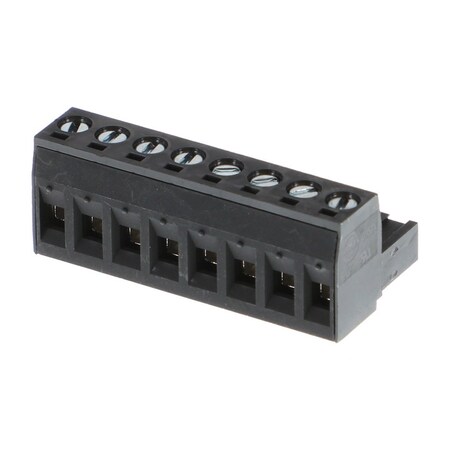

Molex / Waldom 39530-0008 Connector Terminal Blocks

Molex / Waldom 39530-0008 Connector Terminal Blockszoom

Attributes

Key Value
Agency ApprovalsUL ; cULus ; cCSAus ; C.
Alternate Mfr Part Numb.395300008
Alternate Part No.538-39530-0008
BrandMolex
Circuits (Loaded)8
ColorBlack
Connection MethodScrew
Contact MaterialCopper Alloy
Contact PlatingTin
Current - Maximum per C.18.0A
Current Rating18 A
Entry AngleVertical
Family NameESE
Housing MaterialNylon
Lock to Mating PartYes
ManufacturerMolex
Manufacturer Part No.39530-0008
Mounting AngleHorizontal
Mounting TypePCB Mount
Number of Circuits8
Number of Positions8
Number of Rows1
OrientationHorizontal
Panel MountNo
Part # Aliases0395300008
Pin Spacing5.08 mm
Pitch5.08 mm
Pitch - Mating Interface5.08mm
Pitch - Termination Int.5.08mm
Polarized to Mating PartYes
Primary TypePCB Mount
ProductPlugs
Product CategoryPluggable Terminal Bloc.
Series39530, 39530 Series
Special FeaturesLow-Halogen
StackableNo
Temperature Range - Ope.-40? to +105?C
TerminationSocket
TradenameEurostyle
TypePlug
ULE48521
Voltage - Maximum300V
Voltage Rating300 V
Wire EntryTop
Wire Gauge Max12
Wire Gauge Min26
Wire Gauge Range26-12
Wire OrientationVertical
Wire Size12 to 26 AWG
Wire Size AWG12, 14, 16, 18, 20, 22,.
Wire Size mm?0.13-3.31
Wire Termination TypeScrew

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomMOLEX 39530-00082.1301655MOLEX2.1 @ 30
Heilind Electronics39530-00082.2974702158MOLEX2.2974 @ 70
Power and Signal Group03953000082.561108039Molex2.561 @ 1080
Onlinecomponents.com39530-00082.641179MOLEX / WALDOM2.64 @ 1
Avnet03953000082.83411470Molex2.834 @ 1
thumbzoomjensentools.com101888233.5111464Molex3.51 @ 1
thumbzoomNewark20M73073.94108025MOLEX3.94 @ 1080
us.rs-online.com701111104.15120Molex Incorporated4.15 @ 1
HotendaH15402955.45125Molex5.45 @ 1
Arrow39530-00085.8481495Molex5.848 @ 1
thumbzoomswatee.com39530-00086.581163Molex6.58 @ 1
thumbzoomRadwell39530-00089.0125MOLEX9.0 @ 1
thumbzoomZoroG605798217112.5139Molex112.5 @ 1
