Molex / Waldom 39530-0202

B00NSD0SIU

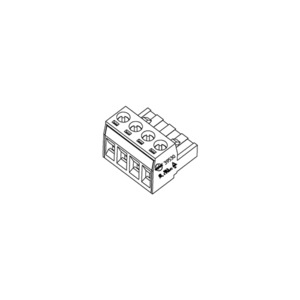

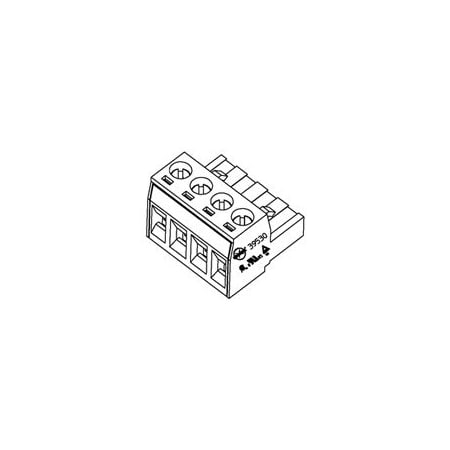

Molex / Waldom 39530-0202 Connector Terminal Blocks

Molex / Waldom 39530-0202 Connector Terminal Blockszoom

Attributes

Key Value
Base Product Number039530
CategoryConnectors, Interconnec.
ColorBlack
Contact MaterialCopper Alloy
Contact Mating FinishTin
Contact Tail Length-
Current - IEC-
Current - UL15 A
DescriptionTERM BLOCK PLUG 2POS ST.
Detailed Description2 Position Terminal Blo.
Digi-Key Part Number0395300202-ND
FeaturesPositions Stamped, Rete.
Header Orientation-
Housing MaterialPolyamide (PA), Nylon
Ingress Protection-
Insulation Height0.591" (15.00mm)
ManufacturerMolex
Manufacturer Product Nu.0395300202
Manufacturer Standard L.12 Weeks
Material Flammability R.-
MfrMolex
Mounting TypeFree Hanging (In-Line)
Number of Levels1
Number of Positions2
Operating Temperature-40?C ~ 115?C
PackageBulk
Package Quantity1
Pitch0.200" (5.08mm)
Plug Wire Entry180?
Positions Per Level2
Product StatusActive
Screw SizeM3
SeriesEurostyle ESE 39530
Termination StyleScrew - Rising Cage Cla.
Torque - Screw0.56 Nm (5.0 Lb-In)
TypePlug, Female Sockets
Voltage - UL300 V
Wire Gauge or Range - A.12-26 AWG
Wire Gauge or Range - m.-
Wire Strip Length5mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com39530-02020.6711235MOLEX / WALDOM0.67 @ 50
WaldomMOLEX 39530-02020.69801180MOLEX0.69 @ 80
thumbzoomjensentools.com101888350.7911180Molex0.79 @ 50
thumbzoomDigi-Key27383720.81522432050Molex0.81522 @ 4320
Newark59R54250.828432050MOLEX0.828 @ 4320
thumbzoomZoroG00591914489.1150Molex89.1 @ 50
