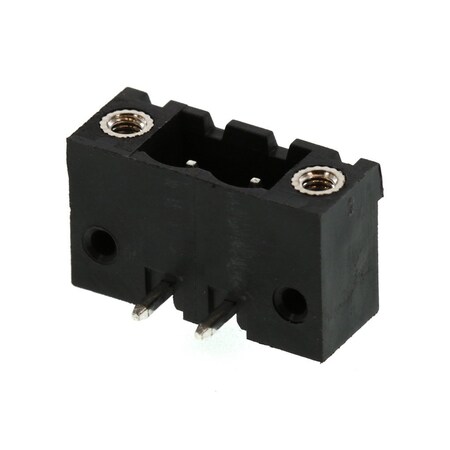

Molex 39536-0002

mpn0395360002
brandname: Molex
manufacturername: Molex

Molex 5.08Mm Euro Header Ra Me Blk 2Ckt - 39536-0002

Brand: Molex
PartNumber: 39536-0002
PackageQuantity: 1
Manufacturer: Molex
Label: Molex

Attributes

Key	Value
Alternate Part No.	538-39536-0002
Base Product Number	039536
Brand	Molex
Category	Connectors, Interconnec.
Circuits (Loaded)	2
Color	Black
Contact Material	Brass
Contact Mating Finish	Tin
Contact Tail Length	-
Current - IEC	-
Current - Maximum per C.	15.0A
Current - UL	18 A
Current Rating	15 A
Description	TERM BLOCK HDR 2POS 90D.
Detailed Description	2 Position Terminal Blo.
Digi-Key Part Number	WM13966-ND
Features	Mating Flange
Header Orientation	90?, Right Angle
Housing Material	Polyamide (PA66), Nylon.
Ingress Protection	-
Insulation Height	-
Lock to Mating Part	Yes
Manufacturer	Molex
Manufacturer Part No.	39536-0002
Manufacturer Product Nu.	0395360002
Manufacturer Standard L.	12 Weeks
Material Flammability R.	UL94 V-0
Mfr	Molex
Mounting Angle	Horizontal
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	2
Number of Rows	1
Operating Temperature	-40?C ~ 105?C
Orientation	Horizontal
Package	Bulk
Package Quantity	1
Panel Mount	No
Part # Aliases	0395360002
Part Status	Active
PC Tail Length	5.08mm
PCB Thickness - Recomme.	3.20mm
Pitch	0.200" (5.08mm), 5.08 mm
Pitch - Mating Interface	5.08mm
Pitch - Termination Int.	5.08mm
Plug Wire Entry	-
Polarized to Mating Part	Yes
Positions Per Level	2
Product Category	Pluggable Terminal Bloc.
Product Status	Active
Screw Size	-
Series	Eurostyle ESE 39536, 39.
Shrouded	Closed Ends
Stackable	No
Temperature Range - Ope.	-40? to +140?C
Termination Style	Solder
Torque - Screw	-
Tradename	Eurostyle
Type	Header, Male Pins, Shro.
UL	E48521
Voltage - Maximum	300V
Voltage - UL	300 V
Voltage Rating	300 V
Wire Gauge or Range - A.	-
Wire Gauge or Range - m.	-
Wire Strip Length	-

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Waldom	MOLEX 39536-0002	0.31	200	8640	MOLEX	0.31 @ 200
Onlinecomponents.com	39536-0002	0.395	1	372	MOLEX / WALDOM	0.395 @ 5
Newark	03N6722	0.669	1	8620	MOLEX	0.669 @ 5
Hotenda	H1581626	1.2	1	5	Molex	1.2 @ 5
swatee.com	39536-0002	1.2	1	101	Molex	1.2 @ 5
Digi-Key	2740146	1.248	1	554	Molex	1.248 @ 5
Radwell	39536-0002	1.4	180	5	MOLEX	1.4 @ 180
Zoro	G705919062	3067.2	1	5	Molex	3067.2 @ 5
