Molex 39544-3003

B005T87IDK

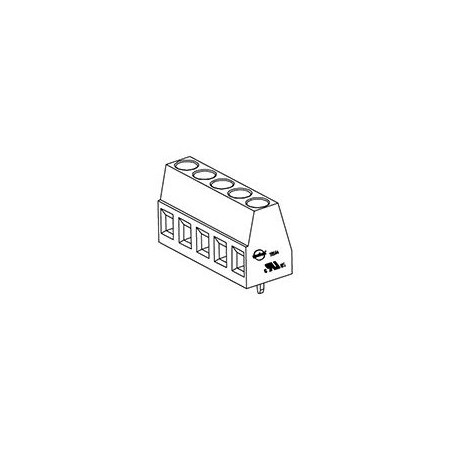

Molex Tb, Wire to BRD, 3Pos, 12Awg - 39544-3003

Molex Tb, Wire to BRD, 3Pos, 12Awg - 39544-3003zoom

Attributes

Key Value
Circuits (Loaded)3
Clamp Material - PlatingBrass - Nickel Plated
ColorBlack
Contact Material - Plat.Brass - Tin Plated
Current15 A
Current - Maximum per C.15.0A
Current Rating15 A
Duration at Max. Proces.5
Entry AngleHorizontal
Family NameESE
Features-
Housing MaterialPolyamide (PA66), Nylon.
Lock to Mating PartNone
Mating OrientationHorizontal with Board
Max. Cycles at Max. Pro.135
MfrMolex
Mounting TypeThrough Hole
Number of Circuits3
Number of Levels1
Number of Rows1
Operating Temperature-40?C ~ 105?C
OrientationVertical
Package Quantity1
Panel MountNo
Part StatusActive
PC Tail Length3.00mm
PCB Thickness - Recomme.2.00mm
Pitch0.200" (5.08mm)
Pitch - Mating Interface5.08mm
Pitch - Termination Int.5.08mm
Positions Per Level3
Process Temperature max.260
Screw Material - PlatingSteel - Zinc Plated
Screw ThreadM3
Series39544 Series
StackableNo
Temperature Range - Ope.-40? to +105?C
Torque - Screw0.51 Nm (4.5 Lb-In)
ULE48521
Voltage300 V
Voltage - Maximum300V
Wire Gauge12-30 AWG
Wire Size AWG12, 14, 16, 18, 20, 22
Wire Size mm?0.33-3.31
Wire TerminationScrew - Rising Cage Cla.
