Molex / Waldom 39-30-1160

B00OOIFIJ2

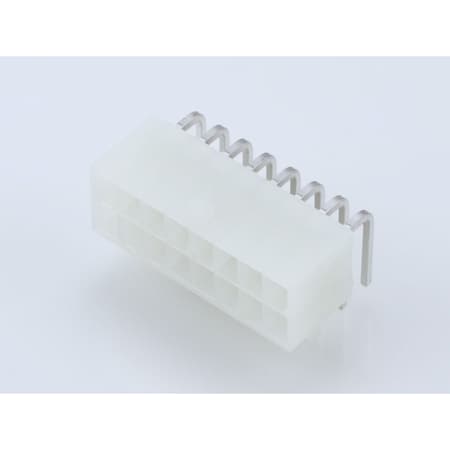

Molex / Waldom 39-30-1160 Connector Power

Molex / Waldom 39-30-1160 Connector Powerzoom

Attributes

Key Value
Agency ApprovalsCSA ; UL ; TUV
Alternate Mfr Part Numb.5569-16A2
Alternate Part No.538-39-30-1160
AngleRight Angle
ASINB00OVERVOO
BrandMolex
ColorNatural
ColourNatural
Connectorsocket
Connector pinout layout2x8
Connector seriesMini-Fit Jr.
Contact FinishMatte Tin Plated
Contact GenderPin (Male)
Contact MaterialBrass
Contact PlatingTin
Contact platingtinned
Contact Plating Thickne.2.54 ?m
Contacts pitch4.2mm
Current Rating13 A
Electrical mountingTHT
Family NameMini-Fit Jr.
Flammability RatingUL 94V-2
Flammability ratingUL94V-2
Hole Center to Center4.2 mm
Housing MaterialNylon
Item model number39-30-1160
Kind of connectormale
Locking systemlatch
ManufacturerMolex
Manufacturer Part No.39-30-1160
MaterialNylon
Max. Temp.240?C
Max. Voltage600V AC/DC
Maximum current13A
Mechanical mountingPCB snap
Mounting AngleRight
Number of Circuits16
Number of Contacts16
Number of pins16
Number of Positions16
Number of Rows2
Operating Temperature-40 to +105 ?C
OrientationRight Angle
Overall Length1.37 "
PackagingBulk
Part # Aliases0039301160 5569-16A2
Pin Length0.14 "
Pin Spacing0.165 in
Pitch4.2 mm, 4.20 mm (0.165")
Plating MaterialMatte Tin
Primary TypeSoft Shell
Product CategoryHeaders & Wire Housings
Product HeaderWire-to-Board PCB Header
Product TypeHeader Assemblies
Row Spacing5.5 mm
Series5569, 5569 Series
Spatial orientationangled 90?
Special FeaturesLow-Halogen
StandardsCSA Certified; UL E29179
Terminal FinishMatte Tin Plated
Terminal TypeThrough Hole
TerminationThrough Hole
Termination StyleThrough Hole
TradenameMini-Fit Jr.
TypeRight Angle Header, Pin.
Type of connectorwire-board
Voltage Rating600 V
