Molex / Waldom 87760-0416

B00GQRDBC0

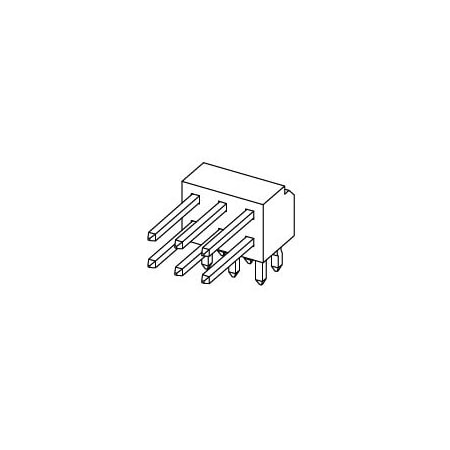

Molex / Waldom 87760-0416 Connector Headers and PCB Receptacles

Molex / Waldom 87760-0416 Connector Headers and PCB Receptacleszoom

Attributes

Key Value
Alternate Part No.538-87760-0416
ApplicationsAutomotive, General Pur.
Base Product Number087760
BrandMolex
CategoryConnectors, Interconnec.
Circuits (Loaded)4
Circuits (maximum)4
Color - ResinBlack
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thicknes.15.0?in (0.38?m)
Contact Finish Thicknes.78.7?in (2.00?m)
Contact Length - Mating0.157" (4.00mm)
Contact Length - Post0.102" (2.60mm)
Contact MaterialBrass, Phosphor Bronze
Contact PlatingGold
Contact ShapeSquare
Contact TypeMale Pin
CSALR19980
Current - Maximum per C.2.0A
Current Rating2 A
Current Rating (Amps)-
DescriptionCONN HEADER R/A 4POS 2MM
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberWM18612-ND
Duration at Max. Proces.14
Fastening TypePush-Pull
Features-
Flammability94V-0
Housing MaterialThermoplastic
Ingress Protection-
Insulation ColorBlack
Insulation Height0.169" (4.30mm)
Insulation MaterialPolycyclohexylenedimeth.
ManufacturerMolex
Manufacturer Part No.87760-0416
Manufacturer Product Nu.0877600416
Manufacturer Standard L.24 Weeks
Mated Height4.00mm
Mated Stacking Heights-
Material - MetalPhosphor Bronze
Material - Plating Term.Tin
Material - ResinHigh Temperature Thermo.
Material Flammability R.UL94 V-0
Max. Cycles at Max. Pro.1
MfrMolex
Mounting TypeThrough Hole, Right Ang.
Number of Positions4
Number of Positions Loa.All
Number of Rows2
Operating Temperature-
Overall Contact Length-
PackageTray
PackagingTray
Part # Aliases0877600416
PC Tail Length2.60mm
PCB Thickness - Recomme.1.60mm
Pitch2 mm
Pitch - Mating0.079" (2.00mm)
Pitch - Mating Interface2.00mm
Pitch - Termination Int.2.00mm
Plating min - Mating0.381?m
Plating min - Terminati.1.905?m
Product CategoryHeaders & Wire Housings
Product StatusActive
Product TypeHeaders
Row Spacing - Mating0.079" (2.00mm)
SeriesMilli-Grid 87760, 87760
ShroudingUnshrouded
StackableYes
StyleBoard to Board or Cable
Surface Mount Compatibl.Yes
Temperature Range - Ope.-55? to +105?C
TerminationSolder
Termination Interface: .Through Hole
Termination StyleThrough Hole
TradenameMilli-Grid
TypeUnshrouded
Voltage - Maximum125V
Voltage Rating-, 125 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Verical87760-04160.2181471284Molex0.218 @ 147
Onlinecomponents.com87760-04160.2571196MOLEX / WALDOM0.257 @ 1
WaldomMOLEX 87760-04160.2882003683MOLEX0.288 @ 200
jensentools.com101976970.321312Molex0.32 @ 1
thumbzoomDigi-Key6624550.49142453Molex0.49 @ 1
thumbzoomNewark25M57150.573138MOLEX0.573 @ 1
thumbzoomswatee.com87760-04161.1514002Molex1.15 @ 1
AmazonSCB005T9573W2.86134Molex2.86 @ 1
AmazonTPB005T9573W5.9913122MOLEX5.99 @ 1
thumbzoomZoroG4048594105.0250312Molex105.0 @ 250
