Molex 90130-1106

mpn0901301106
brandname: Molex
manufacturername: Molex

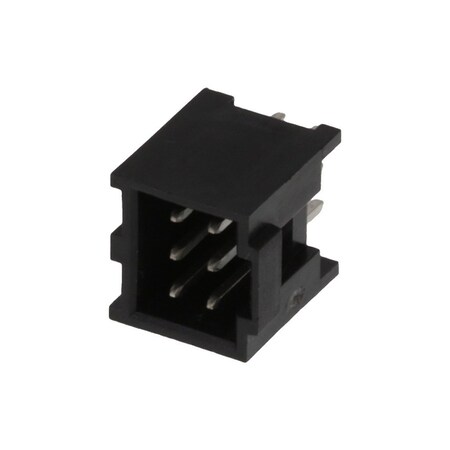

MOLEX 90130-1106 WIRE-BOARD CONNECTOR HEADER 6POS, 2.54MM (1 piece)

MOLEX 90130-1106 WIRE-BOARD CONNECTOR HEADER 6POS, 2.54MM (1 piece)

zoom

Brand: Molex
PartNumber: 90130-1106
Model: 90130-1106
PackageQuantity: 1
Binding: Electronics
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Alternate Mfr Part Numb.	901301106
Applications	Automotive, General Pur.
Color	Black
Connector	socket
Connector pinout layout	2x3
Connector series	C-Grid III
Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	118.1?in (3.00?m)
Contact Finish Thicknes.	-
Contact Length - Mating	0.266" (6.75mm)
Contact Length - Post	0.114" (2.90mm)
Contact Material	Brass
Contact plating	tinned
Contact Shape	Square
Contact Type	Male Pin
Contacts pitch	2.54mm
Current Rating	3 A
Current Rating (Amps)	-
Electrical mounting	THT
Family Name	C-Grid III
Fastening Type	Latch Holder
Features	-
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.429" (10.90mm)
Insulation Material	Polyester, Glass Filled
Kind of connector	male
Manufacturer	Molex
Mated Stacking Heights	-
Material Flammability R.	UL94 V-0
Mfr	Molex
Mounting Type	Through Hole
Number of Circuits	6
Number of Contacts	6
Number of pins	6
Number of Positions	6
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-
Orientation	Vertical
Overall Contact Length	0.510" (12.95mm)
Package Quantity	1
Part Status	Active
Pitch	2.54 mm (0.100")
Pitch - Mating	0.100" (2.54mm)
Plating Material	Tin
Primary Type	Board Mount
Row Spacing - Mating	0.100" (2.54mm)
Series	90130 Series
Shrouding	Shrouded - 4 Wall
Spatial orientation	straight
Special Features	Not Low-Halogen
Style	Board to Cable/Wire
Termination	Solder
Type	Vertical Header
Type of connector	rectangular
Voltage Rating	-

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Newark	85C1131	0.305	1	25		MOLEX		0.305 @ 25
	Onlinecomponents.com	90130-1106	0.55	1	21823		MOLEX / WALDOM		0.55 @ 25
	Arrow	90130-1106	0.581	1	14218		Molex		0.581 @ 25
	Waldom	MOLEX 90130-1106	0.65	85	25		MOLEX		0.65 @ 85
	jensentools.com	10198214	0.78	1	8508		Molex		0.78 @ 25
	NEP Electronics	90130-1106	0.8971	85	31176		Molex		0.8971 @ 85
	Hotenda	H1302554	0.91	1	25		Molex		0.91 @ 25
	Zoro	G2766212	1.19	85	25		Molex		1.19 @ 85
	TME	MX-90130-1106	1.41	1	634		MOLEX		1.41 @ 25
	us.rs-online.com	70373672	2.15	5	25		Molex Incorporated		2.15 @ 25
	RS Delivers	670-3269P	2.376	1	530		Molex		2.376 @ 25
