- mpn0901301112
- brandname: Molex
- manufacturername: Molex

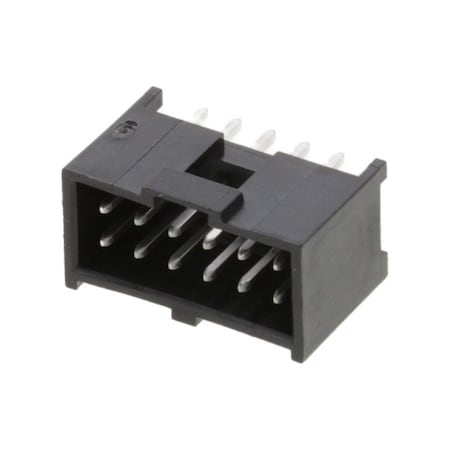

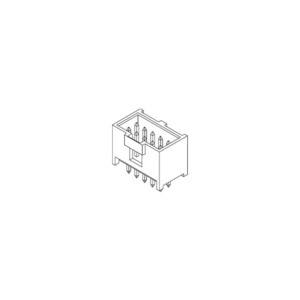

90130-1112, Conn Shrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole C-Grid III Tray (50 Items)
- Brand: Molex / Waldom
- PartNumber: 90130-1112
- Model: 90130-1112
- Manufacturer: Molex / Waldom
- Label: Molex / Waldom
Attributes
| Key | Value |
|---|
| Applications | Automotive, General Pur. |
| Base Product Number | 090130 |
| Category | Connectors, Interconnec. |
| Color | Black |
| Connector Type | Header, Male Pin |
| Contact Finish | Tin Plated |
| Contact Finish - Mating | 118.1?in (3.00?m), Tin |
| Contact Finish - Post | Brass, Tin |
| Contact Finish Thicknes. | Tin, 118.1?in (3.00?m) |
| Contact Finish Thicknes. | -, Automotive, General . |
| Contact Length - Mating | 0.114" (2.90mm), 0.266". |
| Contact Length - Post | 0.114" (2.90mm), 0.510". |
| Contact Material | Polyester, Glass Filled. |
| Contact Plating Thickne. | 3.048 ?m |
| Contact Shape | Tin, Square |
| Contact Type | Male Pin, 0.100" (2.54m. |
| Current Rating | 3 A |
| Current Rating (Amps) | - |
| Description | CONN HEADER VERT 12POS . |
| Detailed Description | Connector Header Throug. |
| Digi-Key Part Number | WM8236-ND |
| Fastening Type | Latch Holder, 0.266" (6. |
| Features | - |
| Flammability Rating | UL 94V-0 |
| Hole Center to Center | 2.54 mm |
| Ingress Protection | UL94 V-0, - |
| Insulation Color | Black, - |
| Insulation Height | Square, 0.429" (10.90mm) |
| Insulation Material | Polyester, Glass Filled. |
| Manufacturer | Molex |
| Manufacturer Product Nu. | 0901301112 |
| Manufacturer Standard L. | 13 Weeks |
| Mated Stacking Heights | - |
| Material | Polyester |
| Material Flammability R. | UL94 V-0, Black |
| Max. Temp. | 235?C |
| Max. Voltage | 350V AC/DC |
| Mfr | Molex |
| Mounting Type | Solder, Through Hole |
| Number of Contacts | 12 |
| Number of Positions | 12, 2 |
| Number of Positions Loa. | All, Board to Cable/Wire |
| Number of Rows | 2, 0.100" (2.54mm) |
| Operating Temperature | - |
| Overall Contact Length | 0.510" (12.95mm), 0.429. |
| Package | Active, Tray |
| Package Quantity | 1 |
| Part Status | Header |
| Pitch - Mating | 12, 0.100" (2.54mm) |
| Product Status | Active |
| Row Spacing - Mating | All, 0.100" (2.54mm) |
| Series | Tray, C-Grid III 90130 |
| Shrouding | Through Hole, Shrouded . |
| Standards | CSA Certified; UL E29179 |
| Style | Board to Cable/Wire, Sh. |
| Terminal Finish | Tin Plated |
| Terminal Type | Through Hole |
| Termination | Latch Holder, Solder |
| Voltage Rating | - |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Waldom | MOLEX 90130-1112 | 0.71 | 75 | 17777 | | MOLEX | | 0.71 @ 100 |
| Onlinecomponents.com | 90130-1112 | 0.817 | 40 | 4626 | | Molex | | 0.817 @ 100 |
 | jensentools.com | 10198217 | 0.95 | 1 | 100 | | Molex | | 0.95 @ 100 |
 | TME | MX-90130-1112 | 1.1 | 1 | 150 | | MOLEX | | 1.1 @ 100 |
 | Newark | 01AH1800 | 1.13 | 1 | 100 | | MOLEX | | 1.13 @ 100 |
 | Digi-Key | 760948 | 1.18638 | 1 | 100 | | Molex | | 1.18638 @ 100 |
| RS Delivers | 670-3275P | 1.9836 | 1 | 230 | | Molex | | 1.9836 @ 100 |
 | Zoro | G2766413 | 146.25 | 75 | 100 | | Molex | | 146.25 @ 100 |
