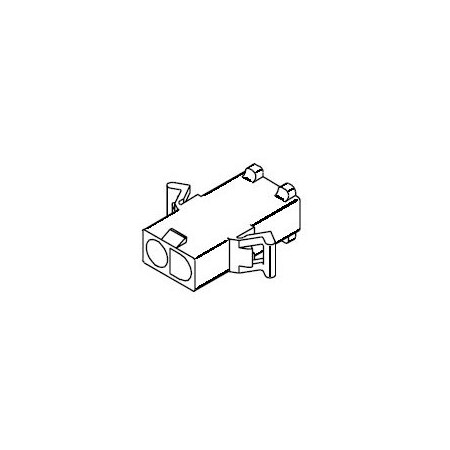

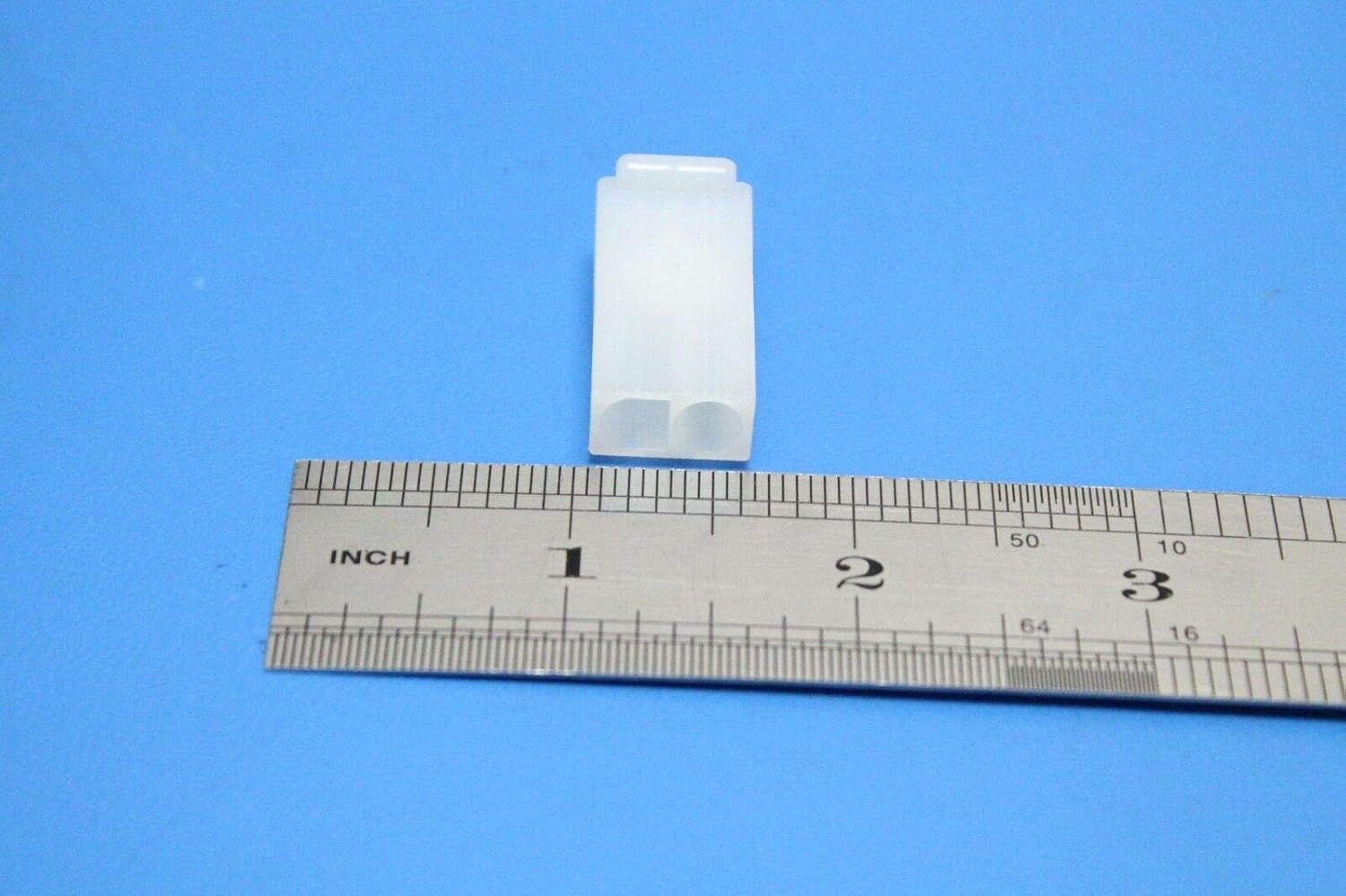

MOLEX 19-09-2029 Connector Housing Positive Latch UL 94V-2 Standard .093 3191 Series Plug 2 Positions 6.7 mm New Lot Quantity-40
Preferred Price:
1.51
Price:
1.51
Min Simple Price:
0.138
Absolute Min Price:
1.55
Min Price:
1.55
Dimensions:
[1.0, 1.0, 1.0]
qty:
548
simpleSku:
zk5MDI:::19092029
sku:
zk5MDI::7C:19092029@y0
condition:
11
seller:
Avnet
amzMan:
molex
HazMat:
False
DropShip:
False
Attributes
| Key | Value |
|---|---|
| Agency Approvals | CSA ; UL ; TUV |
| Alternate Mfr Part Number | 3191-2P1 |
| Alternate Part No. | 538-19-09-2029 |
| Angle | Straight |
| Brand | Molex |
| Category | Connectors, Interconnects |
| Circuits (maximum) | 2 |
| Color | Natural, - |
| Color - Resin | Natural |
| Connector Type | Male or Female |
| Contact Termination | Locking Ramp |
| Contact Type | 2, Pin, Socket |
| CSA | LR19980 |
| Current - Maximum per Contact | 12.0A |
| Current Rating | 12 A |
| Family Name | Standard .093" |
| Fastening Type | Natural |
| Features | Contacts Not Included |
| Flammability | 94V-2 |
| Flammability Rating | UL 94 V-2 |
| Gender | Plug |
| Housing Gender | Plug |
| Housing Material | Nylon |
| Lock to Mating Part | Yes |
| Manufacturer | Molex |
| Manufacturer Part No. | 19-09-2029 |
| Material - Resin | Nylon |
| Mfr | Molex |
| Mounting Type | Crimp |
| Note | 1 |
| Number of Circuits | 1 to 15 |
| Number of Contacts | 2 |
| Number of Positions | 0.264"" (6.71mm), 2 |
| Number of Rows | 1 |
| Operating Temperature | -40 to +105 ?C |
| Overall Length | 0.59 " |
| Package | Active |
| Package Quantity | 1 |
| Packaging | Bulk |
| Part # Aliases | 0019092029 3191-2P1 |
| Part Status | Plug |
| Pin Spacing | 0.264 in |
| Pitch | 6.7 mm, -, 6.70 mm (0.264") |
| Pitch - Mating Interface | 6.70mm |
| Polarized to Mating Part | Yes |
| Primary Type | Soft Shell |
| Product Category | Pin & Socket Connectors |
| Product Header | 3191 Series Pin and Socket Plug Housing |
| Product Type | Wire Housings |
| Row Spacing | Panel Mount |
| Series | Bulk, 3191 Series, 3191 |
| Special Features | Low-Halogen |
| Temperature Range - Operating | -40? to +105?C |
| Termination | Crimp |
| Tradename | Standard .093 in |
| Type | Plug Housing |
| UL | E29179 |
| Voltage Rating | 600 V |
All Prices
| Img | Seller | Supplier SKU | Requested Price | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Avnet | 0019092029 | 0.138 | 331.2828 | 6000 | 4297 | Molex | 0.138 @ Qty: 6000+ | |||
| Power and Signal Group | 0019092029 | 0.1823 | 437.62938 | 6000 | 548 | Molex | 0.1823 @ Qty: 6000+ | |||
| Waldom | MOLEX 19-09-2029 | 0.191 | 23.0346 | 300 | 34696 | MOLEX | 0.191 @ Qty: 300+ | |||
| Onlinecomponents.com | 19-09-2029 | 0.192 | 0.192 | 1 | 8669 | MOLEX / WALDOM | 0.192 @ Qty: 1+ | |||
| jensentools.com | 10155151 | 0.24 | 0.24 | 1 | 33210 | Molex | 0.24 @ Qty: 1+ | |||
 | Newark | 55H2681 | 0.26 | 0.26 | 1 | 11900 | MOLEX | 0.26 @ Qty: 1+ | ||
 | NEP Electronics | 19-09-2029 NATURAL | 0.35 | 2.31 | 15 | 30510 | Molex | 0.35 @ Qty: 15+ | ||
 | Digi-Key | WM4382-ND | 0.44 | 0.44 | 1 | 227 | Molex | 0.44 @ Qty: 1+ | ||
| Hotenda | H1474203 | 0.46 | 0.46 | 1 | 227 | Molex | 0.46 @ Qty: 1+ | |||
| MCM Electronics | 28-9470 | 0.49 | 0.49 | 1 | 548 | Molex | 0.49 @ Qty: 1+ | |||
| us.rs-online.com | 70190627 | 0.49149 | 1.277874 | 5 | 7066 | Molex Incorporated | 0.49149 @ Qty: 5+ | |||
 | swatee.com | 19-09-2029 | 0.67 | 0.67 | 1 | 5606 | Molex | 0.67 @ Qty: 1+ | ||
| RS Delivers | 236-3117 | 0.726 | 0.726 | 1 | 4515 | Molex | 0.726 @ Qty: 1+ | |||
| AmazonTP | B00OVEHA7C | 5.99 | 5.99 | 1 | 548 | 2 | MOLEX PREMISE NETWORKS | 5.99 @ Qty: 1+ | ||
 | AmazonSC | B00OVEHA7C | 12.12 | 12.12 | 1 | 548 | Molex | 12.12 @ Qty: 1+ | ||
 | Zoro | G4031779 | 150.0 | 150.0 | 1 | 548 | Molex | 150.0 @ Qty: 1+ |
