mpn:
brand:
manufacturer:
MPN:
Description:

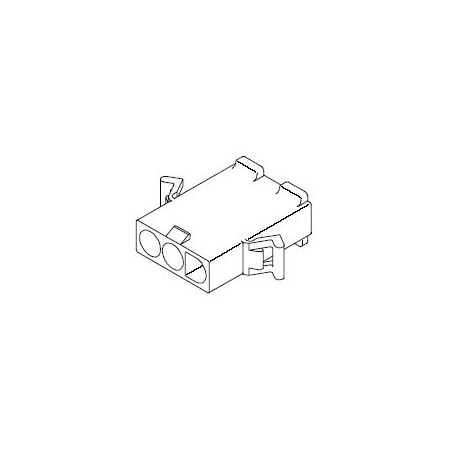

MOLEX - 19-09-2039 - PLUG & SOCKET HOUSING; PLUG; NYLON
Preferred Price:
1.62
Price:
1.62
Min Simple Price:
0.197
Absolute Min Price:
1.55
Min Price:
1.55
Dimensions:
[1.0, 1.0, 1.0]
qty:
328
simpleSku:
zk5MDI:::19092039
sku:
zk5MDI::IO:19092039@y0
condition:
11
seller:
Onlinecomponents.com
amzMan:
molex
HazMat:
False
DropShip:
False
Attributes
| Key | Value |
|---|---|
| Agency Approvals | CSA ; UL ; TUV |
| Alternate Mfr Part Number | 3191-3P1 |
| Alternate Part No. | 538-19-09-2039 |
| Angle | Straight |
| Base Product Number | 001909 |
| Brand | Molex |
| Category | Connectors, Interconnects |
| Circuits (maximum) | 3 |
| Circuits Detail | 1x3 |
| Color | Natural |
| Color - Resin | Natural |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Male or Female, Pin, Socket |
| CSA | LR19980 |
| Current - Maximum per Contact | 11.0A |
| Current Rating | 11 A |
| Description | CONN PLUG HSG 3POS 6.71MM |
| Detailed Description | 3 Rectangular Connectors - Housings Plug Natural 0.264" (6.71mm) |
| Digi-Key Part Number | WM4390-ND |
| Family Name | Standard .093" |
| Fastening Type | Locking Ramp |
| Features | - |
| Flammability | 94V-2 |
| Flammability Rating | UL 94 V-2 |
| Gender | Plug |
| Housing Gender | Plug |
| Housing Material | Nylon |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Lock to Mating Part | Yes |
| Manufacturer | Molex |
| Manufacturer Part No. | 19-09-2039 |
| Manufacturer Product Number | 0019092039 |
| Manufacturer Standard Lead Time | 8 Weeks |
| Material - Resin | Nylon |
| Mfr | Molex |
| Mounting Type | Panel Mount |
| Note | Contacts Not Included |
| Number of Circuits | 1 to 15 |
| Number of Contacts | 3 |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Operating Temperature | -40 to +105 ?C, -40?C ~ 105?C |
| Overall Length | 0.85 " |
| Package | Bulk |
| Packaging | Bulk |
| Part # Aliases | 0019092039 3191-3P1 |
| Pin Spacing | 0.264 in |
| Pitch | 0.264" (6.71mm), 6.7 mm, 6.70 mm (0.264") |
| Pitch - Mating Interface | 6.70mm |
| Polarized to Mating Part | Yes |
| Primary Type | Soft Shell |
| Product Category | Pin & Socket Connectors |
| Product Header | 3191 Series Pin and Socket Plug Housing |
| Product Status | Active |
| Product Type | Wire Housings |
| Row Spacing | - |
| Series | 3191 Series, 3191 |
| Special Features | Low-Halogen |
| Temperature Range - Operating | -40? to +105?C |
| Termination | Crimp |
| Tradename | Standard .093 in |
| Type | Plug Housing |
| UL | E29179 |
| Voltage Rating | 600 V |
All Prices
| Img | Seller | Supplier SKU | Requested Price | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Onlinecomponents.com | 19-09-2039 | 0.197 | 0.197 | 1 | 8666 | MOLEX / WALDOM | 0.197 @ Qty: 1+ | |||
| Waldom | MOLEX 19-09-2039 | 0.225 | 22.635 | 250 | 5872 | MOLEX | 0.225 @ Qty: 250+ | |||
| jensentools.com | 10155157 | 0.27 | 0.27 | 1 | 370 | Molex | 0.27 @ Qty: 1+ | |||
 | NEP Electronics | 19-09-2039 NATURAL | 0.2838 | 34.22628 | 300 | 7831 | Molex | 0.2838 @ Qty: 300+ | ||
 | Newark | 38C9045 | 0.304 | 1276.9824 | 10500 | 328 | MOLEX | 0.304 @ Qty: 10500+ | ||
 | Component Electronics | 707A-3P | 0.31 | 0.31 | 1 | 12 | Molex | 0.31 @ Qty: 1+ | ||
| Hotenda | H1471196 | 0.43 | 0.43 | 1 | 232 | Molex | 0.43 @ Qty: 1+ | |||
 | Digi-Key | 2421322 | 0.46 | 0.46 | 1 | 3209 | Molex | 0.46 @ Qty: 1+ | ||
| us.rs-online.com | 70190726 | 0.49995 | 0.49995 | 1 | 12952 | Molex Incorporated | 0.49995 @ Qty: 1+ | |||
 | swatee.com | 19-09-2039 | 0.59 | 0.59 | 1 | 878 | Molex | 0.59 @ Qty: 1+ | ||
| RS Delivers | 822-7868 | 0.648 | 0.648 | 1 | 6498 | Molex | 0.648 @ Qty: 1+ | |||
 | Zoro | G4032993 | 138.0 | 138.0 | 1 | 370 | Molex | 138.0 @ Qty: 1+ |
