mpn:
brand:
manufacturer:
MPN:
Description:

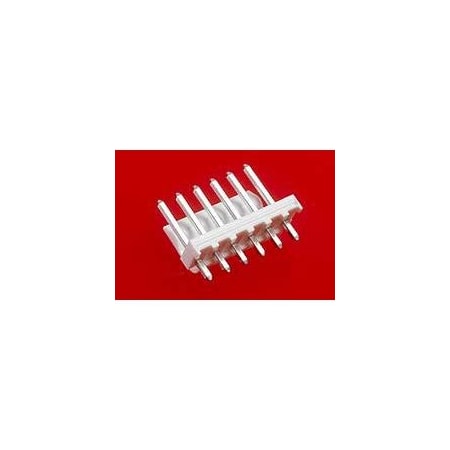

MOLEX 26-61-4050 | Socket; wire-board; male; KK 396; 3.96mm; PIN: 5; THT; 7A; Layout: 1x
Preferred Price:
9.38
Price:
9.38
Min Simple Price:
0.43114
Absolute Min Price:
7.05
Min Price:
7.05
Dimensions:
[1.0, 1.0, 1.0]
qty:
1
simpleSku:
zk5MDI:::26-61-4050
sku:
zk5MDI::96:26-61-4050@y1
condition:
11
seller:
Freelance Electronics
amzMan:
molex
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Alias | 26614050 |
| Alternate Mfr Part Number, Engineering PN | 41791-0022 |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Base Product Number | 002661 |
| Category | Connectors, Interconnects |
| Color, Insulation Color | Natural |
| Connector | socket |
| Connector series, Family Name | KK 396 |
| Connector Type | Header |
| Contact Finish - Mating, Plating Material | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 20.0?in (0.51?m) |
| Contact Finish Thickness - Post | 100.0?in (2.54?m) |
| Contact Length - Mating | 0.450" (11.43mm) |
| Contact Length - Post | 0.140" (3.56mm) |
| Contact Material, Current Rating (Amps), Features, Ingress Protection, Mated Stacking Heights, Operating Temperature, Row Spacing - Mating, Voltage Rating | - |
| Contact plating | gold-plated |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Contacts pitch | 3.96mm |
| Current Rating | 7 A |
| Description | CONN HEADER VERT 5POS 3.96MM |
| Detailed Description | Connector Header Through Hole 5 position 0.156" (3.96mm) |
| Digi-Key Part Number | WM5227-ND |
| Electrical mounting | THT |
| Fastening Type | Friction Lock |
| Flammability rating | UL94V-0 |
| Insulation Height | 0.446" (11.33mm) |
| Insulation Material | Polyester, Glass Filled |
| Kind of connector | male |
| Locking system | latch |
| Manufacturer Product Number | 0026614050 |
| Manufacturer Standard Lead Time | 19 Weeks |
| Manufacturer, Mfr | MOLEX |
| Material Flammability Rating | UL94 V-0 |
| Max. operating voltage | 250V |
| Maximum current | 7A |
| Mounting Type | Through Hole |
| Number of Circuits, Number of Contacts, Number of pins, Number of Positions | 5 |
| Number of Positions Loaded | All |
| Number of Rows, Package Quantity | 1 |
| Orientation | Vertical |
| Overall Contact Length | 0.720" (18.29mm) |
| Package | Bulk |
| Pitch | 3.96 mm (0.156") |
| Pitch - Mating | 0.156" (3.96mm) |
| Primary Type | Board Mount |
| Product Status | Active |
| Series | 41791 Series, KK396, 41791 |
| Shrouding | Shrouded - 1 Wall |
| Spatial orientation | straight |
| Special Features | Not Low-Halogen |
| Style | Board to Board or Cable |
| Termination | Solder |
| Type | Vertical Header |
| Type of connector | wire-board |
| Type of pin configuration | 1x5 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Freelance Electronics | 26-61-4050 | 0.43114 | 2.759296 | 1 | 10 | MOLEX | 0.43114 @ Qty: 10+ | |||
| Waldom | MOLEX 26-61-4050 | 0.48 | 31.68 | 150 | 8558 | MOLEX | 0.48 @ Qty: 150+ | |||
| Sager Electronics | 0026614050 | 0.536 | 3.4304 | 1 | 6388 | Molex | 0.536 @ Qty: 10+ | |||
| Power and Signal Group | 0026614050 | 0.569 | 731.734 | 3200 | 10 | Molex | 0.569 @ Qty: 3200+ | |||
 | jensentools.com | 10159388 | 0.64 | 4.096 | 1 | 7861 | Molex | 0.64 @ Qty: 10+ | ||
| Onlinecomponents.com | 26-61-4050 | 0.71 | 4.544 | 1 | 3347 | MOLEX / WALDOM | 0.71 @ Qty: 10+ | |||
| us.rs-online.com | 70373629 | 0.8832 | 5.65248 | 1 | 10 | Molex Incorporated | 0.8832 @ Qty: 10+ | |||
 | Newark | 71H2284 | 1.21 | 7.744 | 1 | 10 | MOLEX | 1.21 @ Qty: 10+ | ||
 | Digi-Key | 211050 | 1.407 | 9.0048 | 1 | 12815 | Molex | 1.407 @ Qty: 10+ | ||
| RS Delivers | 670-3083P | 1.944 | 12.4416 | 1 | 190 | Molex | 1.944 @ Qty: 10+ | |||
 | Radwell | 26-61-4050 | 4.0 | 25.6 | 1 | 10 | MOLEX | 4.0 @ Qty: 10+ | ||
 | Zoro | G2764718 | 132.0 | 8712.0 | 150 | 10 | Molex | 132.0 @ Qty: 150+ |
