mpn:
brand:
manufacturer:
MPN:
Preferred Price:
5.5
Price:
5.5
Min Simple Price:
0.452
Absolute Min Price:
4.28
Min Price:
4.28
Dimensions:
[1.0, 1.0, 1.0]
qty:
1
simpleSku:
zk5MDI:::39532-1004
sku:
zk5MDI::SU:39532-1004@x5
condition:
11
seller:
Arrow
amzMan:
molex
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Base Product Number | 039532 |
| Category | Connectors, Interconnects |
| Circuits (Loaded), Number of Circuits, Number of Positions, Positions Per Level | 4 |
| Color | Black |
| Contact Material | Brass |
| Contact Mating Finish | Tin |
| Contact Tail Length | 0.150" (3.81mm) |
| Current - IEC, Features, Ingress Protection, Plug Wire Entry, Screw Size, Torque - Screw, Wire Gauge or Range - AWG, Wire Gauge or Range - mm?, Wire Strip Length | - |
| Current - Maximum per Contact | 15.0A |
| Current - UL, Current Rating | 15 A |

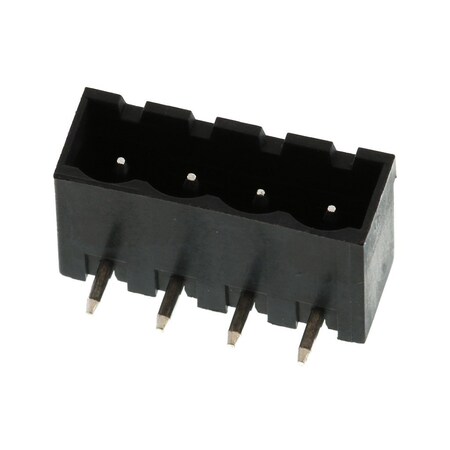

| Description | TERM BLOCK HDR 4POS 90DEG 5.08MM |
| Detailed Description | 4 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 90?, Right Angle Through Hole |
| Digi-Key Part Number | WM7847-ND |
| Duration at Max. Process Temperature (seconds) | 5 |
| Family Name | ESE |
| Header Orientation | 90?, Right Angle |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Insulation Height | 0.472" (12.00mm) |
| Lock to Mating Part, Polarized to Mating Part | Yes |
| Manufacturer Product Number | 0395321004 |
| Manufacturer Standard Lead Time | 12 Weeks |
| Manufacturer, Mfr | Molex |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Levels, Number of Rows | 1 |
| Operating Temperature | -40?C ~ 105?C |
| Orientation | Horizontal |
| Package | Bulk |
| Panel Mount, Stackable | No |
| PC Tail Length, Pitch - Mating Interface, Pitch - Termination Interface | 5.08mm |
| PCB Thickness - Recommended | 3.18mm |
| Pitch | 0.200" (5.08mm) |
| Process Temperature max. C | 260 |
| Product Status | Active |
| Series | 39532 Series, Eurostyle ESE 39532 |
| Shrouded | Closed Ends |
| Temperature Range - Operating | -40? to +105?C |
| Termination Style | Solder |
| Type | Header, Male Pins, Shrouded (4 Side) |
| UL | E48521 |
| Voltage - Maximum | 300V |
| Voltage - UL | 300 V |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Arrow | 0395321004 | 0.452 | 1.5368 | 1 | 1608 | Molex | 0.452 @ Qty: 5+ | |||
 | jensentools.com | 10188864 | 0.65 | 2.21 | 1 | 5 | Molex | 0.65 @ Qty: 5+ | ||
| Onlinecomponents.com | 39532-1004 | 0.699 | 16.077 | 50 | 28 | Molex | 0.699 @ Qty: 50+ | |||
| us.rs-online.com | 71457851 | 0.94581 | 2726.77023 | 7200 | 5 | Molex Incorporated | 0.94581 @ Qty: 7200+ | |||
| Hotenda | H1540072 | 1.04 | 3.536 | 1 | 5 | Molex | 1.04 @ Qty: 5+ | |||
| Newark | 03N6594 | 1.09 | 3.706 | 1 | 5 | MOLEX | 1.09 @ Qty: 5+ | |||
| Mouser | 538-39532-1004 | 1.12 | 3.808 | 1 | 1235 | Molex | 1.12 @ Qty: 5+ | |||
 | Digi-Key | 1280698 | 1.38 | 4.692 | 1 | 7415 | Molex | 1.38 @ Qty: 5+ | ||
 | Radwell | 39532-1004 | 1.4 | 362.6 | 640 | 5 | MOLEX | 1.4 @ Qty: 640+ | ||
 | Zoro | G005798190 | 99.19 | 337.246 | 1 | 5 | Molex | 99.19 @ Qty: 5+ |
