Molex / Waldom 47589-1001

mpn47589-1001
brandname: MOLEX
manufacturername: MOLEX

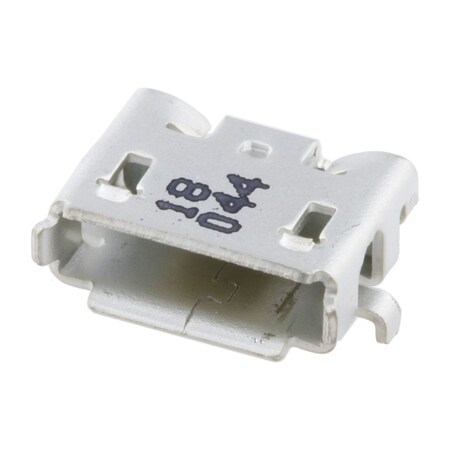

Molex / Waldom 47589-1001 Connector Audio and Video

Molex / Waldom 47589-1001 Connector Audio and Video

zoom

Brand: Molex / Waldom
PartNumber: 47589-1001
PackageQuantity: 1
Binding: Electronics
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Brand	MOLEX
Circuits (Loaded)	5
Circuits (maximum)	5
Color	Gray
Color - Resin	Gray
Connector	socket
Connector variant	bottom board mount
Contact plating	selectively gold plated
Current - Maximum per C.	1.8A, 1.0A
Durability (mating cycl.	10000
Duration at Max. Proces.	3
Electrical mounting	SMT
Features	Shielded
Flammability	94V-0
Gender	Jack (Female)
Grounding to Panel	Yes
Kind of package	reel
Manufacturer	MOLEX
Material - Metal	Copper Alloy
Material - Plating Mati.	Gold
Material - Plating Term.	Gold
Material - Resin	High Temperature Thermo.
Max. Cycles at Max. Pro.	1
Mechanical durability	10000 cycles
Mechanical mounting	on PCBs
Number of pins	5
Number of Rows	1
Orientation	Right Angle
Packaging	reel
Pitch - Mating Interface	0.65mm
Pitch - Termination Int.	0.65mm
Polarized to Mating Part	Yes
Process Temperature max.	245
Product	Micro USB Type AB Conne.
RoHS	Details
Series	47589, 47589 Series
Shield Type	Full Shield
Shielded	Yes
Spatial orientation	horizontal
Standard	USB
Surface Mount Compatibl.	Yes
Type	Type AB
Type of connector	USB AB micro
UL	E107635
Voltage - Maximum	30V AC (RMS)

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Waldom	MOLEX 47589-1001	0.42	1500	7500		MOLEX		0.42 @ 1500
	Onlinecomponents.com	47589-1001	0.456	1500	900		Molex		0.456 @ 1500
	jensentools.com	10190554	0.56	1	50		Molex		0.56 @ 50
	iodParts	47589-1001	0.609	500	1500		Molex		0.609 @ 500
	RS Delivers	178-9921	0.6744	1	1500		Molex		0.6744 @ 50
	Newark	01AH8476	0.675	1500	50		MOLEX		0.675 @ 1500
	TME	MX-47589-1001	0.725	3	50		MOLEX		0.725 @ 50
	Radwell	47589-1001	0.8	10500	50		MOLEX		0.8 @ 10500
	Avnet	26AH0774	0.814	1	3069		Molex		0.814 @ 50
	us.rs-online.com	71463719	1.05875	1	50		Molex Incorporated		1.05875 @ 50
	AmazonTP	B07QMYMX24	86.58	1	50	1	Molex / Waldom		86.58 @ 50
	Zoro	G4037963	870.0	1	50		Molex		870.0 @ 50
