Molex / Waldom 503395-0710

B07QM9X952

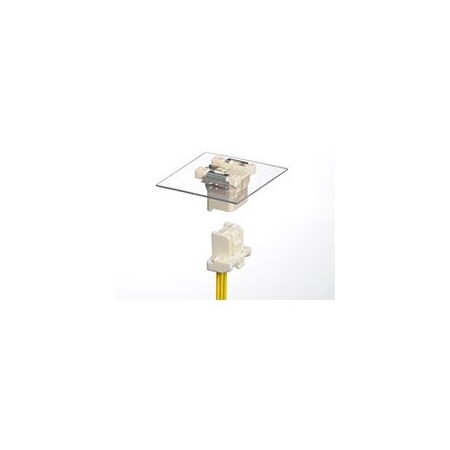

503395-0710, 1.50mm Pitch CLIK-Mate Wire-to-Board PCB Receptacle, Single Row, SMT, Bottom Entry, 7 Circuits (50 Items)

503395-0710, 1.50mm Pitch CLIK-Mate Wire-to-Board PCB Receptacle, Single Row, SMT, Bottom Entry, 7 Circuits (50 Items)zoom

Attributes

Key Value
Alternate Mfr Part Numb.503395-0710
ApplicationSignal ; Wire-to-Board
ApplicationsAutomotive, General Pur.
Base Product Number503395
CategoryConnectors, Interconnec.
ColorBeige
Connector TypeReceptacle
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.39.4?in (1.00?m)
Contact Finish Thicknes.39.4?in (1.00?m)
Contact Length - Post-
Contact MaterialCopper Alloy
Contact Shape-
Contact TypeForked
Country of Origin (subj.Japan
Current Rating2 A
Current Rating (Amps)-
Family NameCLIK-Mate
Fastening TypeLatch Holder
FeaturesSolder Retention
Ingress Protection-
Insulation ColorBeige
Insulation Height0.350" (8.89mm)
Insulation MaterialPolyamide (PA46), Nylon.
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrMolex
Mounting TypeSurface Mount
Number of Circuits7
Number of Contacts7
Number of Positions7
Number of Positions Loa.All
Number of Rows1
Operating Temperature-40?C ~ 105?C
OrientationBottom Entry
PackageTape & Reel (TR)
Pitch1.25 mm (0.049")
Pitch - Mating0.059" (1.50mm)
Plating MaterialTin
Primary TypeBoard Mount
Product StatusActive
Row Spacing - Mating-
SeriesCLIK-Mate 503395, 50339.
Special FeaturesNot Low-Halogen
StyleBoard to Cable/Wire
TerminationSolder, Surface Mount
TypeReceptacle
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
RS Online82804900.394550Molex0.394 @ 50
Onlinecomponents.com503395-07100.7113554MOLEX / WALDOM0.71 @ 50
Verical503395-07100.926003000Molex0.92 @ 600
thumbzoomjensentools.com101916671.19150Molex1.19 @ 50
Newark78R22601.26240050MOLEX1.26 @ 2400
thumbzoomZoroG78044801.3760050Molex1.37 @ 600
Digi-Key28191491.5722360050117Molex1.57223 @ 600
Mouser538-503395-07101.641496Molex1.64 @ 50
us.rs-online.com705463221.9150Molex Incorporated1.9 @ 50
