Woodhead / Molex 503552-1822

B09C125KKD

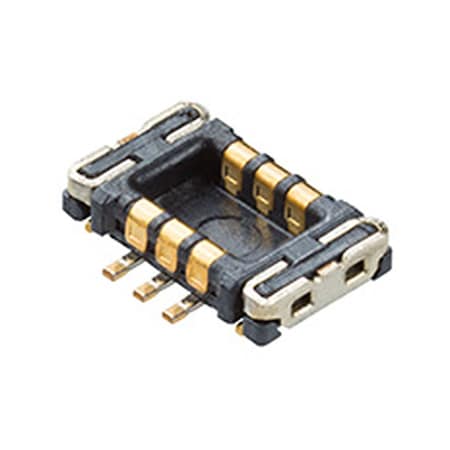

503552-1822,Conn Board to Board PL 18 POS 0.4mm Solder ST Top Entry SMD SlimStack T/R (7000 Items)

503552-1822,Conn Board to Board PL 18 POS 0.4mm Solder ST Top Entry SMD SlimStack T/R (7000 Items)zoom

Attributes

Key Value
ApplicationBoard-to-Board, Signal
BreakawayNo
CategoryConnectors, Interconnec.
Circuits (maximum)18
Color - ResinBlack
Current - Maximum per C.0.3A
Description0.4 B/B HRF 18CKT PLUG .
Detailed DescriptionPosition Connector
Digi-Key Part Number2266-503552-1822-ND
Durability (mating cycl.30
ManufacturerMolex
Manufacturer Product Nu.503552-1822
Mated Height0.70mm
Mated Width2.60mm
Material - MetalCopper Alloy
Material - Plating Mati.Gold
Material - Plating Term.Gold
MfrMolex
Number of Rows2
OrientationVertical
PackageBox
PCB LocatorNo
PCB RetentionYes
Pitch - Mating Interface0.40mm
Polarized to Mating PartNo
Polarized to PCBNo
Product NameSlimStack
Product StatusActive
Series*, 503552
Series NameHRF
Temperature Range - Ope.-40? to +85?C
Termination Interface: .Surface Mount
Voltage - Maximum50V AC (RMS)/DC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Newark44AJ79580.77570007000MOLEX0.775 @ 7000
thumbzoomjensentools.com101917340.7917000Molex0.79 @ 7000
thumbzoomDigi-Key147267260.791714285714700014000Molex0.791714285714 @ 7000
thumbzoomZoroG9004428775880.017000Molex5880.0 @ 7000
