Molex 532580229

B00GQR4ZFW

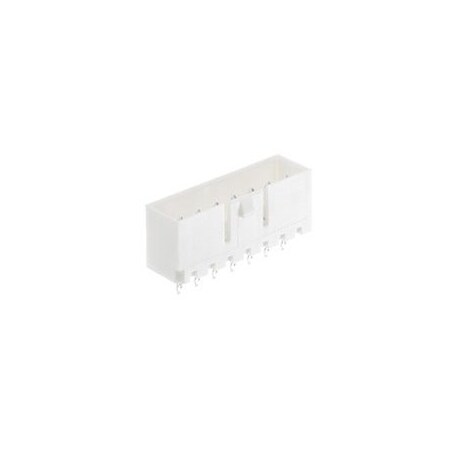

Molex / Waldom 53258-0229 Connector Headers and PCB Receptacles

Molex / Waldom 53258-0229 Connector Headers and PCB Receptacleszoom

Attributes

Key Value
Allowable Current(A)5.5
Circuits (Loaded)2
Circuits (maximum)2
Color - ResinNatural
Connector ShapeSquare
Current - Maximum per C.5.5A
Durability (mating cycl.30
Flammability94V-0
Guide to Mating PartYes
Lock to Mating PartYes
Material - MetalBrass
Material - Plating Mati.Tin
Material - Plating Term.Tin
Material - ResinPolyester
Mating partner51067
Number of Rows1
OrientationVertical
PC Tail Length3.50mm
PCB Thickness - Recomme.1.60mm
Pitch - Mating Interface3.50mm
Plating min - Mating1.016?m
Plating min - Terminati.1.016?m
ShroudedFully
Temperature Range - Ope.-40? to +105?C
Termination Interface: .Through Hole
ULE29179
Voltage - Maximum250V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNewark01AH14150.165117925MOLEX0.165 @ 5
WaldomMOLEX 53258-02290.23725060807MOLEX0.237 @ 250
Onlinecomponents.com53258-02290.26816727MOLEX / WALDOM0.268 @ 5
thumbzoomTMEMX-53258-02290.3110707MOLEX0.31 @ 10
RS Delivers797-8900P0.631211420Molex0.6312 @ 5
thumbzoomRadwell53258-02290.8105MOLEX0.8 @ 10
thumbzoomMisumi USA53258-02290.9315Molex0.93 @ 5
thumbzoomZoroG2090049110.02505Molex110.0 @ 250
