Molex / Waldom 70541-0072

B00GQRH06I

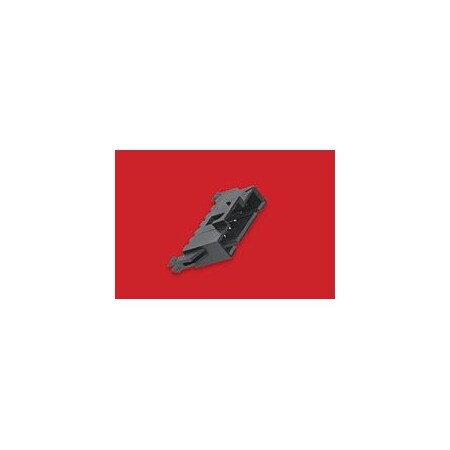

Molex / Waldom 70541-0072 Connector Headers and PCB Receptacles

Molex / Waldom 70541-0072 Connector Headers and PCB Receptacleszoom

Attributes

Key Value
Alternate Part No.538-70541-0072
ApplicationsAutomotive, General Pur.
Base Product Number070541
BrandMolex
CategoryConnectors, Interconnec.
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thicknes.30.0?in (0.76?m)
Contact Finish Thicknes.74.8?in (1.90?m)
Contact Length - Mating0.240" (6.10mm)
Contact Length - Post0.130" (3.30mm)
Contact MaterialPhosphor Bronze
Contact PlatingGold
Contact ShapeSquare
Contact TypeMale Pin
Current Rating3 A
Current Rating (Amps)3A
DescriptionCONN HEADER VERT 3POS 2.
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberWM14051-ND
Fastening TypeLatch Holder
FeaturesBoard Lock
Housing MaterialPolyester
Ingress Protection-
Insulation ColorBlack
Insulation Height0.465" (11.80mm)
Insulation MaterialPolyester, Glass Filled
ManufacturerMolex
Manufacturer Part No.70541-0072
Manufacturer Product Nu.0705410072
Manufacturer Standard L.19 Weeks
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrMolex
Mounting TypeThrough Hole
Number of Positions3
Number of Positions Loa.All
Number of Rows1
Operating Temperature-40?C ~ 105?C
Overall Contact Length0.470" (11.94mm)
PackageBulk
Package Quantity1
PackagingTube
Part # Aliases0705410072
Pitch2.54 mm
Pitch - Mating0.100" (2.54mm)
Product CategoryHeaders & Wire Housings
Product StatusActive
Product TypeHeaders
Row Spacing - Mating-
Series70541, SL 70541
ShroudingShrouded - 4 Wall
StyleBoard to Cable/Wire
TerminationSolder
Termination StyleThrough Hole
TradenameSL
TypeShrouded
Voltage Rating250V, 250 V
