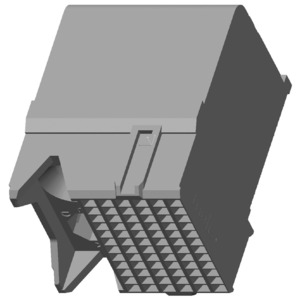

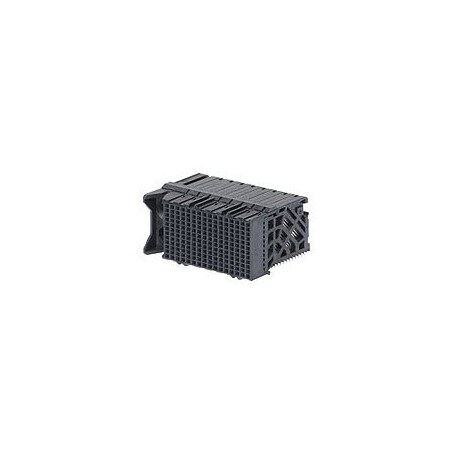

76160-3036, Impact 100 Ohm 4 Pair Right Angle Daughtercard Receptacle, 1.90 by 1.35mm Pitch, Left Guided, 6 Columns, 72 Circuits, Plated (5 Items)

76160-3036, Impact 100 Ohm 4 Pair Right Angle Daughtercard Receptacle, 1.90 by 1.35mm Pitch, Left Guided, 6 Columns, 72 Circuits, Plated (5 Items)zoom

Attributes

Key Value
CategoryConnectors, Interconnec.
ColorBlack
Connector StyleImpact, Guide Left
Connector TypeReceptacle, Female Sock.
Connector Usage-
Contact FinishGold Plated, Gold
Contact Finish Thickness30.0?in (0.76?m)
Contact Layout, Typical24 Differential Pairs
Contact Plating Thickne.0.762 ?m
Current Rating0.75 A
Current Rating (Amps)-
DescriptionIMPACT DC 4X6 GL SN
Detailed Description72 Connector Receptacle.
Digi-Key Part Number2266-76160-3036-ND
Family NameImpact
FeaturesBoard Guide
Flammability RatingUL 94V-0
Hole Center to Center1.9 mm
Impedance100 Ohm
ManufacturerMolex
Manufacturer Product Nu.76160-3036
MaterialHigh Temperature Thermo.
Material Flammability R.UL94 V-0
Max. Temp.85?C
Max. Voltage30V AC/DC
MfrMolex
Mounting TypeBoard Edge, Through Hol.
Number of Circuits72
Number of Columns6
Number of Contacts72
Number of Pairs4
Number of Positions72
Number of Positions Loa.All
Number of Rows12
Operating Temperature-55?C ~ 85?C, -55 - 85 C
OrientationRight Angle
PackageBox
Package Quantity1
Pitch0.053" (1.35mm)
Plating MaterialGold
Primary TypeImpact Backplane Connec.
Product StatusActive
SeriesImpact 76160, 76160 Ser.
StandardsUL E29179
Temperature Range-55 to 85 C
Terminal FinishTin Plated
Terminal TypeThrough Hole - Complian.
TerminationThrough Hole, Press-Fit
TypePCB Receptacle
Voltage Rating30V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomMOLEX 76160-30367.01098MOLEX7.0 @ 10
thumbzoomjensentools.com101967529.33198Molex9.33 @ 1
thumbzoomZoroG5059265369.6910In StockMolex9.69 @ 10
Newark05W943410.02504In StockMOLEX10.02 @ 504
thumbzoomDigi-Key1473152210.881098Molex10.88 @ 10
us.rs-online.com7146604212.581In StockMolex Incorporated12.58 @ 1
