mpn:
brand:
manufacturer:
MPN:
Description:

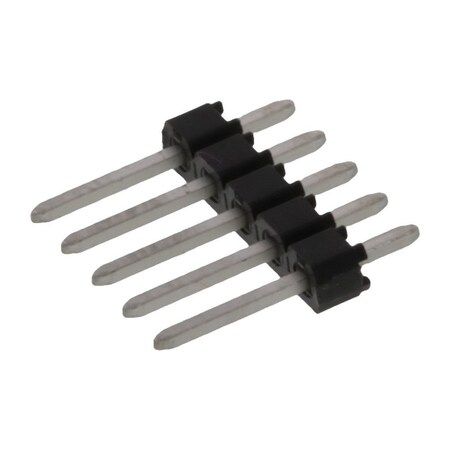

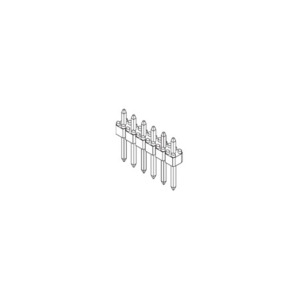

MOLEX 901200125 | Pin header; pin strips; C-Grid III; male; PIN: 5; straight; 2.54m
Preferred Price:
1.79
Price:
1.79
Min Simple Price:
0.281
Absolute Min Price:
1.61
Min Price:
1.61
Dimensions:
[1.0, 1.0, 1.0]
qty:
327
simpleSku:
jE2NzQ:::901200125
sku:
jE2NzQ::VO:901200125@y0
condition:
11
seller:
Waldom
amzMan:
molex
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Alternate Part No. | 538-90120-0125 |
| Applications | Automotive, General Purpose |
| ASIN | B00HKID4YY |
| Base Product Number | 090120 |
| Brand, Manufacturer, Mfr | Molex |
| Category | Connectors, Interconnects |
| Color, Insulation Color | Black |
| Connector Type | Header, Breakaway |
| Contact Finish - Mating, Contact Finish - Post, Contact Plating | Tin |
| Contact Finish Thickness - Mating | 118.1?in (3.00?m) |
| Contact Finish Thickness - Post, Current Rating (Amps), Features, Ingress Protection, Mated Stacking Heights, Row Spacing - Mating, Voltage Rating | - |
| Contact Finish, Terminal Finish | Tin Plated |
| Contact Length - Mating | 0.266" (6.75mm) |
| Contact Length - Post | 0.114" (2.90mm) |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 3 A |
| Description | CONN HEADER VERT 5POS 2.54MM |
| Detailed Description | Connector Header Through Hole 5 position 0.100" (2.54mm) |
| Digi-Key Part Number | WM8075-ND |
| Fastening Type | Push-Pull |
| Features, Type | Breakaway |
| Flammability Rating | UL 94V-0 |
| Hole Center to Center, Pitch | 2.54 mm |
| Housing Material, Material | Polyester |
| Insulation Height | 0.098" (2.50mm) |
| Insulation Material | Polyester, Glass Filled |
| Item model number, Manufacturer Part No. | 90120-0125 |
| Manufacturer Product Number, Part # Aliases | 0901200125 |
| Manufacturer Standard Lead Time | 17 Weeks |
| Material Flammability Rating | UL94 V-0 |
| Max. Temp. | 230?C |
| Max. Voltage | 350V AC/DC |
| Mounting Angle | Vertical |
| Mounting Type, Terminal Type, Termination Style | Through Hole |
| Number of Contacts, Number of Positions | 5 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature | -55?C ~ 125?C |
| Overall Contact Length | 0.478" (12.15mm) |
| Package | Bulk |
| Packaging | Tray |
| Pitch - Mating | 0.100" (2.54mm) |
| Product Category | Headers & Wire Housings |
| Product Status | Active |
| Product Type | Headers |
| Series | C-Grid III 90120, 90120 |
| Shrouding | Unshrouded |
| Standards | CSA Certified; UL E29179 |
| Style | Board to Board or Cable |
| Termination | Solder |
| Tradename | C-Grid |
| Voltage Rating | 350 VAC/DC |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Waldom | MOLEX 90120-0125 | 0.281 | 30.91 | 200 | 10820 | MOLEX | 0.281 @ Qty: 200+ | |||
| Avnet | 0901200125 | 0.296 | 8.9984 | 1 | 8848 | Molex | 0.296 @ Qty: 50+ | |||
| Power and Signal Group | 0901200125 | 0.3055 | 375.765 | 3000 | 50 | Molex | 0.3055 @ Qty: 3000+ | |||
| Onlinecomponents.com | 90120-0125 | 0.356 | 24.92 | 100 | 3285 | Molex | 0.356 @ Qty: 100+ | |||
 | jensentools.com | 10198126 | 0.37 | 11.248 | 1 | 50 | Molex | 0.37 @ Qty: 50+ | ||
 | TME | MX-90120-0125 | 0.42 | 13.44 | 5 | 4687 | MOLEX | 0.42 @ Qty: 50+ | ||
 | Newark | 93K6432 | 0.578 | 17.5712 | 1 | 50 | MOLEX | 0.578 @ Qty: 50+ | ||
 | Digi-Key | 760790 | 0.67 | 20.368 | 1 | 50 | Molex | 0.67 @ Qty: 50+ | ||
 | Component Electronics | 640A-5AA | 0.69 | 20.976 | 1 | 3668 | Molex | 0.69 @ Qty: 50+ | ||
| RS Delivers | 670-5035 | 0.9456 | 28.74624 | 1 | 65 | Molex | 0.9456 @ Qty: 50+ | |||
 | swatee.com | 90120-0125 | 1.14 | 34.656 | 1 | 2739 | Molex | 1.14 @ Qty: 50+ | ||
| AmazonSC | B00HKID4YY | 8.25 | 250.8 | 1 | 50 | MOLEX | 8.25 @ Qty: 50+ | |||
 | Zoro | G500442635 | 96.0 | 2918.4 | 1 | 50 | Molex | 96.0 @ Qty: 50+ |
